Ilsco CLNS-500-58 Compression Lug 500 MCM 5/8 inches

Product Description

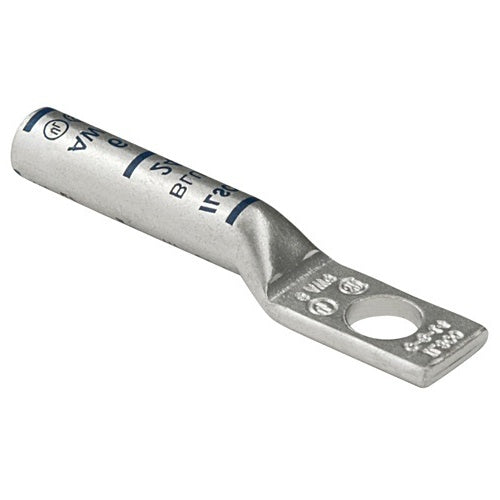

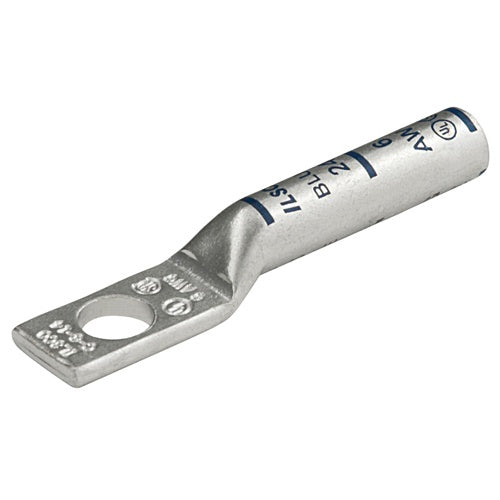

The ILSCO CLNS-500-58 is a Surecrimp copper compression lug for 500 kcmil conductors, featuring a 1-hole design and a 5/8in bolt size. It has a long barrel with tin plating and is UL and CSA approved. Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used.

• Electro-tin plated for corrosion resistance
• Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
• UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility

Product Highlights

This copper compression lug is manufactured from high strength seamless copper tubing with a chamfered entry for ease of conductor insertion.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLNS-500-58

Technical Specifications

• Material: Copper
• Mounting: 1-Hole
• Volts AC: 600
• Allowable Gauge Range: 500
• Stud Size: 5/8 in
• MPN: CLNS-500-58
• Brand: Ilsco
• UPC: 783669645262
• Condition: New
• Component: Compression Lug
• Manufacturer: Ilsco
• Conductor Type: Solid
• Connector Finish: Tin
• Bolt Size: 5/8"
• Wire Gauge: 500 MCM
