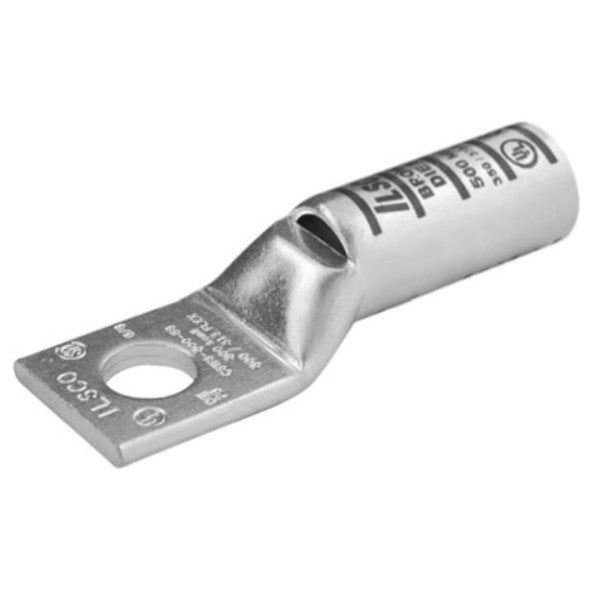

ILSCO CLNS-500-12 ILSCO SureCrimp CLNS 1-Hole Compression Lug Without Sight Hole 500 kcmil 1/2 in Stud

Product Description

The ILSCO SureCrimp CLNS-500-12 is a compression lug designed for electrical connections. This component is made from seamless copper tubing that is electro tin plated for durability. It is suitable for conductor sizes of five hundred kcmil and has a stud size of one-half inch. This lug provides efficient conductivity and excellent crimping characteristics.

• Manufactured from high strength seamless copper tubing
• Designed for circuits rated up to 35KV
• Application versatility with reduced inventory requirements

Product Highlights

This compression lug is designed to offer easy conductor insertion and identifies the appropriate compression die. It features a chamfered entry with color coding for easy identification.

Product Information

Standard Information

• Brand: ILSCO
• MPN: CLNS-500-12

Technical Specifications

• Barrel Size: 2-1/4 in L
• Barrel Style: Long
• Color: Brown
• Material: Copper
• Country of Origin: US
• Stud Size: 1/2 in
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Mfg Standards/Approvals: UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant
