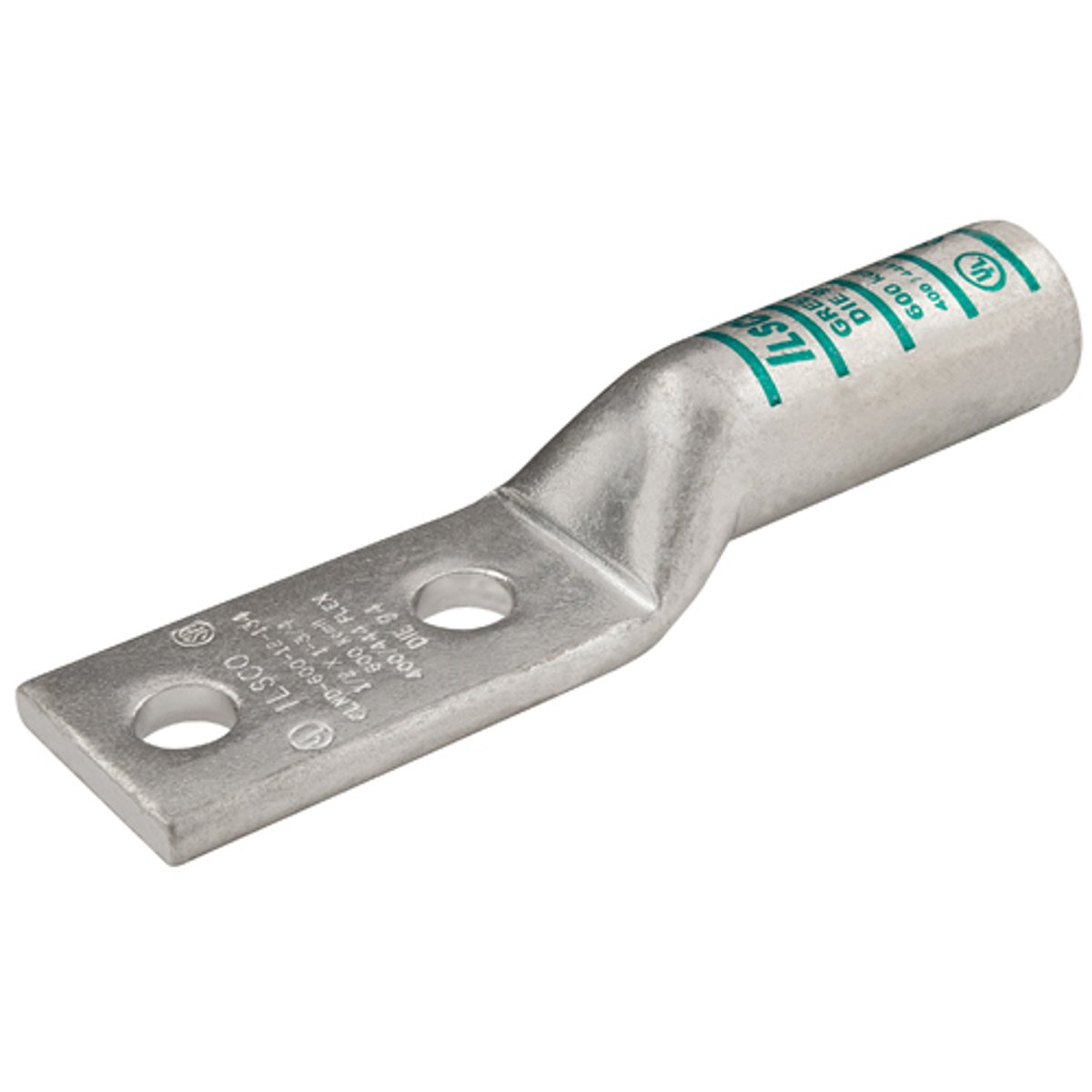

ILSCO CLND-600-12-134 Surecrimp Copper Compression Lug 600 KCMIL 2 Holes 1/2in Bolt Size

Product Description

ILSCO CLND-600-12-134 is a compression lug designed for 600 KCMIL conductors. This product features a long barrel for better crimping and conductivity. It includes two holes with a half-inch bolt size and a spacing of one and three-quarter inches. The lug is tin-plated and UL listed for safety and reliability.

• Manufactured from high-strength seamless copper tubing.
• Chamfered entry for easy conductor insertion.
• Suitable for high voltage applications up to thirty-five kV.

Product Highlights

This compression lug provides maximum conductivity and excellent crimping characteristics. Its color-coded design helps identify the proper compression die.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLND-600-12-134
• Conductor Size: 600 KCMIL
• Barrel Length: 2.687 inches
• Stud Size: 1/2 inches
• Pad Hole Spacing: 1-3/4 inches
• Material: Seamless Electro-Tin Plated Copper
• UL Approval: UL 453G, UL 467
• Country of Origin: United States
