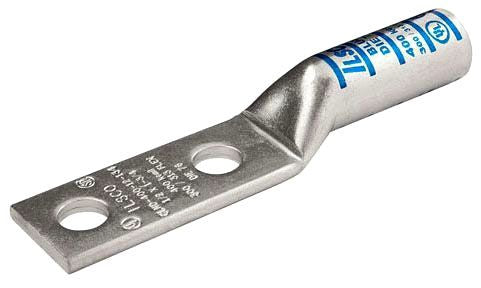

Ilsco CLND-6-14-58 Surecrimp Copper Compression Lug, Conductor Size 6, 2 Holes, 1/4in Bolt Size, 5/8in Hole Spacing

Product Description

Ilsco CLND-6-14-58 is a copper compression lug designed for conductor size six. This product features a long barrel construction with two holes for secure attachment. The lug is suitable for applications requiring a bolt size of one-fourth inch with hole spacing of five-eighths inches.

• Manufactured from high-strength seamless copper tubing.
• UL listed and CSA certified.
• Suitable for use in high voltage applications up to thirty-five kilovolts when properly installed.

Product Highlights

This compression lug provides excellent conductivity and low contact resistance. Its chamfered entry allows for easy conductor insertion, making it practical for various applications.

Product Information

Standard Information

• Catalog Number: CLND-6-14-58
• Brand: Ilsco
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 6 AWG
• Barrel Length: 1.125 inches
• Pad Hole Spacing: 5/8 inches
• Stud Size: 1/4 inch
• Country of Origin: India
• UPC: 783669629422
• Cross Reference Products: ABBInstall 54852, Anderson VHCL614B, Burndy YA6C-2
