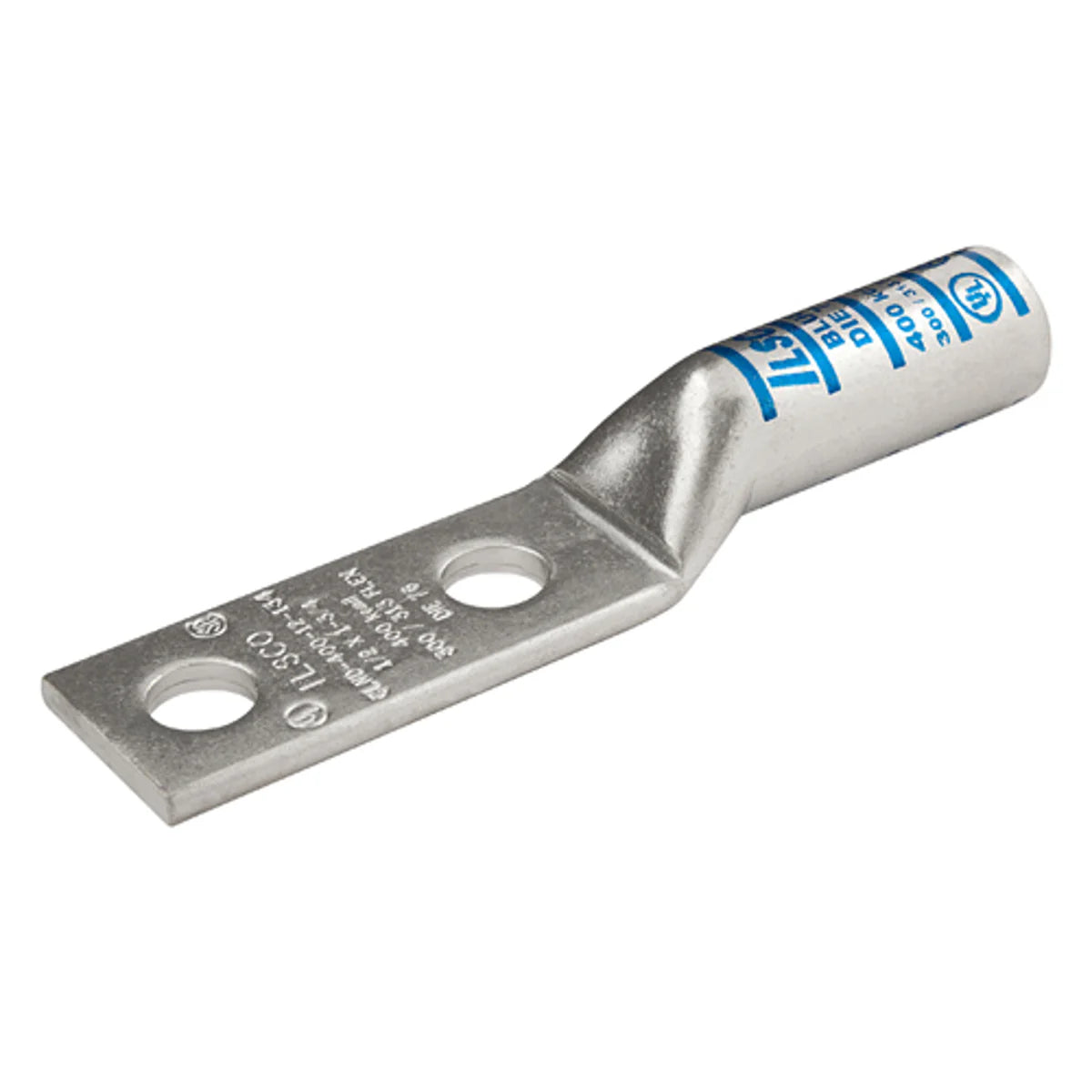

Ilsco CLND-400-12-134 400 MCM Copper Compression Lug

Product Description

The ILSCO CLND-400-12-134 is a copper compression lug designed for heavy-duty applications. This product suits 400 kcmil conductors and features two bolt holes with a spacing of one and three-quarters inches. The lug has a long barrel for effective crimping and is tin-plated for corrosion resistance.

• Designed for 400 kcmil conductor size.
• Two bolt holes with one and three-quarters inch spacing.
• UL and CSA certified for high electrical safety standards.

Product Highlights

This compression lug provides excellent conductivity and crimping characteristics, suitable for both residential and industrial use.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLND-400-12-134
• Material: Seamless Electro-Tin Plated Copper
• Diameter Hole Size: 1/2 inch
• Pad Holes: 2
• Barrel Length: 2.125 inches
• Stud Size: 1/2 inch
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Country of Origin: United States
