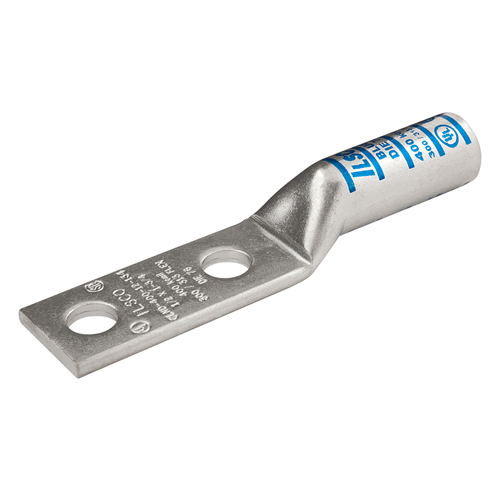

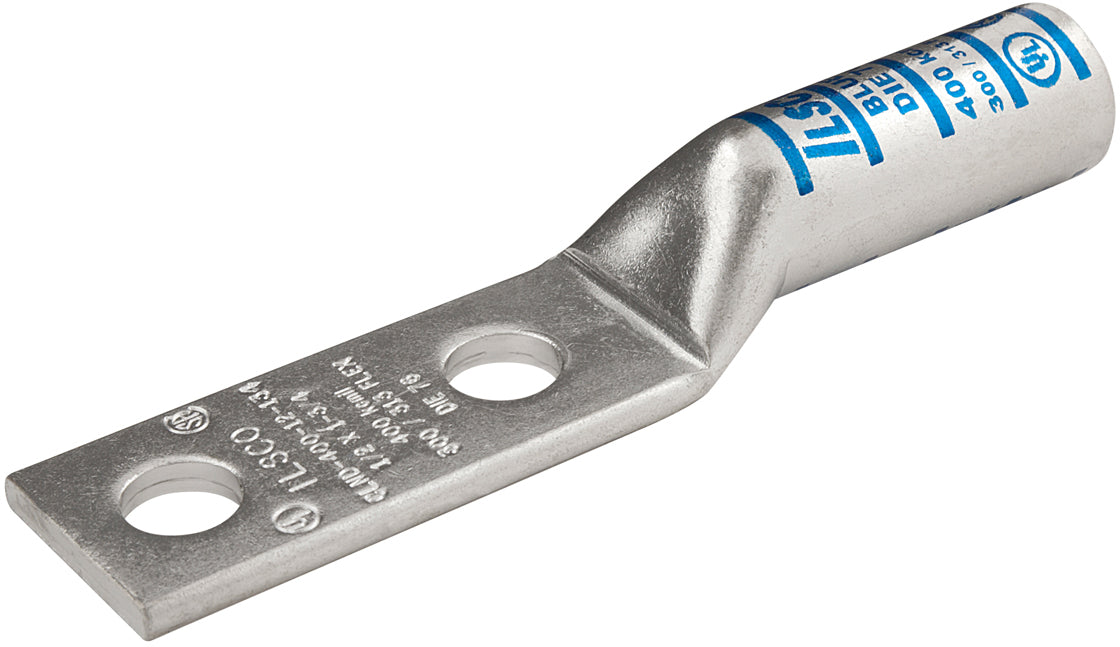

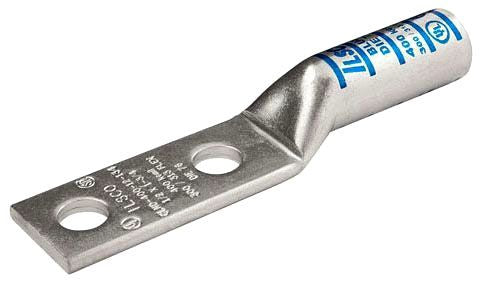

Ilsco CLND-4/0-38-1 SureCrimp Copper Compression Lug 4/0 2 Holes 3/8in Bolt Size

Product Description

The Ilsco CLND-4/0-38-1 is a copper compression lug suitable for conductor sizes of four aught. It features two holes designed for three eighths inch bolts with a spacing of one inch. This product is ideal for effective grounding and electrical connections in various applications.

• Conductor size: 4/0 AWG
• Voltage rating: 35,000 volts
• Material: Electro-tin plated copper

Product Highlights

The CLND-4/0-38-1 offers a long barrel construction without a sight window, making it a reliable choice for electricians and utility professionals.

Product Information

Standard Information

• Catalog Number: CLND-4/0-38-1
• Brand: Ilsco

Technical Specifications

• Overall Length: 3.928 inches
• Width: 0.999 inches
• Height: 0.727 inches
• Barrel Length: 1.5 inches
• Pad Hole Spacing: 1 inch
• Number of Holes: 2
• Temperature Rating: 90 degrees C
