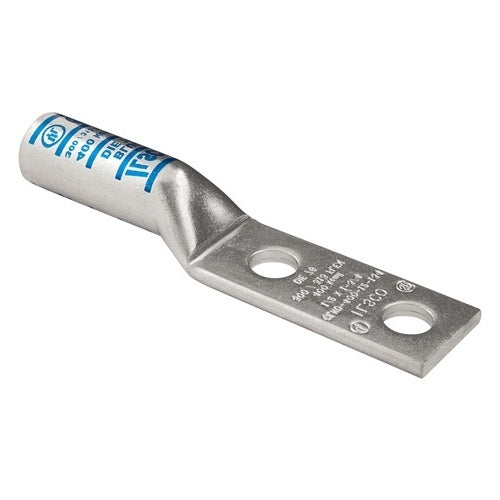

Ilsco CLND-350-38-134 SureCrimp Copper Compression Lug 350 2 Holes

Product Description

The ILSCO CLND-350-38-134 SureCrimp copper compression lug accommodates a conductor size of 350 and features 2 holes with a 3/8in bolt size and 1-3/4in hole spacing. Constructed from copper, this long barrel lug is tin plated and suitable for applications up to 35kV with proper insulation. It is UL and CSA certified and meets NEBS Level 3 requirements.

• Copper Compression Lug
• Conductor Size 350
• 2 Holes

Product Highlights

This copper compression lug features a long barrel, no sight window, and is tin plated for corrosion resistance.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLND-350-38-134
• Country of Origin: US - United States

Technical Specifications

• Brand: Ilsco
• Voltage: 35000 Volt
• Material: Copper
• Bolt Size: 3/8 IN
• Sub Brand: Surecrimp
• Applications: Copper Compression Lug
• Temperature Rating: 90 degrees C
• Series: CLND
• Finish: Tin-Plated
• Use With: Copper Conductor
• Stud Size: 3/8 in.
• Stud Hole Spacing: 1-3/4 in.
• Length: 5.248 in.
• Height: 0.93 in.
• Width: 1.291 in.
• Conductor Type: Stranded
• Wire Gauge: 350 MCM
• Barrel Size: 2 in L
• Barrel Type: Chamfered/Long
• Conductor Size: 3/0 AWG to 350 kcmil
• Die Code: 71
• Mounting Hole Size: 0.406 in Dia
• Overall Length: 5.248 in
• Tongue Size: 2.625 in L x 1.291 in W x 0.187 in THK
• Voltage Rating: 600 VAC
