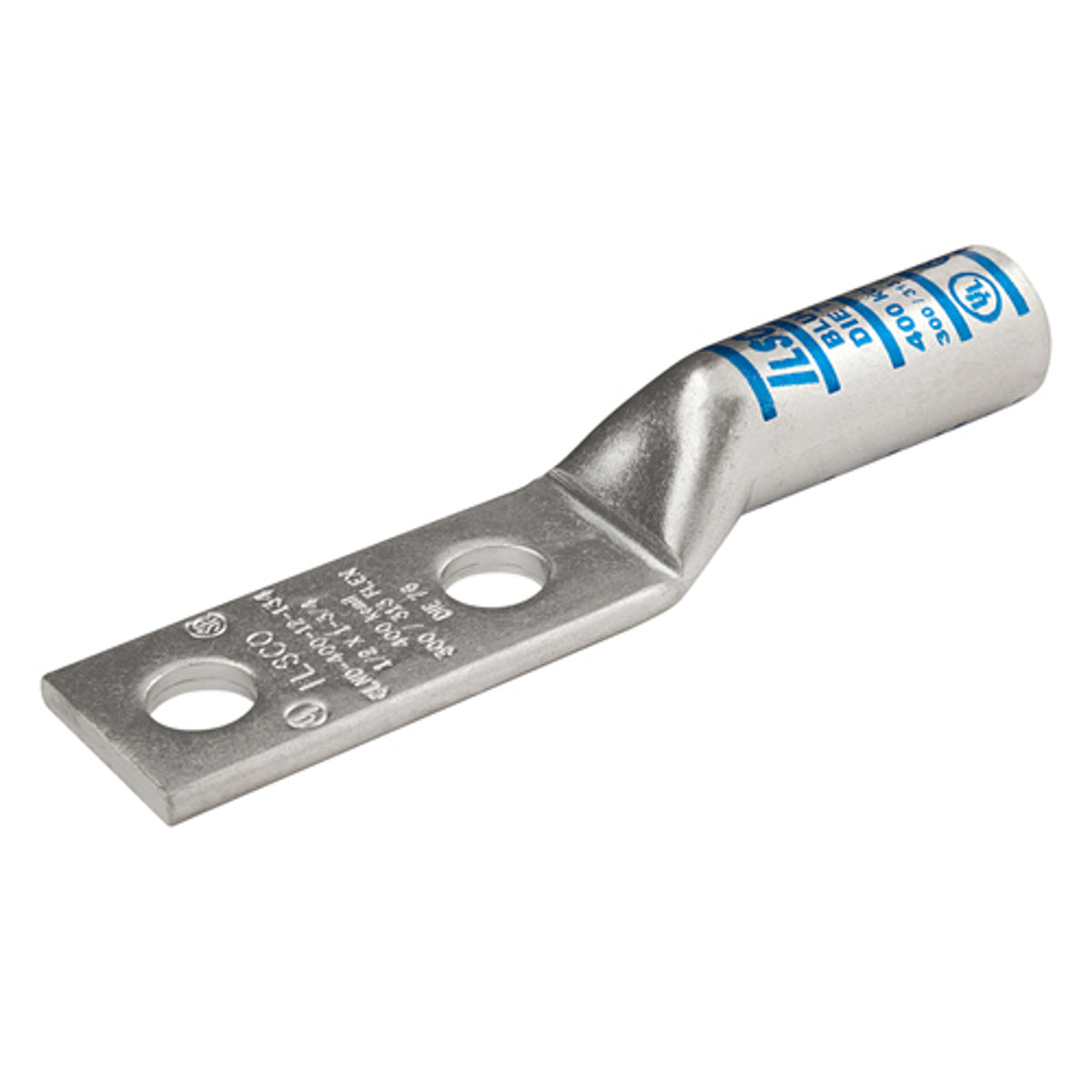

ILSCO CLND-250-12-134 Surecrimp Copper Compression Lug, 250 KCMIL, 2 Holes, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing

Product Description

ILSCO provides the CLND-250-12-134, a copper compression lug designed for high conductivity and durability. This product accommodates a conductor size of two hundred fifty KCMIL and features a long barrel design. The lug has two holes for secure connections and is suitable for a bolt size of one half inch with a hole spacing of one and three-fourth inches.

• Manufactured from seamless copper tubing
• UL listed and CSA certified
• Compatible with major competitors’ compression tools

Product Highlights

The CLND-250-12-134 is ideal for various electrical applications, ensuring efficient connections. It is designed for easy installation while maintaining a low contact resistance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Barrel Length: 1.688 inches
• Barrel Type: Long
• Color: Yellow
• Conductor Material: Copper
• Conductor Size: 250 KCMIL
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 inches
• Stud Size: 1/2 inch
• UPC: 783669641660
