ILSCO CLND-2-14-58 Surecrimp Copper Compression Lug Conductor Size 2 2 Holes 1/4 in Bolt Size 5/8 in Hole Spacing Long Barrel

Product Description

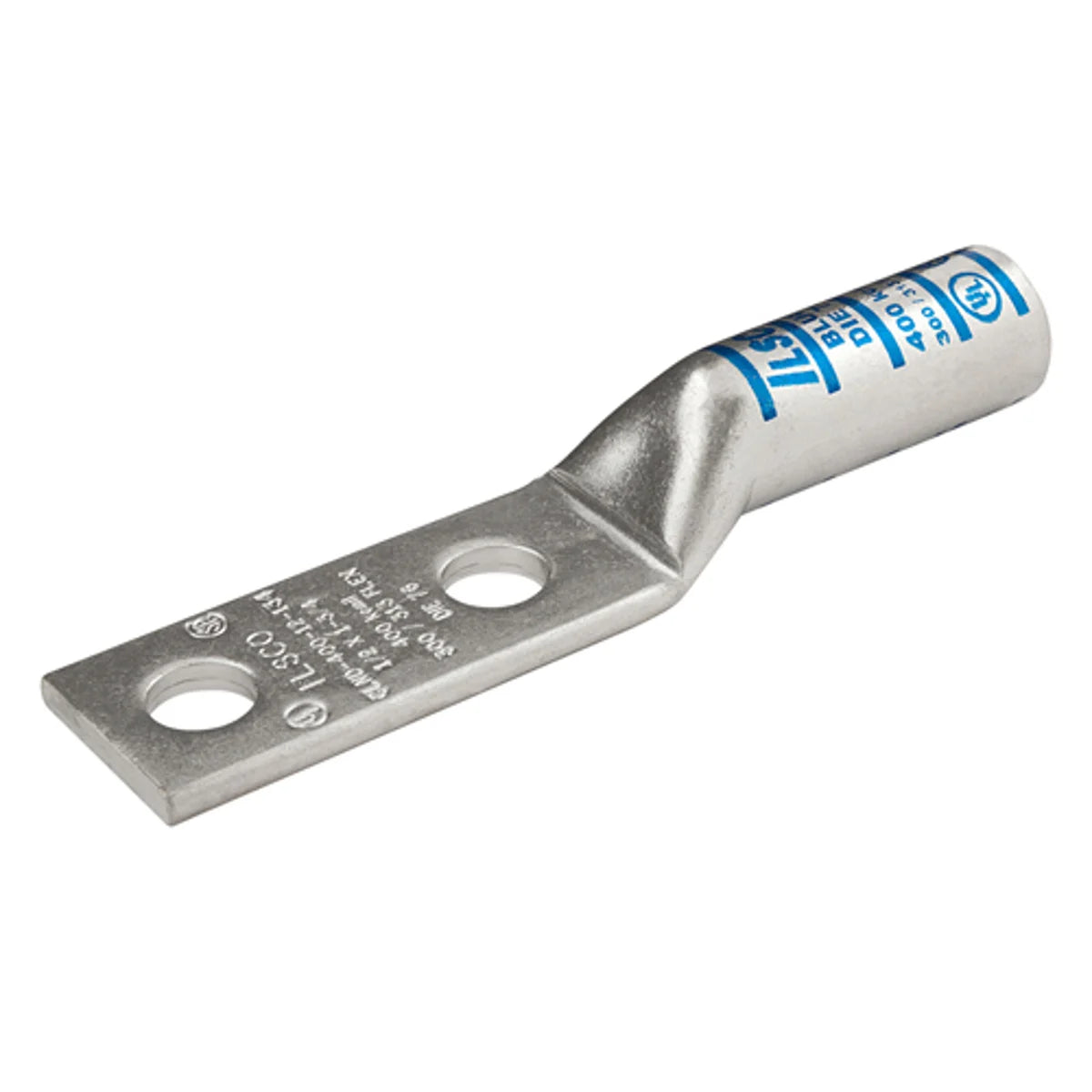

The ILSCO CLND-2-14-58 is a surecrimp copper compression lug designed for conductor size two. This product features two holes for mounting and is compliant with UL and CSA standards. It is made from seamless electro-tin plated copper to ensure maximum conductivity.

• Designed for use with copper conductors sized 2 AWG
• Long barrel for effective crimping
• Chamfered entry for easy conductor insertion

Product Highlights

The ILSCO CLND-2-14-58 compression lug provides low contact resistance and is suitable for high voltage applications up to thirty-five kilovolts when installed correctly.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLND-2-14-58
• Country of Origin: United States
• UPC: 783669633467
• Number of Pad Holes: 2
• Pad Hole Spacing: 5/8 inches
• Barrel Length: 1.125 inches
• Stud Size: 1/4 inches
• Conductor Size: 2 AWG
