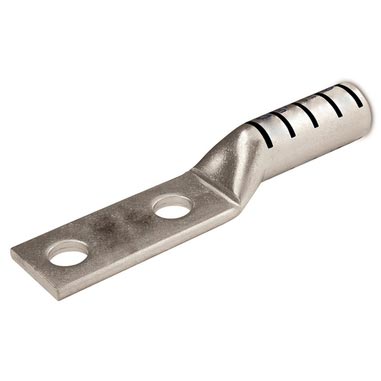

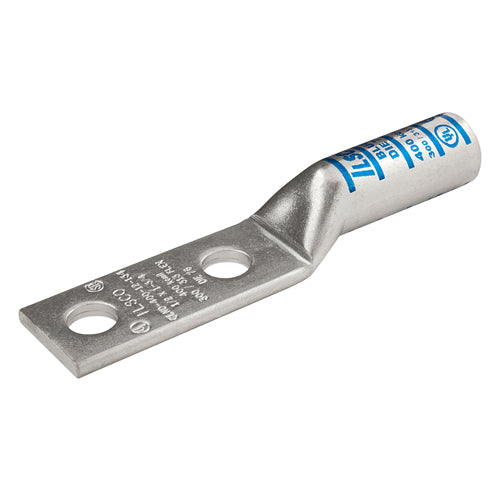

ILSCO CLND-2/0-12-134 Surecrimp Copper Compression Lug 2/0 AWG 2 Holes 1/2in Bolt Size

Product Description

The ILSCO CLND-2/0-12-134 is a copper compression lug designed for use with conductors sized 2/0 AWG. This lug features two holes and a bolt size of half an inch, with hole spacing of one and three-quarters inches. It is made from seamless electro-tin plated copper for improved conductivity and strength.

• UL Listed and CSA Certified for safety and compliance.
• Long barrel length facilitates easy conductor insertion.
• Chamfered entry design for enhanced usability.

Product Highlights

This compression lug provides low contact resistance and maximum conductivity. It is suitable for various applications, including grounding and bonding. The ILSCO compression lug is ideal for use in high voltage applications up to thirty-five kilovolt when appropriate safety measures are followed.

Product Information

Standard Information

• Brand: ILSCO
• Country of Origin: United States

Technical Specifications

• Catalog Number: CLND-2/0-12-134
• Material: Seamless Electro-Tin Plated Copper
• Barrel Type: Long
• Barrel Length: 1.5 inches
• Stud Size: 1/2 inch
• Conductor Size: 2/0 AWG
• Pad Hole Spacing: 1-3/4 inches
• Approval: UL 453G, UL 467, UL 486A/B, CSA
