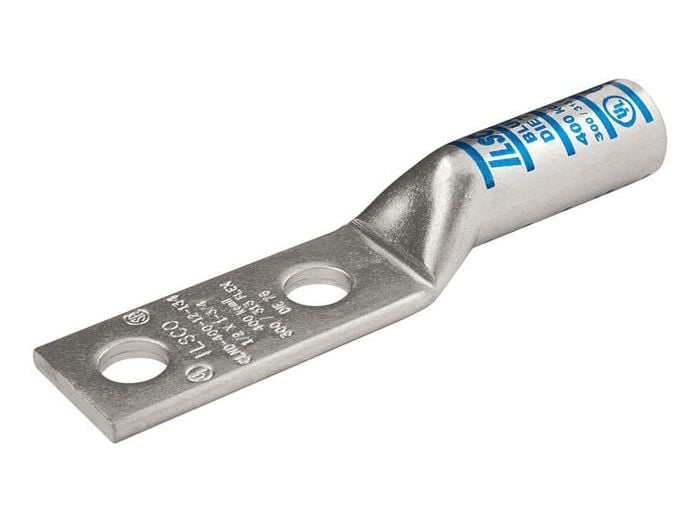

Ilsco CLND-1-516-78 CLND Series 2-Hole Lug 1 AWG

Product Description

The ILSCO CLND-1-516-78 is a CLND Series terminal suitable for use in circuits rated 35KV or less. It is manufactured from high-strength copper, providing low contact resistance and is rated to 90 degrees C. This terminal features a chamfered entry and is electro-tin plated. It is UL Listed and CSA certified.

• Suitable for use in Circuits Rated 35KV or less
• Manufactured from High Strength Copper
• Provide Low Contact Resistance

Product Highlights

ILSCO CLND series terminals offer high conductivity and excellent crimping characteristics for application versatility.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLND-1-516-78

Technical Specifications

• Manufacturer Part Number: CLND-1-516-78
• Manufacturer: Ilsco
• Product Series: CLND
• Family Series: Ilsco Terminals, CLND Series
• Description: CU CMP 1 AWG 11/32-7/8 T UL C SA
• Wire Size Range: 1 AWG
• Stud Size: 5/16 in
• Number of Conductors: 1
• Material: Copper
• Barrel Size: 0.359 in ID x 0.468 in OD x 1.375 in L
• Barrel Type: Chamfered/Long
• Conductor Type: Copper
• Die Code: I-37
• Mounting Hole Size: 0.343 in
• Overall Length: 3.392 in
• Series: CLND
• Temperature Rating: 90 deg C
• Type: 2-Hole
• Voltage Rating: 600 VAC
