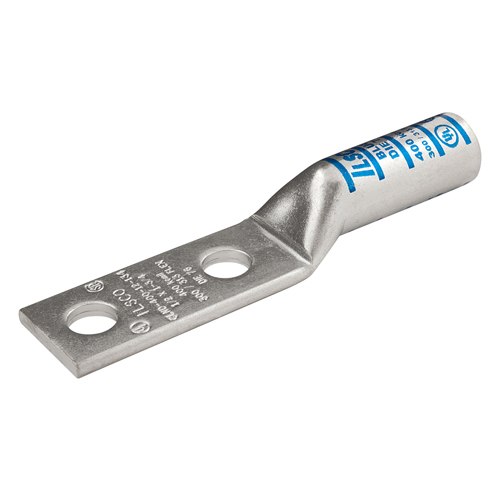

Ilsco CLND-1/0-38-134 1/0Awg Copper Connector

Product Description

The ILSCO CLND-1/0-38-134 is a 1/0Awg copper connector. These compression lugs offer a dependable, high-performance solution for secure electrical terminations across a wide range of applications, suitable for use in circuits rated 35KV or less. Proper high voltage spacing and insulation techniques must be used.

• Electro-tin plated for corrosion resistance
• UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility
• Chamfered entry for ease of conductor insertion

Product Highlights

This copper compression lug features a 2-hole mounting design with a 3/8in bolt size and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLND-1/0-38-134

Technical Specifications

• Material: Copper
• Mounting: 2-Hole
• Stud Size: 3/8 in
• Allowable Gauge Range: 1/0
• Bolt Size: 3/8 IN
• Temperature Rating: 90 degrees C
• Type: CLND:2 HOLE LONG BARREL
• Voltage: 35,000 Volt
