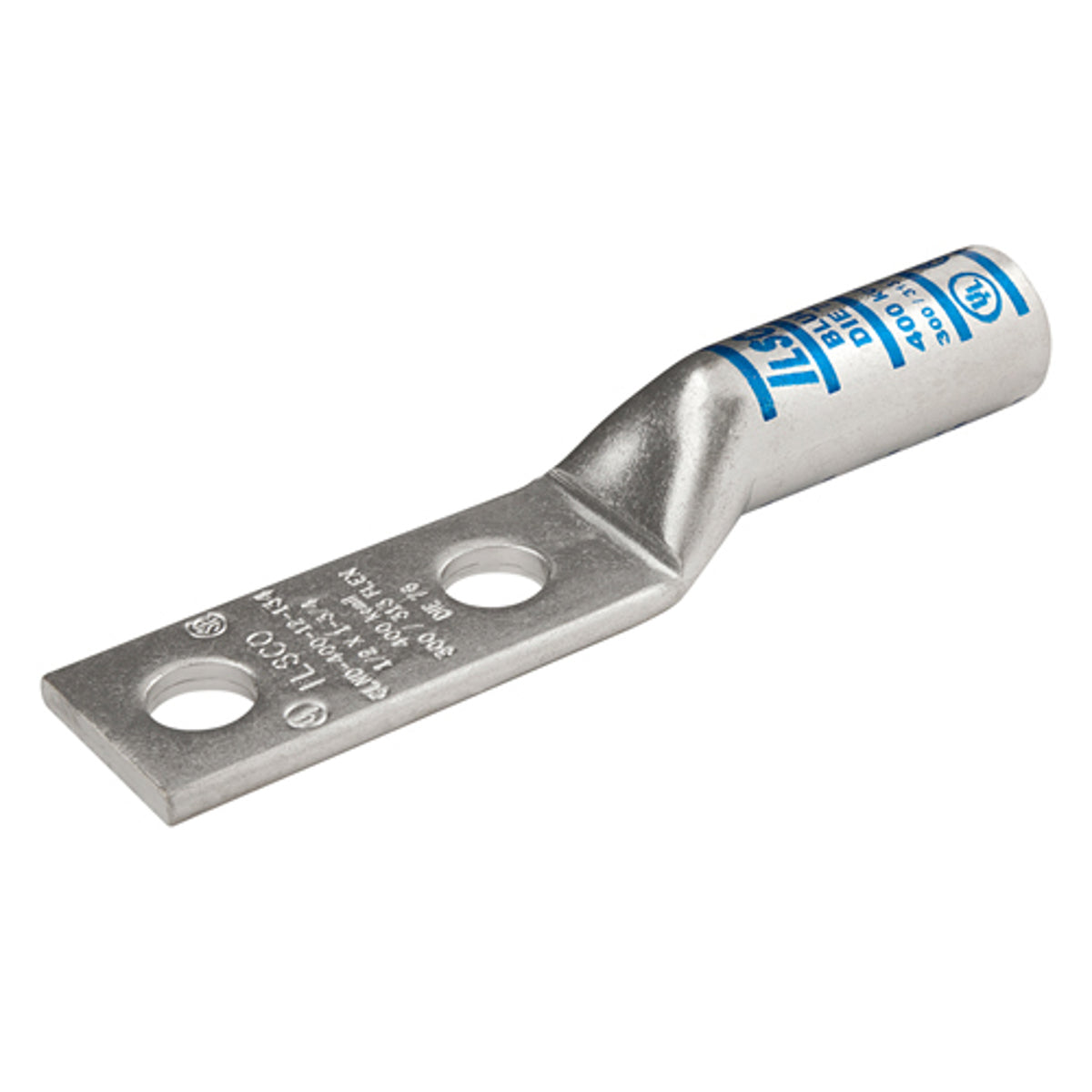

ILSCO CLND-1/0-12-134 Surecrimp Copper Compression Lug, 1/0 AWG, 2 Holes, 1/2 in Bolt Size, 1-3/4 in Hole Spacing

Product Description

The ILSCO CLND-1/0-12-134 is a copper compression lug designed for reliable wire connections. This product accommodates conductors sized 1/0 AWG with two holes for secure attachment. It features a bolt size of one-half inch and a hole spacing of one and three-quarter inches.

• Made from seamless copper for high conductivity
• Utilizes electro-tin plating for corrosion resistance
• UL listed and CSA certified for safety and reliability

Product Highlights

This compression lug is ideal for grounding and bonding applications and is suitable for use in high voltage circuits rated up to thirty-five kilovolts, provided proper insulation techniques are followed.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLND-1/0-12-134
• Conductor Size: 1/0 AWG
• Material: Seamless Electro-Tin Plated Copper
• Approval Standards: UL 453G, UL 467, UL 486A/B, CSA
• Pad Size: 3 inches L x 0.738 inches W x 0.125 inches Thk
• Barrel Length: 1.5 inches
• Stud Size: 1/2 inch
• Pad Hole Spacing: 1-3/4 inches
• Overall Length: 4.896 inches
