Ilsco CCS-6 Cu Cmp Sleeve 6 T Ul Cs

Product Description

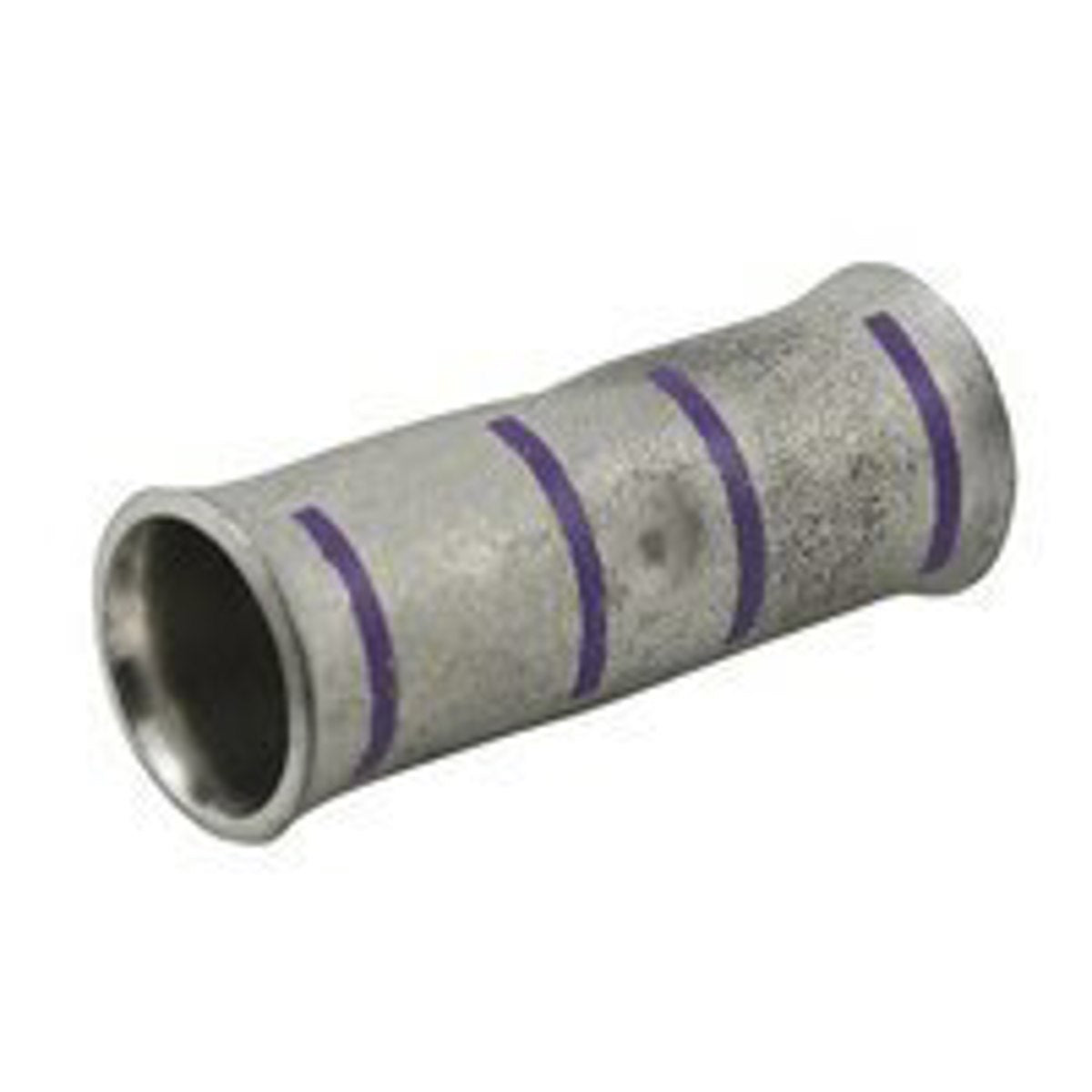

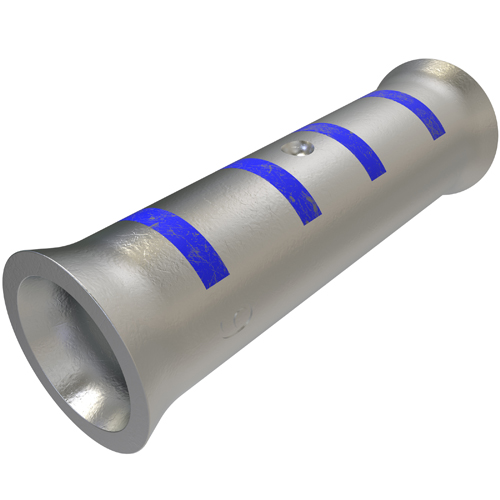

The ILSCO CCS-6 copper compression sleeve is designed for light-duty applications. Constructed from copper with a tin-plated finish, this standard barrel sleeve is UL 486A/B Listed and suitable for copper primary conductors of 6 Str. It features a flared end and no sight window, and is rated for up to 35 kV.

• Made from copper with a tin-plated finish
• Features a flared end for easy wire insertion
• UL 486A/B Listed for safety and reliability

Product Highlights

This copper compression sleeve is ideal for creating secure and reliable connections in electrical applications. It is suitable for up to 35kV.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CCS-6
• Country of Origin: US

Technical Specifications

• Type: CCS:FLARED END SLEEVE
• Brand: Ilsco
• Color: Silver
• Finish: Tin Plated
• Voltage: 35,000 Volt
• Material: Copper
• Sub Brand: ILSCO
• Applications: Copper Compression Sleeve, Light duty
• Temperature Rating: 90 degrees C
• Catalog Number: CCS-6
• Manufacturer: ECM Industries
• UPC: 783669032017
• GTIN: 00783669032017
• Conductor Size: 6 AWG
• Connector Type: Crimp
• Country of Origin: US
• Length: 1.06 in
• Mfg Standards/Approvals: AP-100973-1 CSA Certified, RoHS Compliant, UL E158587 8M24 Listed
• Series: CCS
• Specifications: 0.232 in ID x 0.307 in OD
• Voltage Rating: 600 VAC
