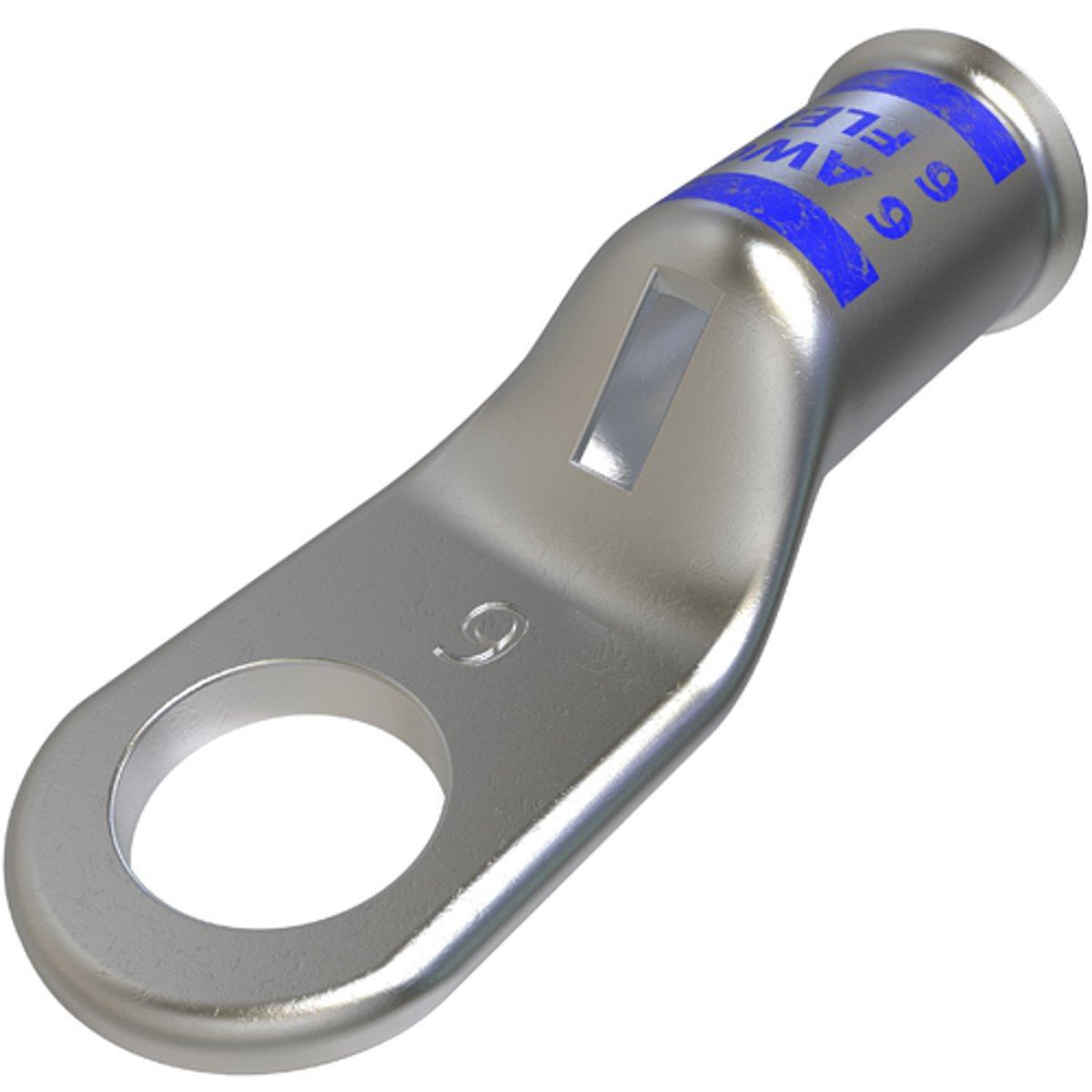

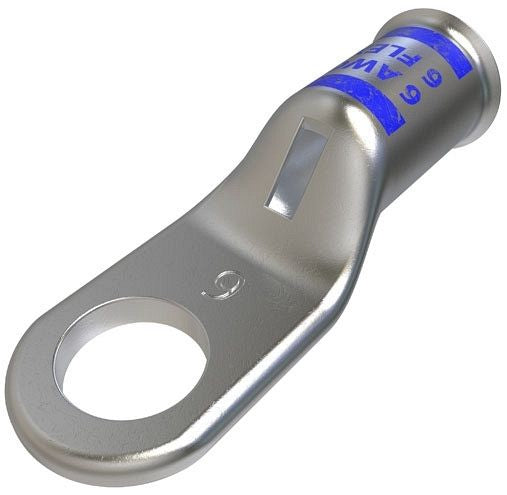

ILSCO CCL-6-14 Copper Compression Lug Conductor Size 6 1 Hole 1/4 in Bolt Size Standard Barrel

Product Description

The ILSCO CCL-6-14 is a copper compression lug designed for a conductor size of six. This lug features a one-inch hole for a quarter-inch bolt size and a standard barrel with a sight window. It is ideal for use in various electrical applications where reliable connections are crucial.

• Made from high strength seamless copper tubing
• Meets UL and CSA standards for safety
• Tin plated for improved conductivity

Product Highlights

The ILSCO CCL-6-14 lug is an essential component for electrical connections. Its design allows for easy wire insertion and ensures maximum conductivity.

Product Information

Standard Information

• Catalog Number: CCL-6-14
• Manufacturer: ECM Industries

Technical Specifications

• Material: Electro-Tin Plated Electrolytic Copper
• Conductor Size: 6 AWG
• Pad Size: 0.579 inches long x 0.445 inches wide x 0.075 inches thick
• Stud Size: 1/4 inches
• Height: 0.385 inches
• Width: 0.445 inches
• Length: 1.27 inches
• Country of Origin: India
