Ilsco CCL-1-14 Compression Lug - Copper, 1 AWG, Flex, 35 kV, 1/4 inches

Product Description

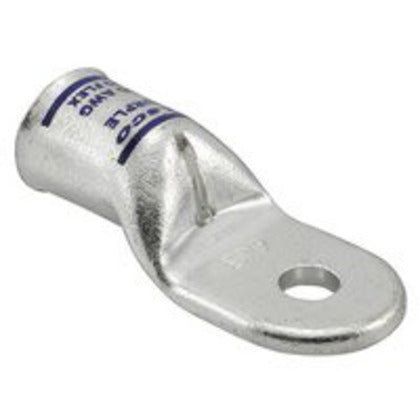

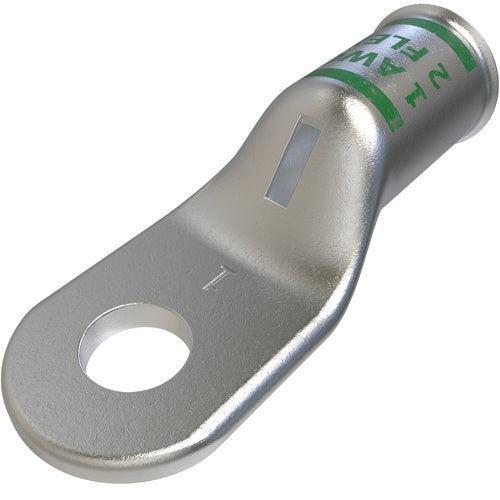

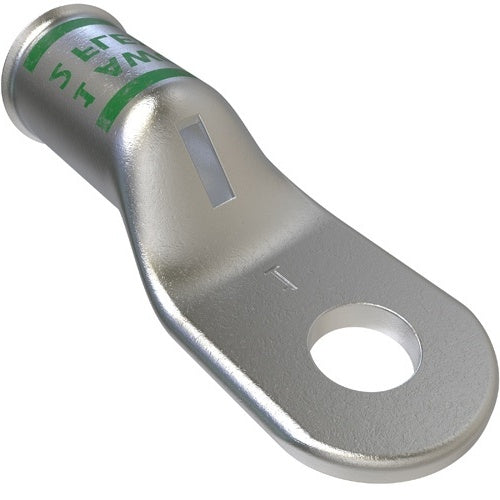

The ILSCO CCL-1-14 is a copper compression lug, UL and CSA listed with a 35 kV voltage rating. Made of tin-plated copper, it has a 1/4in bolt size and a 1/4in mounting hole. The sight window allows for easy inspection. Suitable for 1 AWG flex conductors. It is rated to 90 degrees C.

• Electro-tin plated
• Sight hole
• Solid seamless tang

Product Highlights

The CCL-1-14 compression lug is suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used. For copper conductor only.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CCL-1-14
• Country of Origin: India

Technical Specifications

• Terminal Stud Size Opening: 1/4"
• Component: Compression Lug
• Manufacturer: Ilsco
• Terminal for Wire Gauge: 1 AWG
• Material: Copper
• Voltage Rating: 35 Kv
• Conductor: 1 AWG
• Voltage: 600 V AC
• Stud Size: 1/4 in
• Tongue Type: Solid Seamless Tongue
• Tongue Dimensions: 0.858 in L x 0.65 in W x 0.098 in THK
• Overall Length: 1.72 in
• Barrel Dimensions: 0.362 in ID x 0.461 in OD
• Temperature Rating: 90 deg C
