Ilsco C-11 Fuse Clip 60 Amps 250 V Fuse Stop

Product Description

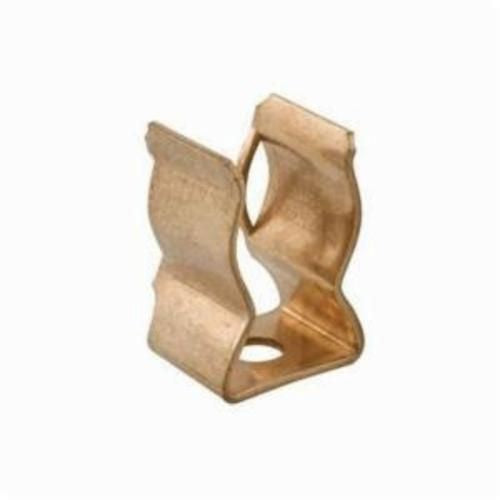

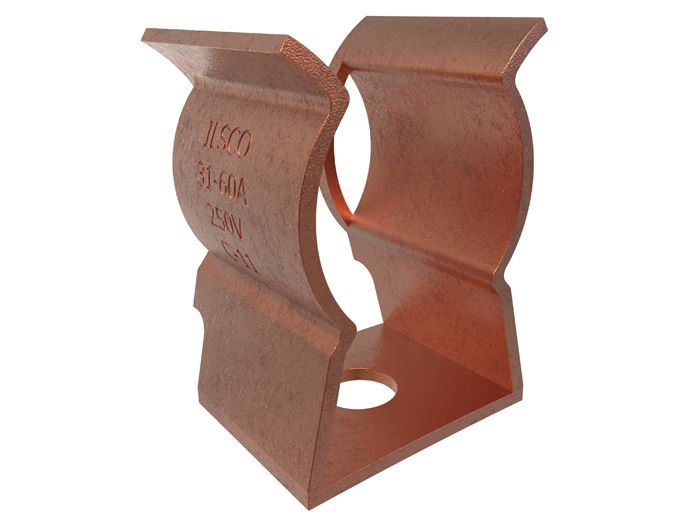

The ILSCO C-11 is a bronze fuse clip designed for ferrule fuses. Rated at 60 Amps and 250V, this clip features a #10 bolt size for mounting. It is constructed from a special bronze alloy with formed corners designed with a radius to prevent fracturing. The spring-type material ensures positive contact and secure mounting.

• Manufactured from special bronze alloy, arched bottom
• Spring type material ensures positive contact and secure mounting
• 60 A amperage rating, 250 V voltage rating

Product Highlights

The ILSCO C-11 fuse clip provides a reliable and secure connection for ferrule fuses in various electrical applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: C-11

Technical Specifications

• Height (IN): 1.113
• Height (mm): 28.2702
• Length (IN): 0.789
• Length (mm): 20.0406
• Mounting Hole Diameter (IN): 0.234
• Thickness (IN): 0.045
• Thickness (mm): 1.143
• Width (IN): 0.719
• Width (mm): 18.2626
• Connection: Clip
• Fuse Type: Ferrule
• Mounting Hole Type: Thru
• Material: Bronze Alloy
• Mounting Bolt/Stud Size: #10
• Connector Amperage Rating CU (Derated where applicable): 60 Amps
• Voltage Rating: 250 V
• Mounting Type: Bolt
• Type: Type C
• Standard & Approvals: RoHS Compliant
• Amperage Rating: 60 A
