Ilsco AU1000 Aluminum Mechanical Lug 1000-500

Product Description

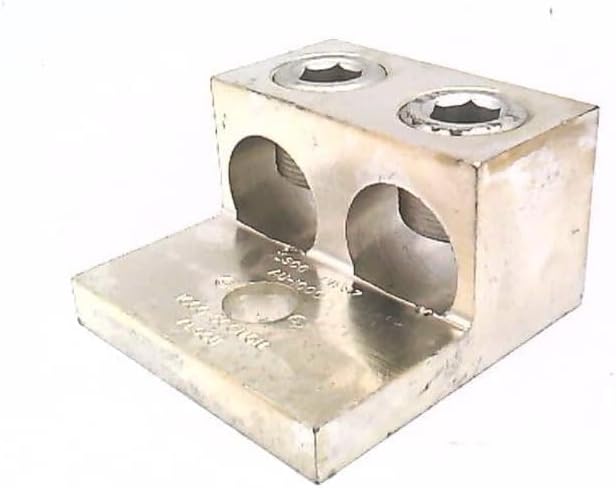

The ILSCO AU1000 is a two-conductor mechanical lug, featuring a dual-rated mechanical connection. Constructed from aluminum with tin plating, it includes one mounting hole and accepts copper or aluminum conductors ranging from 1000 kcmil to 500 kcmil. It is designed with a 9/16 internal hex drive type and is rated for 35 kV.

• Dual Rated for Aluminum and Copper Conductors
• Tin-Plated Aluminum Construction
• Suitable for terminating connector applications

Product Highlights

The ILSCO AU1000 mechanical lug ensures secure and reliable connections for a range of conductor sizes.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: AU1000
• Country of Origin: United States

Technical Specifications

• Applications: Terminating Connector
• Conductor Material: Aluminum,Copper
• Conductor Size: 500-1000 kcmil
• Conductor Type: Aluminum/Copper
• Connection Type: Mechanical
• Direct Burial?: No
• Material: Aluminum Alloy
• Mounting Hole Size: 0.656 in
• Number of Conductors: 2
• Number of Holes: 1 Hole
• Standard: CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
• TC Connection: Mechanical
• Temperature Rating: 90 degrees C
• Type: AU:2 CONDUCTOR AL/CU
• Voltage: 35 kV
• Brand: ILSCO
• Sub Brand: ClearChoice
• Finish: Tin Plated
• Manufacturer Part Number: AU-1000
• Manufacturer: Ilsco
• Product Series: AU
• Family Series: Ilsco Terminals, AU Series
• Description: Mechanical Lug, Accepts (2)1000MCM- 500MCM Wires, Aluminum, (1)5/8in. Mounting Hole
• Wire Size Range: 500-1,000 kcmil
• Bolt Size: 9/16 in
