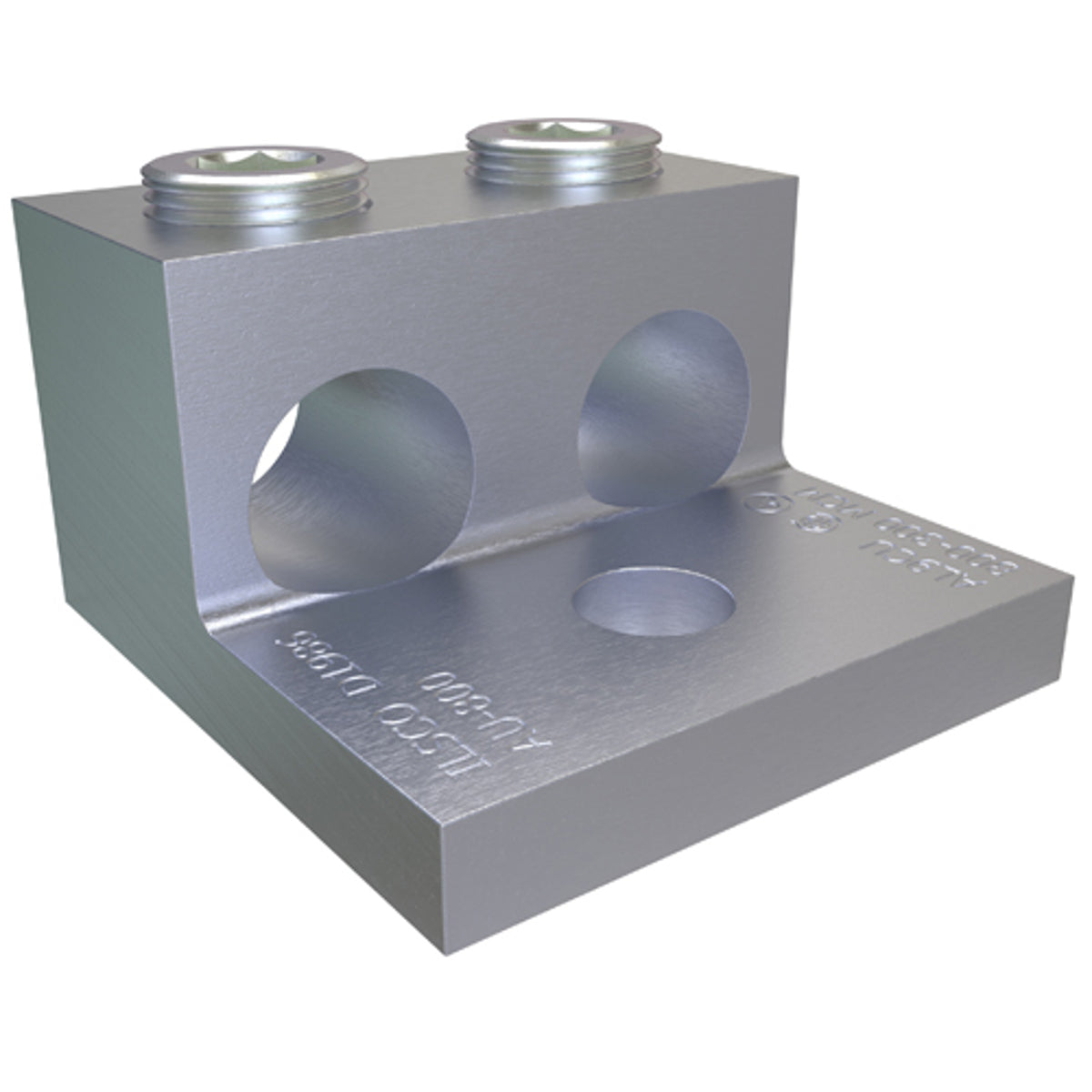

Ilsco AU-800 Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA

Product Description

The Ilsco AU-800 is an aluminum mechanical lug designed for electrical connections. This product supports conductor ranges from eight hundred to three hundred KCMIL and has two ports with one hole for easy installation. It is UL and CSA approved and made from electro-tin plated high-strength aluminum alloy.

• Supports conductor ranges from eight hundred to three hundred KCMIL.
• Compatible with both copper and aluminum conductors.
• Designed for use in circuits rated at thirty-five KV or less.

Product Highlights

This lug is ideal for electricians needing reliable mechanical connections in various applications. Its design provides low contact resistance and ease of installation, ensuring a secure fit for high-voltage requirements.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: AU-800
• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 800 KCMIL
• Minimum Conductor Size: 300 KCMIL
• Number Of Conductors: 2
• Screw Type: 1/2 Inch Hex
• Stud Size: 5/8 Inch
• Pad Size: 1-3/4 Inch L x 3-3/16 Inch W x 1/2 Inch Thk
