ILSCO AU-600 Aluminum Mechanical Lug, 2 Ports, 1/2in Bolt Size

Product Description

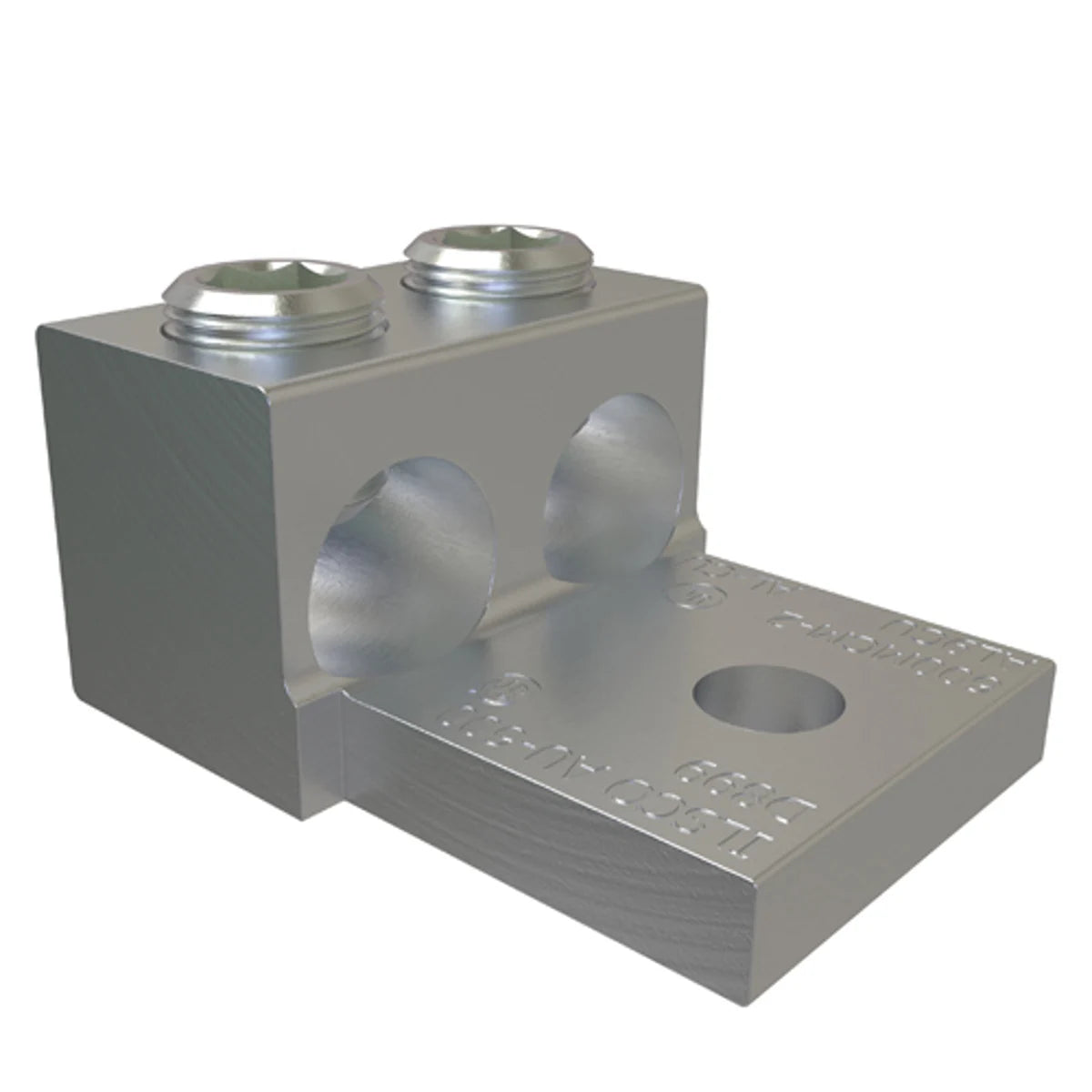

ILSCO AU-600 is an aluminum mechanical lug designed for conductor range from two AWG to six hundred kcmil. This product accommodates up to two ports with a single hole for secure mounting. The bolt size is one half inch, ensuring a tight and reliable connection.

• Suitable for use in circuits rated at thirty-five kilovolts or less.
• Compatible with copper or aluminum conductors.
• Provides low contact resistance and ease of installation.

Product Highlights

Provides excellent mechanical performance and reliability for both copper and aluminum conductors.

Product Information

Standard Information

• Catalog Number: AU-600
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Mexico

Technical Specifications

• Maximum Conductor Size: 600 kcmil
• Minimum Conductor Size: 2 AWG
• Conductor Material: Aluminum/Copper
• Stud Size: 1/2 inch
• Number of Conductors: 2
• Pad Size: 1-13/16 inch L x 2-13/32 inch W x 7/16 inch thick
• Screw Type: 1/2 inch hex
• Warranty: Standard warranty included
