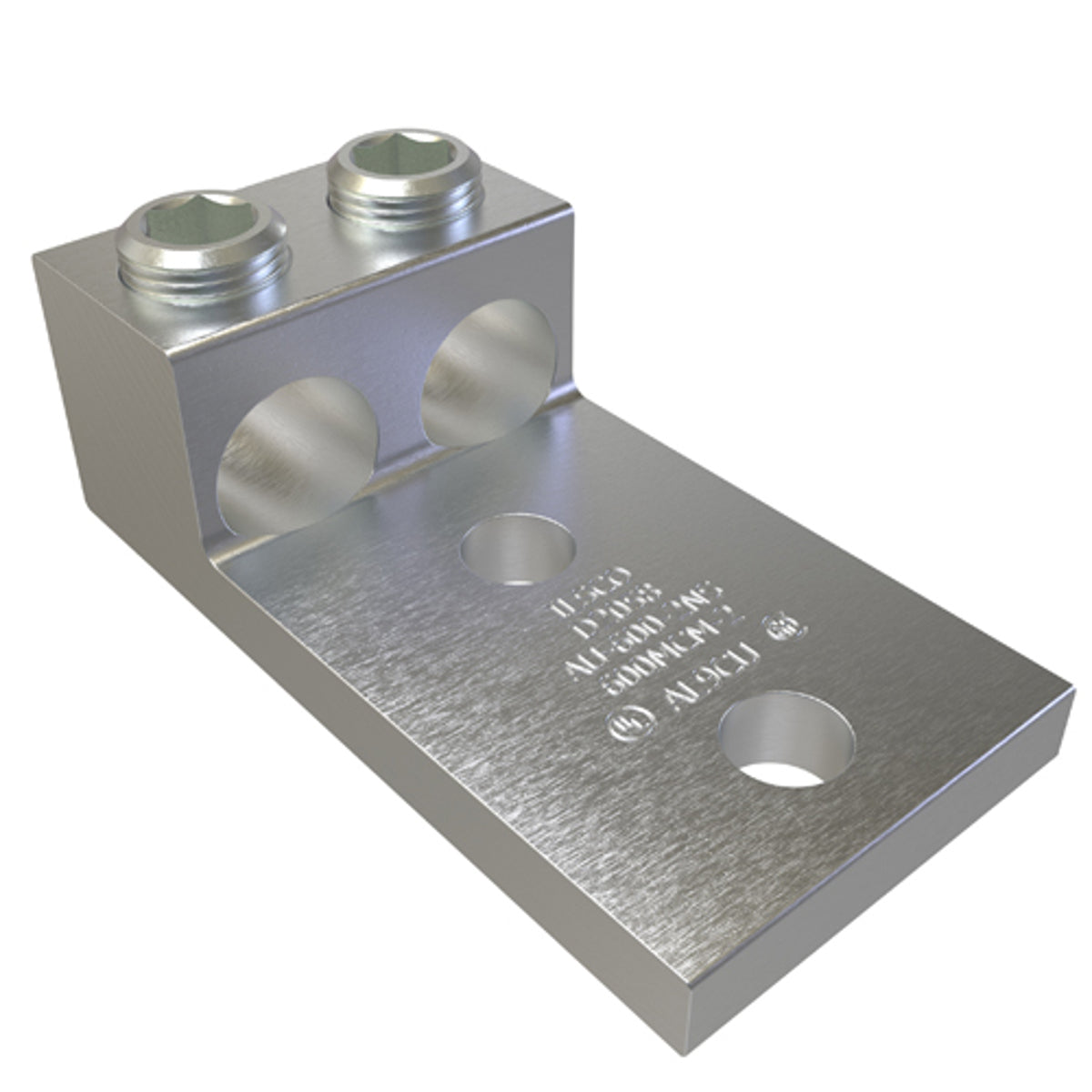

Ilsco AU-600-2NS Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 2 Holes, 1/2in Bolt Size

Product Description

Ilsco AU-600-2NS is an aluminum mechanical lug designed for a conductor range of two AWG to six hundred MCM. This component features two ports and two holes for easy installation and is suitable for both copper and aluminum conductors. The bolt size is one-half inch with a hole spacing of one and three-quarter inches, ensuring a secure fit in various electrical applications.

• Material: Aluminum
• Conductors: 2
• Mounting: 2-Hole

Product Highlights

This lug is UL and CSA listed, making it a reliable choice for compliance with safety standards in electrical installations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: Mexico
• UPC: 783669005769

Technical Specifications

• Catalog Number: AU-600-2NS
• Conductors Size Range: 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 400, 500, 600
• Mounting Bolt Size: 1/2 inches
• Hole Spacing: 1-3/4 inches
• Type: Mechanical
• GTIN: 00783669005769
