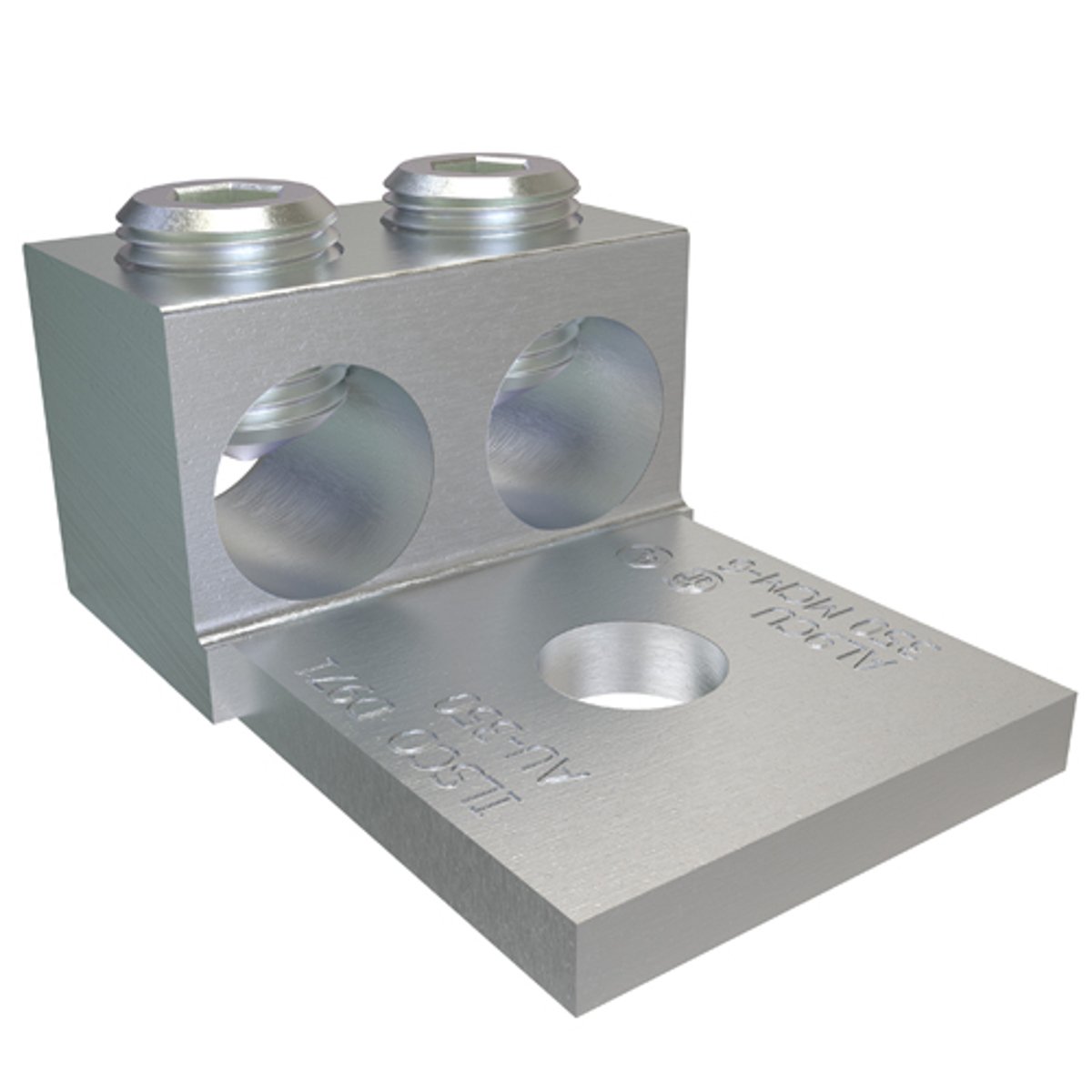

ILSCO AU-350 Aluminum Mechanical Lug, Conductor Range 350-6, 2 Ports, 1 Hole, 1/2in Bolt Size

Product Description

The ILSCO AU-350 is an aluminum mechanical lug designed to accommodate conductor sizes ranging from six AWG to three hundred fifty KCMIL. This mechanical lug features two ports and one hole designed for a half-inch bolt size. It is suitable for connections involving copper and aluminum conductors.

• Dual rated for copper and aluminum conductors
• Suitable for circuits rated at thirty-five kV or lower
• Electro-tin plated for corrosion resistance

Product Highlights

The AU-350 ensures reliable connections with low contact resistance and easy installation. Its design allows versatility in applications where high performance is required.

Product Information

Standard Information

• Catalog Number: AU-350
• Manufacturer: ECM Industries

Technical Specifications

• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Conductors: 2
• Number of Pad Holes: 1
• Pad Size: 1-3/4 inches L x 1-57/64 inches W x 1/4 inches Thick
• Stud Size: 1/2 inches
• Screw Type: 5/16 inches Hex
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
