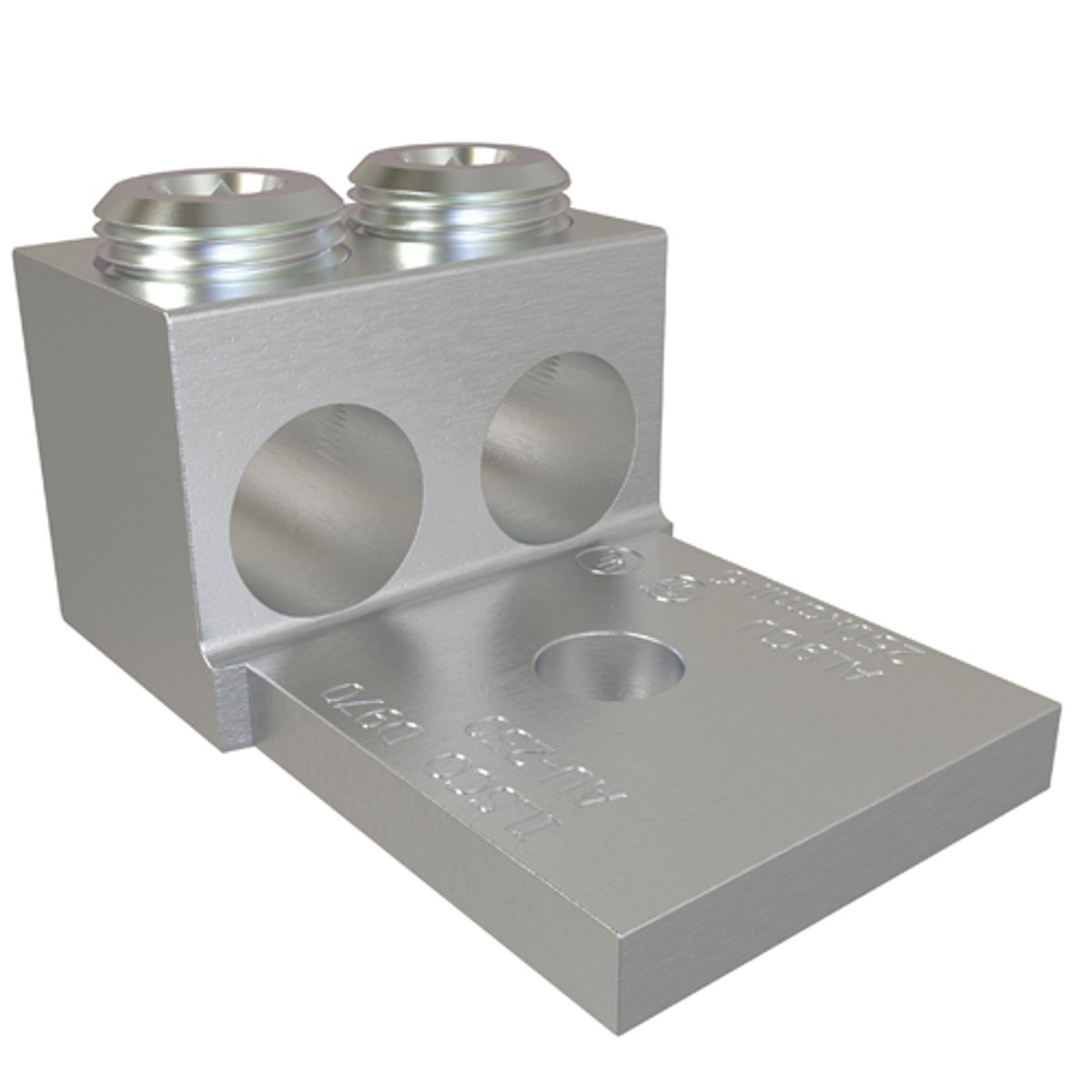

Ilsco AU-250 Aluminum Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size

Product Description

The Ilsco AU-250 is an aluminum mechanical lug suitable for use with conductors ranging from six to two hundred fifty MCM. This lug features two ports and one hole for mounting, optimized for a three-eighths inch bolt size. It is dual rated for copper and aluminum, making it versatile for various applications.

• Suitable for use with both copper and aluminum conductors
• Designed for high performance with a maximum conductor size of 250 KCMIL
• Manufactured by Ilsco, known for quality electrical components

Product Highlights

The AU-250 provides reliable connections for electrical circuits, particularly in high voltage scenarios rated at thirty-five kV or less. Proper installation techniques must be followed to ensure optimal performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: Ilsco

Technical Specifications

• Catalog Number: AU-250
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 250 KCMIL
• Minimum Conductor Size: 6 AWG
• Number Of Conductors: 2
• Number Of Pad Holes: 1
• Pad Size: 1-9/16 Inch L x 1-21/32 Inch W x 1/4 Inch Thk
• Stud Size: 3/8 Inch
• Screw Type: 5/16 Inch Hex
