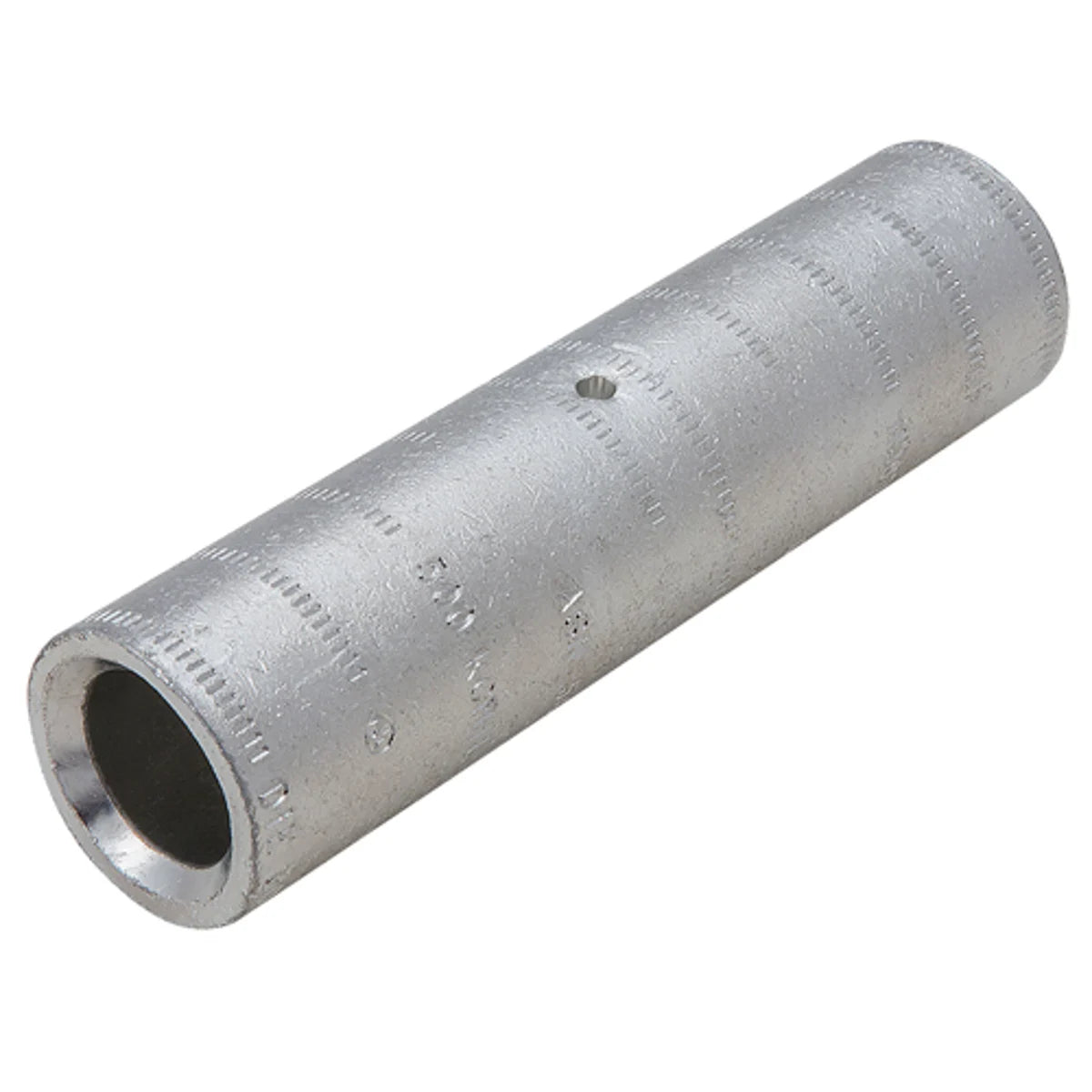

ILSCO ASN-8 Surecrimp Aluminum Compression Sleeve 8 AWG Tin Plated

Product Description

The ILSCO ASN-8 is a surecrimp aluminum compression sleeve designed to connect 8 AWG copper or aluminum conductors. This product features a tin-plated finish, which enhances conductivity and reduces contact resistance. The sleeve is suitable for both high voltage applications, capable of handling up to thirty-five kilovolts when installed with proper techniques. Ideal for splicer and reducer applications, this compression sleeve serves as a reliable solution for electrical connections.

• Manufactured from aluminum alloy for strength and durability
• Chamfered entry allows for easy conductor insertion
• Prefilled with DE-OX to prevent oxide formation

Product Highlights

The ILSCO ASN-8 ensures maximum conductivity and excellent crimping properties, suitable for various electrical applications.

Product Information

Standard Information

• Catalog Number: ASN-8
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Size: 8 AWG
• Material: Aluminum Alloy
• Length: 1.806 inches
• Country of Origin: Mexico
• Finish: Electro Tin Plated
• Temperature Rating: 90 degrees C
• Die Code: 374
• Application: Splicer/Reducer Applications
