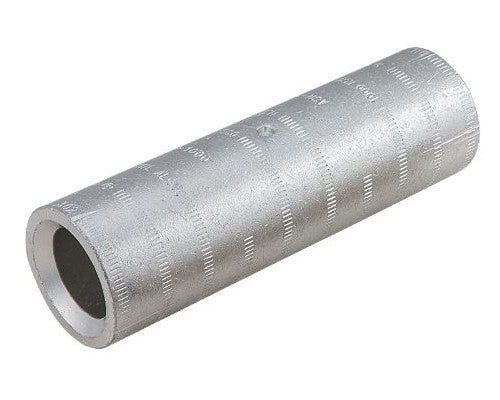

ILSCO ASN-700/750 Surecrimp Aluminum Compression Sleeve, 500 to 750 kcmil Conductor, Tin Plated

Product Description

The ILSCO ASN-700/750 is an aluminum compression sleeve designed for conductor sizes between five hundred and seven hundred fifty kcmil. This product is tin plated and meets UL and CSA standards, making it suitable for various applications including electrical connections and splicing. With a robust aluminum alloy construction, this compression sleeve delivers high conductivity and durability.

• Manufactured to meet UL and CSA standards.
• Compatible with copper and aluminum conductors.
• Designed for both splicer and reducer applications.

Product Highlights

This compression sleeve features a chamfered entry for easy conductor insertion and a color-coded end cap for the correct compression die identification.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Application: Splicer/Reducer Applications
• Conductor Size: 500 to 750 kcmil
• Conductor Type: Copper/Aluminum
• Length: 5.928 inches
• Dimensions: 1.03 inches ID x 1.46 inches OD
• Material: Aluminum Alloy
• Country of Origin: Mexico
• Temperature Rating: 90 deg C
