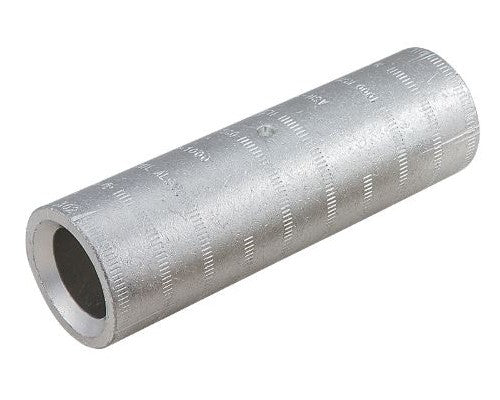

Product Description
The ILSCO ASN-600 Surecrimp Aluminum Compression Sleeve is designed for aluminum and copper conductors sized at 600 kcmil. This sleeve features electro tin plating to minimize contact resistance, ensuring reliable connectivity in various electrical applications. The chamfered entry allows for easy conductor insertion, facilitating efficient installation. The product is UL and CSA certified, which guarantees compliance with high safety and quality standards.
- High strength aluminum alloy construction for maximum conductivity
- Color coded end cap for proper compression die identification
- Can accommodate high voltage applications up to thirty-five kV with correct techniques
Product Highlights
This product provides a durable and efficient solution for splicing and reducing in electrical systems. Its design promotes longevity and reliability in various wiring applications.
Product Information
Standard Information
-
Brand: ILSCO
-
MPN: ASN-600
Technical Specifications
-
Application: For use with splicer and reducer
-
Color: Black
-
Conductor Size: 600 kcmil
-
Conductor Type: Aluminum/Copper
-
Connector Type: Crimp
-
Country of Origin: Mexico
-
Die Code: 473
-
Dimensions: 0.92 in ID x 1.44 in OD
-
Finish: Electro-Plated Tin
-
Length: 5.37 in
-
Material: Aluminum
-
Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL 486A-B File No. E6207, CSA Certified, ECCN EAR99
-
Package Height: 1.44 in
-
Package Length: 5.37 in
-
Package Weight: 0.498 lb
-
Package Width: 1.44 in
-
Temperature Rating: 90 deg C
-
Type: Type ASN Dual Rated
