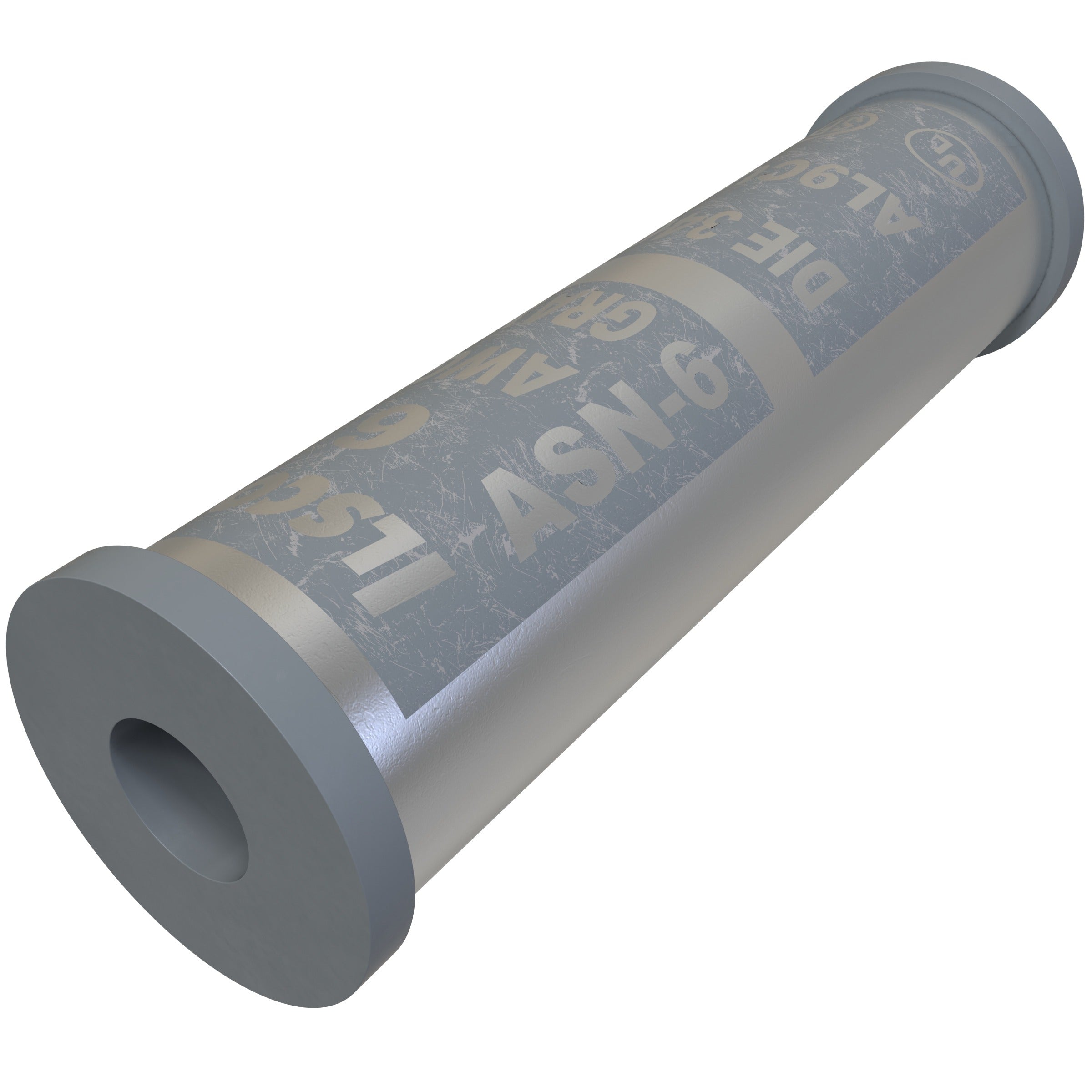

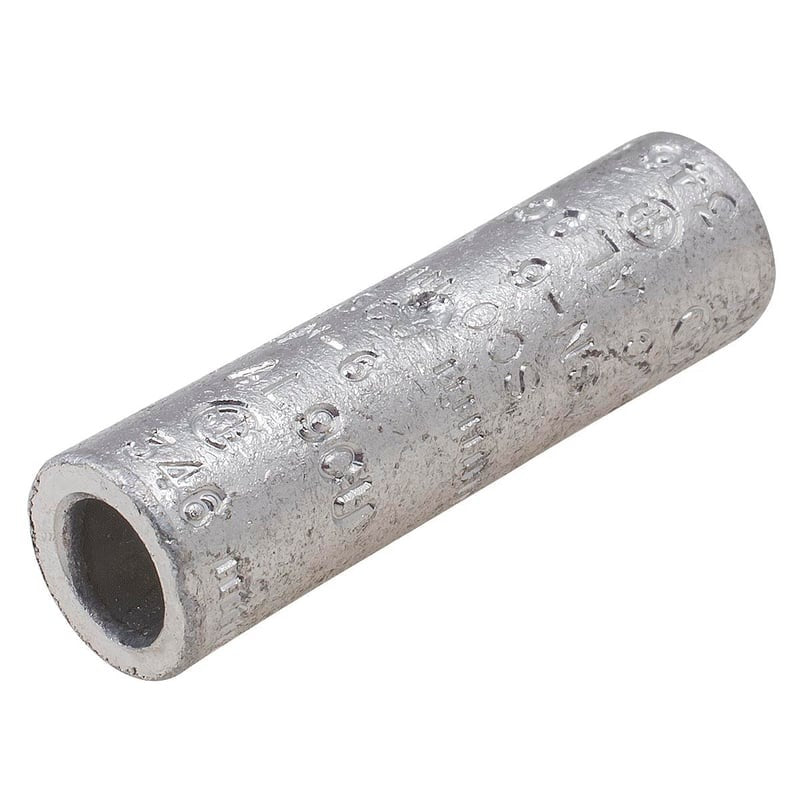

Ilsco ASN-6 SureCrimp Aluminum Compression Sleeve 35 kV (6 AWG Pack 20)

Product Description

The ILSCO ASN-6 is a SureCrimp aluminum compression sleeve for 6 AWG conductors, tin plated and dual rated for aluminum and copper conductors. It is a standard chamfered-barrel compression connector containing De-Ox for improved conductivity and corrosion resistance, rated for use in circuits up to 35 kV with a 90 C temperature rating. Typical dimensions are approximately 1.205 in x 0.338 in x 0.338 in and it is UL and CSA listed.

• Dual-rated electro-tin plated aluminum compression sleeve for 6 AWG aluminum or copper conductors; standard chamfered barrel.
• Contains De-Ox to improve conductivity and corrosion resistance; designed for single-conductor compression crimping.
• Rated 35 kV and 90 C; UL and CSA listed; dimensions ~1.205 in L, 0.194 in ID, 0.338 in OD; packaged in standard pack quantities.

Product Highlights

SureCrimp aluminum compression sleeve for 6 AWG, electro-tin plated, dual rated, contains De-Ox, 35 kV and 90 C ratings, standard (chamfered) barrel, pack qty 20.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: ASN-6
• Country of Origin: Mexico
