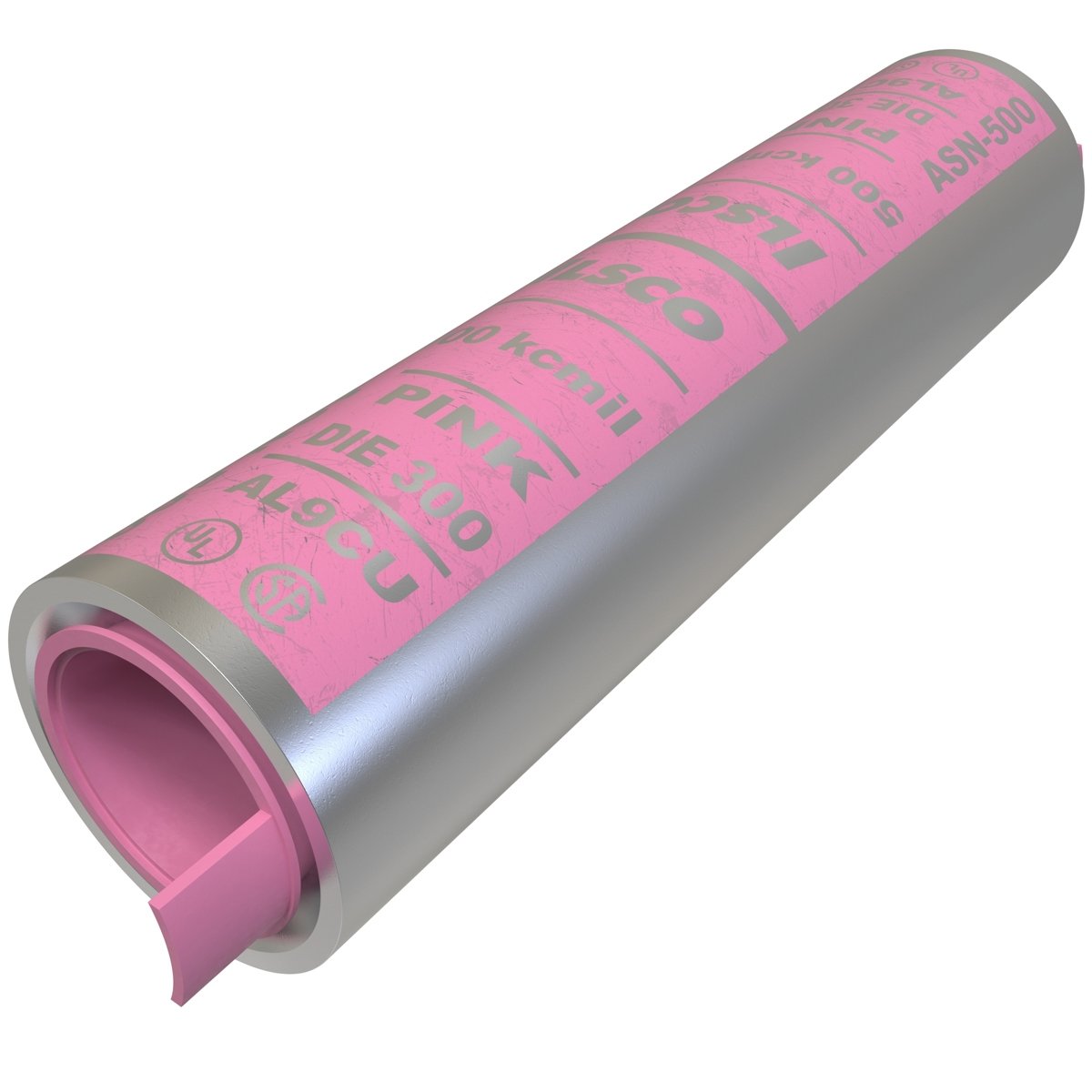

ILSCO ASN-500 Surecrimp Aluminum Compression Sleeve, Conductor Size 500, Tin Plated, UL, CSA

Product Description

The ILSCO ASN-500 is a reliable surecrimp aluminum compression sleeve designed for use with conductor sizes of five hundred kcmil aluminum and copper wires. This product features a tin-plated finish for improved conductivity and resistance to corrosion. It is suitable for both residential and commercial applications, making it a versatile choice for electricians and contractors.

• Manufactured from high-strength aluminum alloy
• Electro-tin plated for low contact resistance
• Dual-rated for aluminum and copper conductors

Product Highlights

This compression sleeve provides excellent crimping characteristics and includes chamfered entries for easy conductor insertion. It is pre-filled with DE-OX to prevent oxidation and ensure longevity. This product supports high voltage applications rated up to thirty-five kV.

Product Information

Standard Information

• Brand: ILSCO
• Catalog Number: ASN-500

Technical Specifications

• Conductor Size: 500 kcmil
• Material: Aluminum
• Length: 5.13 inches
• Voltage Rating: 35 kV
• Finish: Electro-Plated Tin
• Country of Origin: Mexico
• Temperature Rating: 90 deg C
• Application: For use with splicer and reducer
