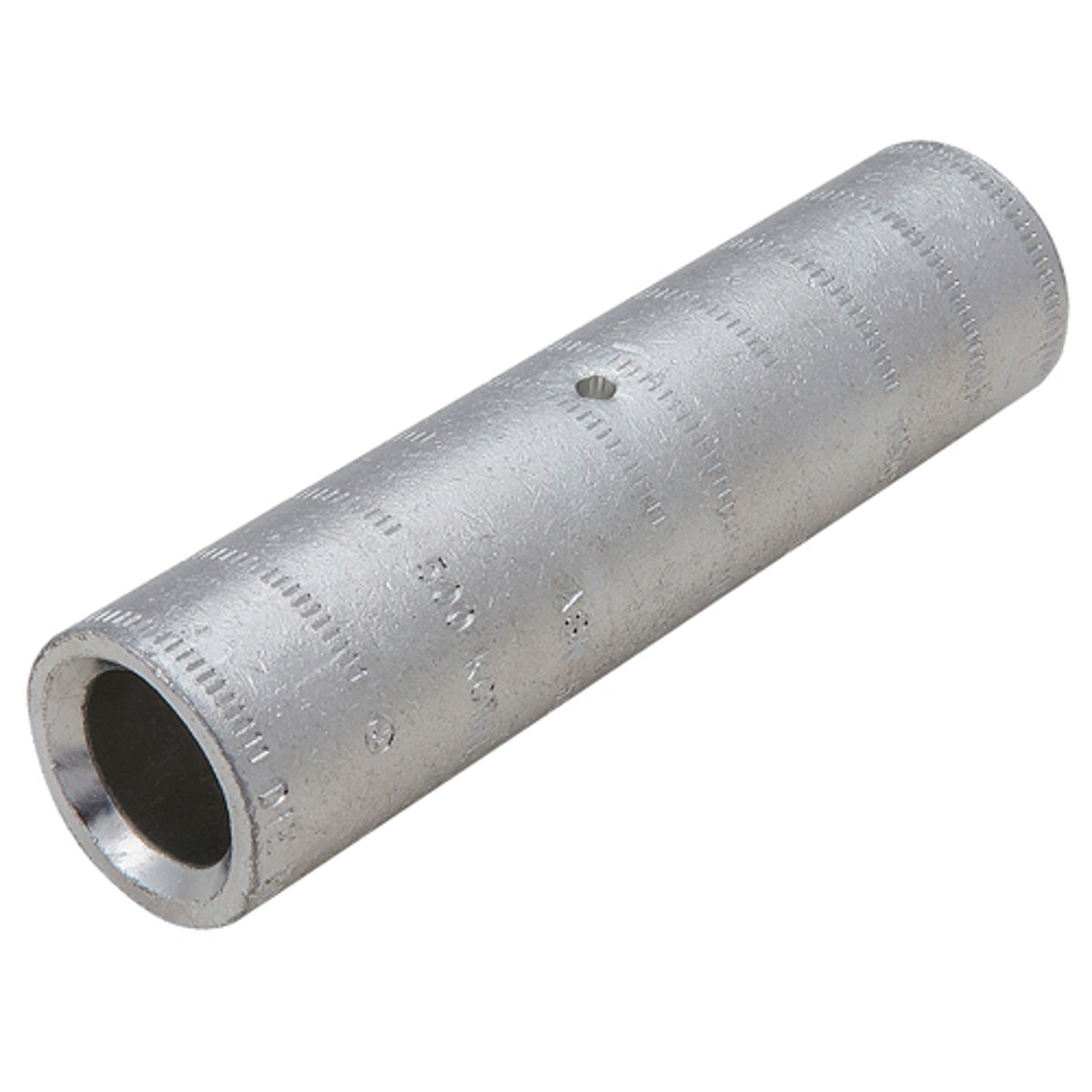

ILSCO ASN-350 Surecrimp Aluminum Compression Sleeve, 350 KCMIL, Tin Plated

Product Description

The ILSCO ASN-350 is an aluminum compression sleeve designed for use with conductor sizes from 350 KCMIL to 3/0 AWG. This product ensures reliable electrical connections with aluminum and copper conductors. Featuring a chamfered entry for easy insertion, the sleeve allows for a secure crimp with specified tools. The ASN-350 is tin plated for enhanced conductivity and corrosion resistance.

• Compatible with aluminum and copper conductors
• Chamfered design for seamless conductor insertion
• UL listed for safety and compliance

Product Highlights

This product is cost-effective for various electrical applications, providing ease of use with maximum conductivity.

Product Information

Standard Information

• Manufacturer: ILSCO
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ASN-350
• Material: Aluminum Alloy
• Conductor Size: 350 KCMIL
• Inner Diameter: 0.72 inches
• Outer Diameter: 1.105 inches
• Approval: UL 486A/B, CSA
• Temperature Rating: 90 degrees Celsius
• Finish: Electro Tin Plated
