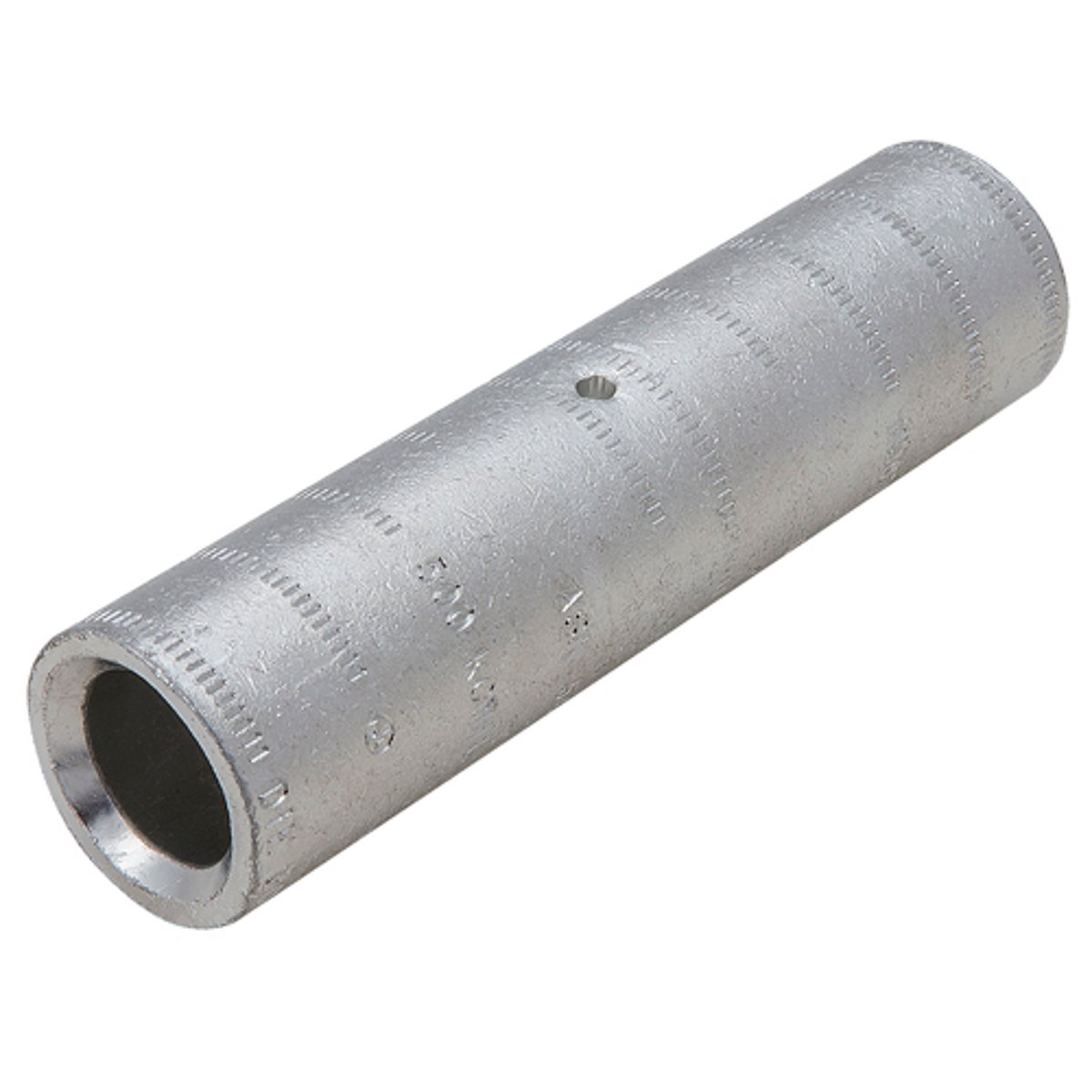

ILSCO ASN-1 Surecrimp Aluminum Compression Sleeve, Conductor Size 1, Tin Plated, UL, CSA

Product Description

The ILSCO ASN-1 is an aluminum compression sleeve designed for use with conductor sizes ranging from two to one AWG. This product is suitable for both aluminum and copper conductors, providing reliable performance in various applications.

• Constructed from high-strength aluminum alloy for maximum conductivity
• Electro tin plated to minimize contact resistance
• Features a pre-filled DE-OX to prevent oxide formation

Product Highlights

The ASN-1 ensures effective and safe connections in electrical installations, compatible with high voltage applications when used correctly.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: ASN-1
• Conductor Size: 2 to 1 AWG
• Conductor Type: Aluminum/Copper
• Material: Aluminum Alloy
• Length: 1.94 inches
• Dimensions: 0.358 inches ID x 0.544 inches OD
• Temperature Rating: 90 degrees C
• Country of Origin: Mexico
