ILSCO ALND-700/750-12-134 AL COMP 700/750 kcmil 9/16-1-3/4 T UL CS

Product Description

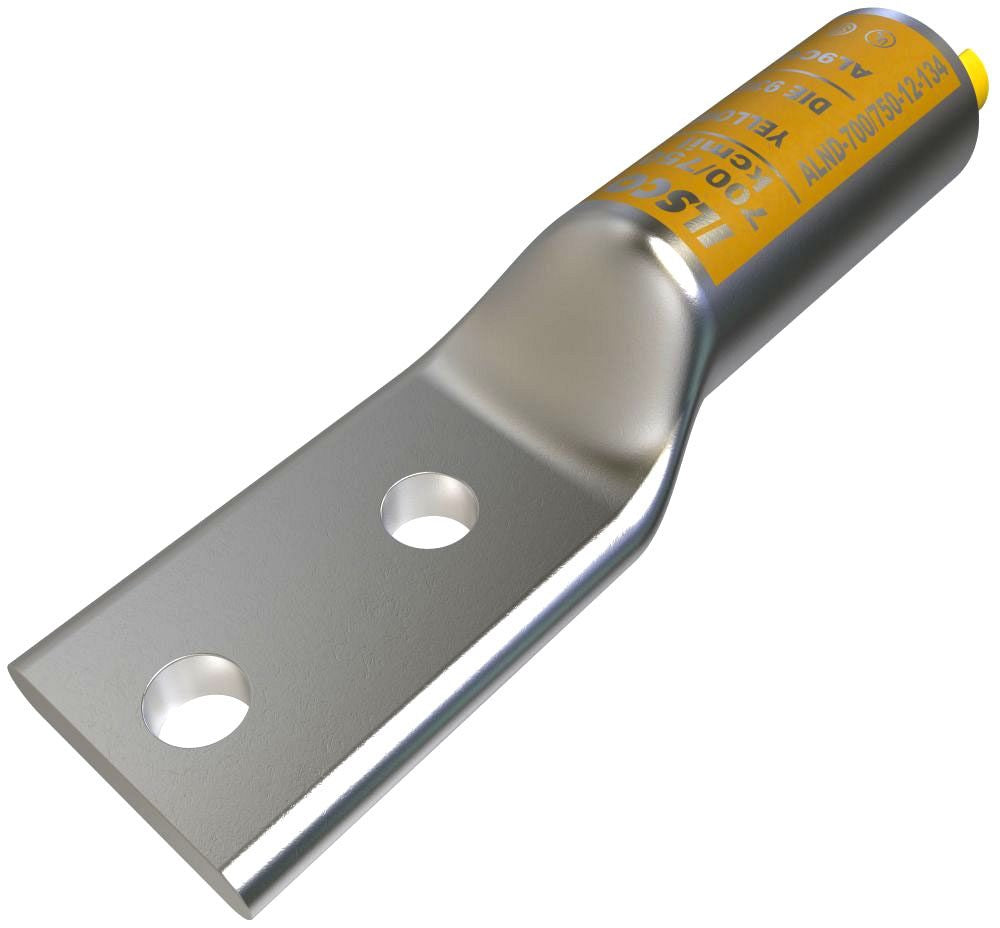

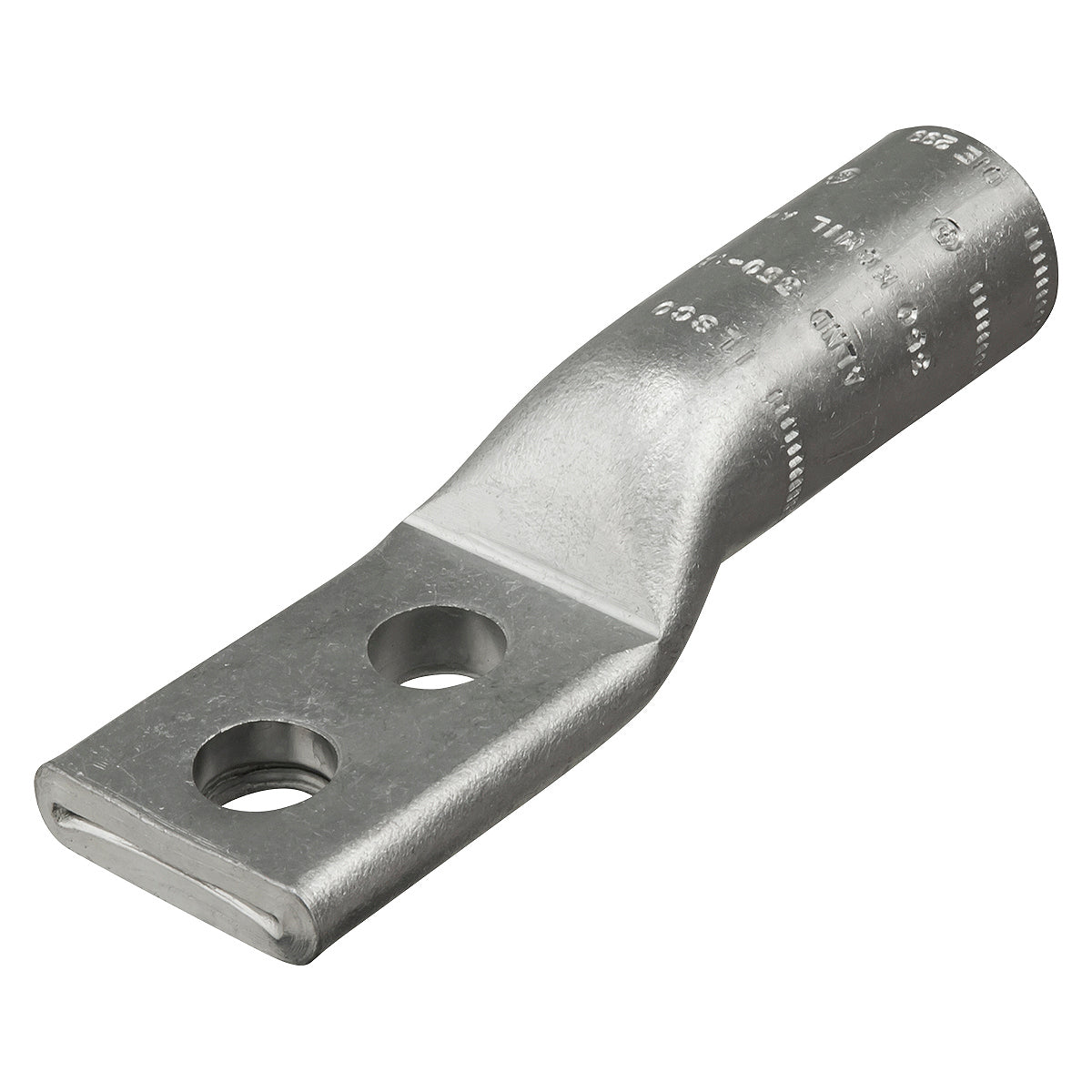

ILSCO ALND-700/750-12-134 is a compression lug designed for aluminum and copper conductors with a size range of 700 to 750 kcmil. This product ensures reliable electrical connections in various applications.

• Manufactured from high-strength aluminum alloy.
• Electro-tin plated to minimize contact resistance.
• Color-coded end cap for easy identification of compression die.

Product Highlights

This compression lug features a chamfered entry which allows easy conductor insertion. It is marked for clear identification to ensure proper crimping. Additionally, it is dual rated for use with aluminum or copper conductors.

Product Information

Standard Information

• Catalog Number: ALND-700/750-12-134
• Manufacturer: ECM Industries

Technical Specifications

• Length: 7.07 inches
• Width: 2.048 inches
• Height: 1.505 inches
• Stud Size: 1/2 inches
• Stud Hole Spacing: 1-3/4 inches
• Material: Electro-tin plated aluminum alloy
• Approval: UL 453G, UL 486A/B, CSA
• Voltage Rating: Up to 600 VAC
