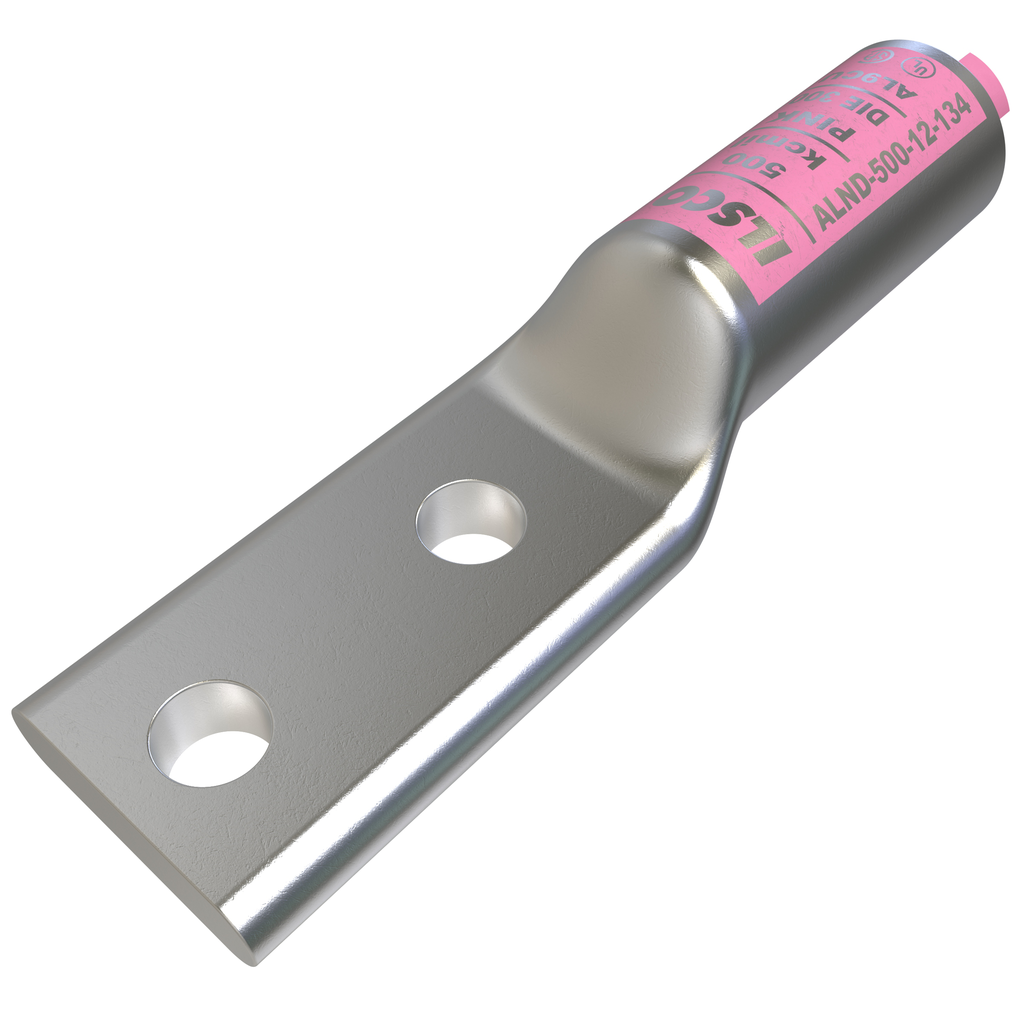

ILSCO ALND-500-12-134 Surecrimp Aluminum Compression Lug 500 KCMIL 2 Holes 1/2in Bolt Size 1-3/4in Hole Spacing

Product Description

The ILSCO ALND-500-12-134 is an aluminum compression lug designed for a conductor size of 500 KCMIL. This product features two holes for mounting and utilizes a bolt size of half an inch with a spacing of one and three-quarter inches between holes. The long barrel design ensures easy connection with the conductor while allowing for optimal crimping performance.

• Manufactured from high strength aluminum alloy.
• Electro-tin plated to ensure low contact resistance.
• Chamfered entry for easy conductor insertion.

Product Highlights

This aluminum compression lug is ideal for various wiring applications. It's dual rated for both aluminum and copper conductors, making it versatile for different installations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: ALND-500-12-134
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Stud Size: 1/2 Inch
• Pad Hole Spacing: 1-3/4 Inch
• UPC: 783669687682
• Country of Origin: Mexico
• Approval: UL 453G, UL 486A/B, CSA
