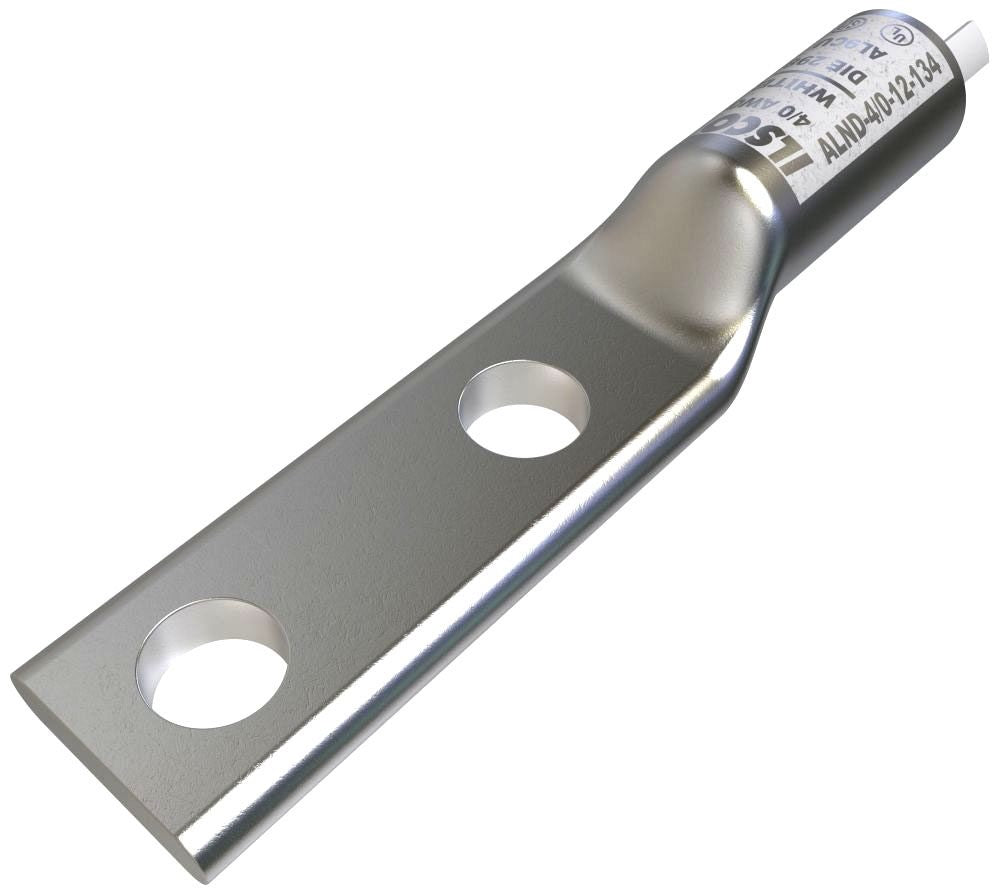

ILSCO ALND-4/0-12-134 Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window

Product Description

The ILSCO ALND-4/0-12-134 is an aluminum compression lug designed for conductor sizes of 4/0. It features two mounting holes and is suitable for use with both copper and aluminum conductors. This lug is ideal for applications requiring reliable connections in electrical installations.

• Constructed for dual-rated applications.
• Offers easy installation with two holes for secure attachment.
• Compatible with copper or aluminum conductors, making it versatile.

Product Highlights

This compression lug provides low contact resistance and is UL and CSA approved, ensuring quality and safety in various electrical projects.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ALND-4/0-12-134
• Conductor Size: 4/0 AWG
• Conductor Material: Aluminum Alloy
• Number of Pad Holes: 2
• Stud Size: 1/2 Inch
• Barrel Length: 1.535 Inch
• Pad Hole Spacing: 1.188 Inch
• Material: Aluminum
