ILSCO AGC-4 Permaground Aluminum Ground Clamp, Conductor Range 250-6, Pipe Sizes 2-1/2 to 4in, UL

Product Description

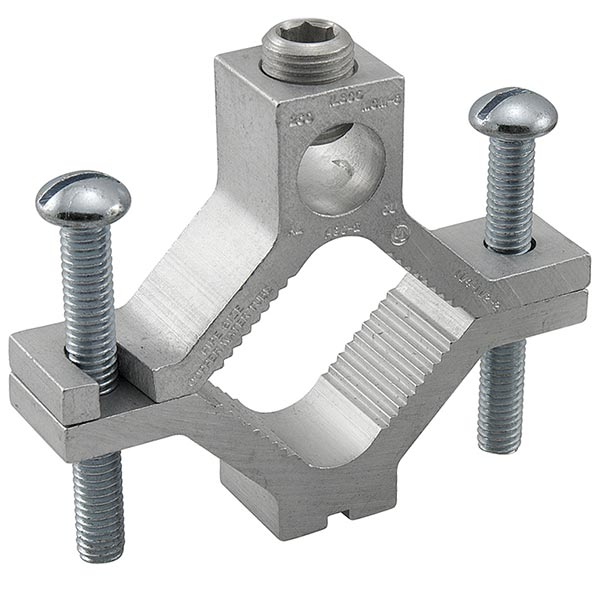

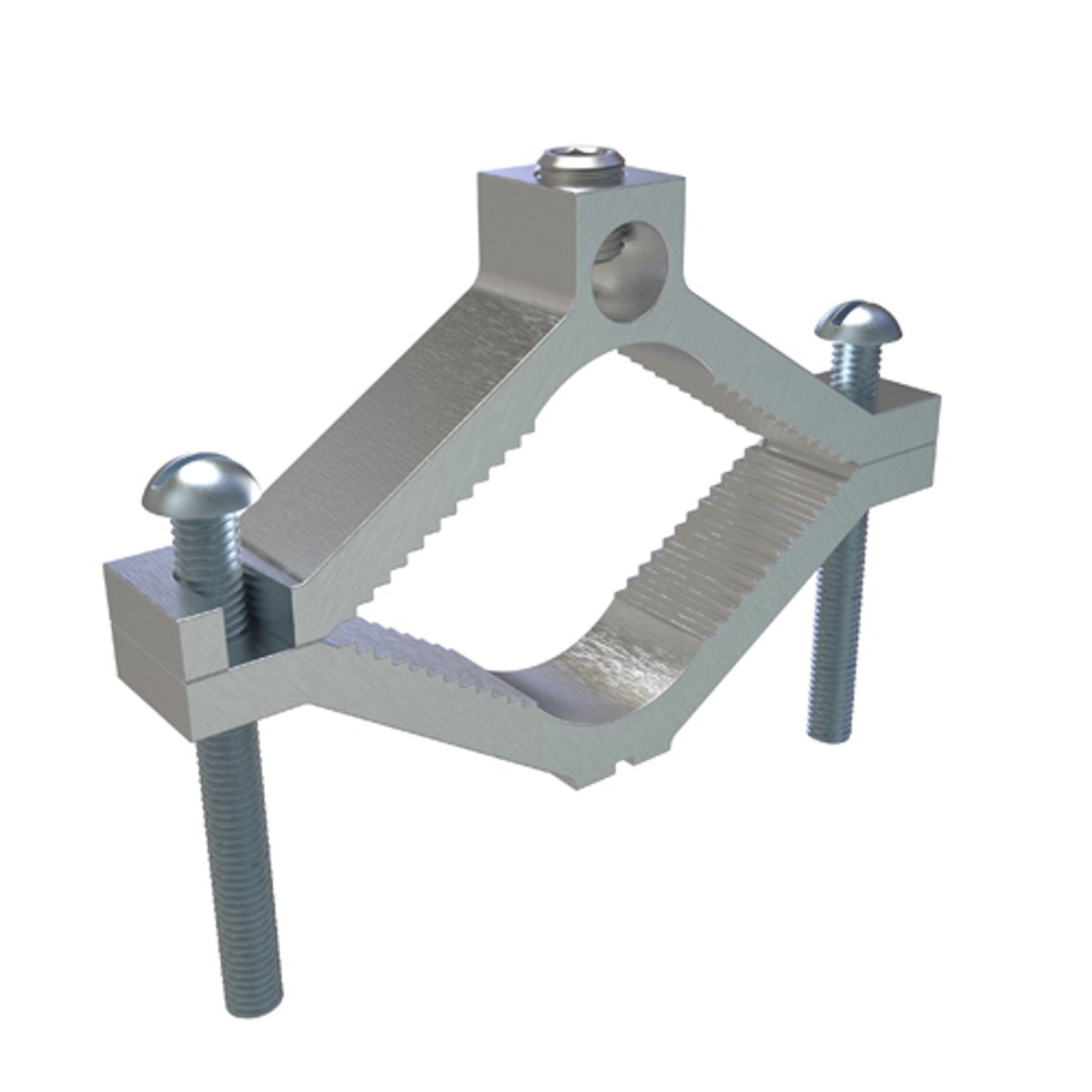

ILSCO AGC4 Permaground Aluminum Ground Clamp is designed for grounding applications with a conductor range from six AWG to 250 kcmil. This ground clamp accommodates pipe sizes from two and a half inches to four inches. It is made from high-strength aluminum to ensure durability and reliable performance.

• Fits conductor sizes from 6 AWG to 250 kcmil
• Suitable for pipe sizes ranging from 2-1/2 inches to 4 inches
• UL listed for safety and compliance

Product Highlights

This clamp features a clear plated finish that provides low contact resistance. It is versatile for grounding both aluminum and copper conductors to various types of pipe including copper water pipe, galvanized pipe, or steel conduit.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: AGC-4
• UPC: 783669000641
• Dimensions: 6-5/16 inches L x 1 inch W
• Finish: Clear Plated
• Material: Aluminum
• Pipe Size: 2-1/2 to 4 inches
• Voltage Rating: 600 VAC
