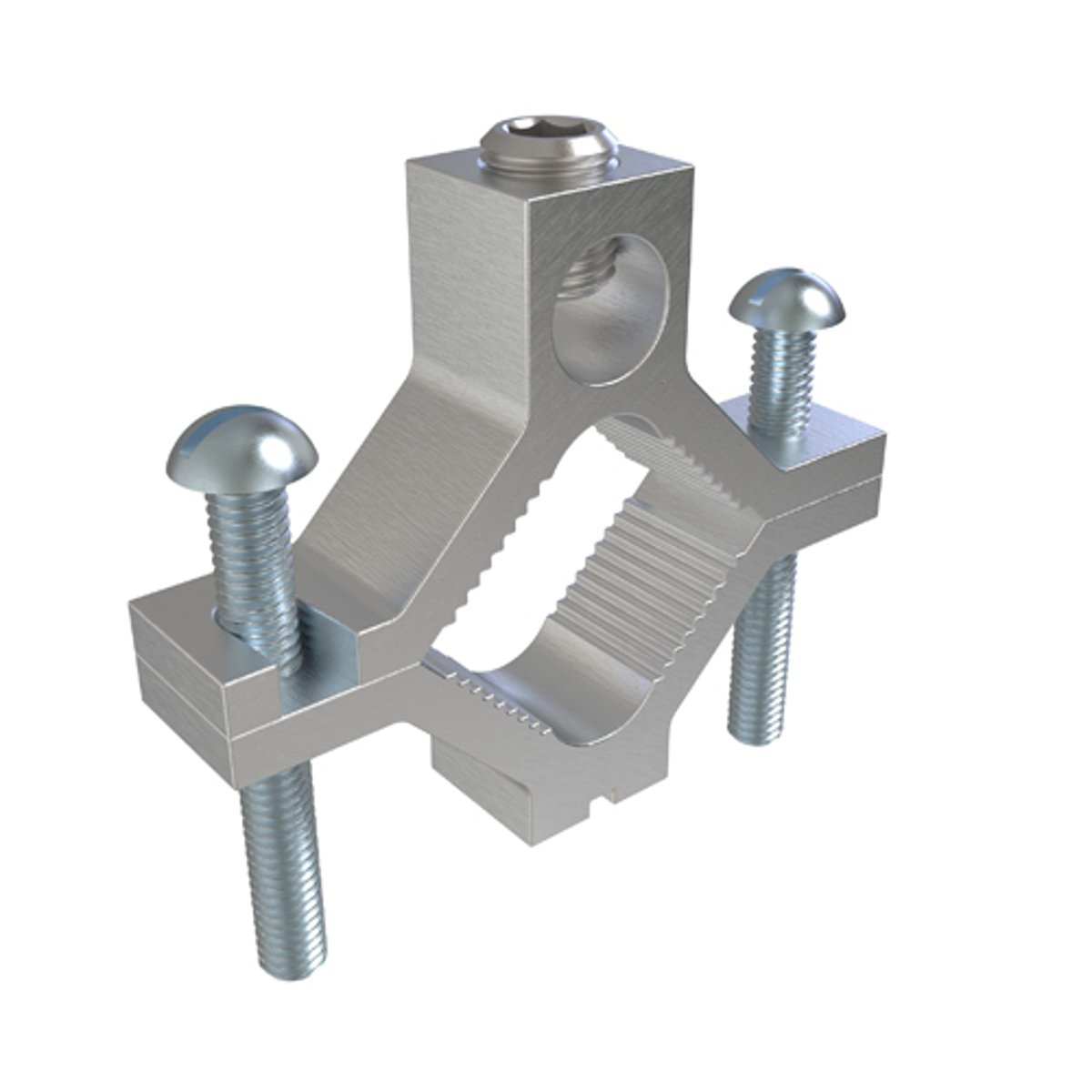

ILSCO AGC-2 Permaground Aluminum Ground Clamp Conductor Range 250-6 Pipe Sizes 1-1/4 to 2in UL

Product Description

The ILSCO AGC-2 is a Permaground Aluminum Ground Clamp suitable for various grounding applications. This clamp is designed for conductors ranging from 250 KCMIL down to 6 AWG. It accommodates pipe sizes from one and one-quarter inches to two inches, making it versatile for different installations.

• UL approved for safety and reliability.
• Constructed from clear coated high strength aluminum alloy.
• Simple installation with two screw connectors to pipe and one screw wire connector.

Product Highlights

This ground clamp provides low contact resistance, ensuring effective grounding in various construction settings.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: AGC-2
• Conductor Size: 6 AWG to 250 KCMIL
• IPS Size: 1-1/4 to 2 Inch
• Material: Clear Coated High Strength 6061-T6 Aluminum Alloy
• UPC: 783669000627
• Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
• Used On: Aluminum/Copper Conductor to Copper Water Pipe, Galvanized Pipe or Steel Conduit
