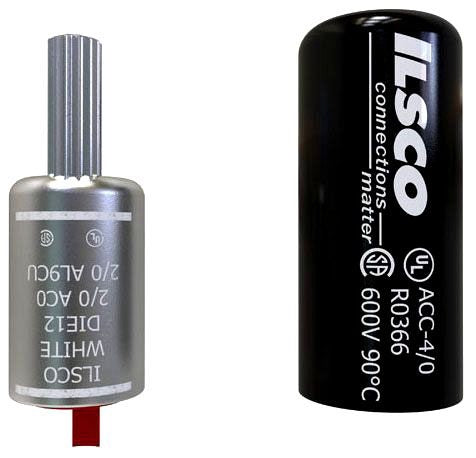

Ilsco ACO-2/0 Aluminum Compression Pigtail Adaptor Offset, Conductor Size 2/0

Product Description

The Ilsco ACO-2/0 is an aluminum compression pigtail adaptor designed for conductor size 2/0 AWG. This product is UL and CSA approved, ensuring safety and reliability in electrical connections. It is suitable for various applications where aluminum or copper conductors are used and features a dual-rated pin size for versatility.

• Compatible with aluminum and copper conductors
• Compliant with UL 486A/B and CSA standards
• Facilitates easy installation and reliable conductivity

Product Highlights

This adaptor provides efficient connectivity and excellent crimping characteristics. It allows for easy insertion of conductors and is designed to prevent contaminants from entering the connector before usage.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ACO-2/0
• Conductor Size: 2/0 AWG
• Approval: UL 486A/B, CSA
• Material: High Strength Aluminum Alloy
• Pin Size: 11/32 Inch Dia x 27/32 Inch L
• UPC: 783669009507
• Cover Size: 2 Inch L
• Type: Offset Pigtail
