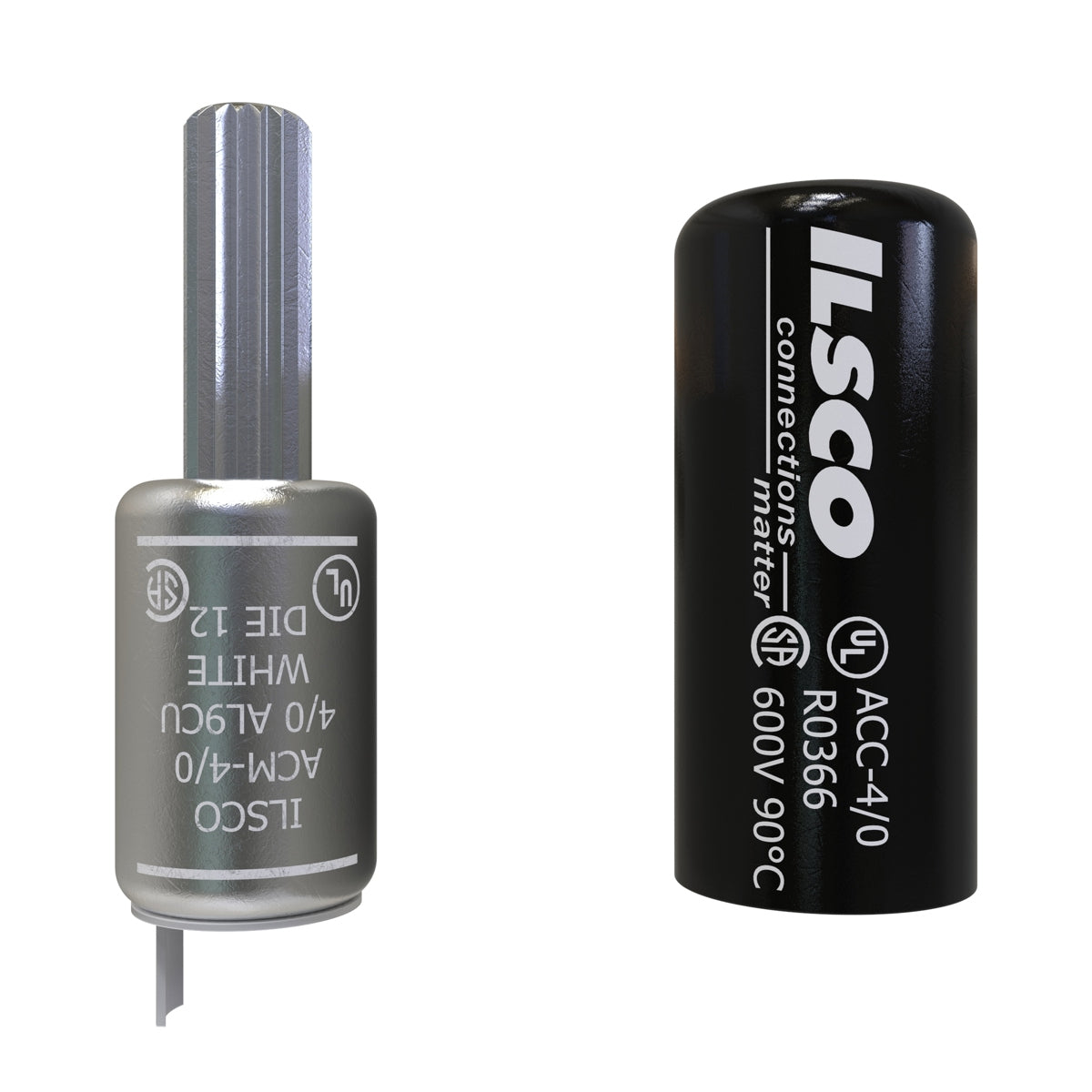

ILSCO ACM-4/0 Aluminum Compression Pigtail Adaptor Conductor Size 4/0 Tin Plated UL CSA

Product Description

ILSCO ACM-4/0 is an aluminum compression pigtail adaptor designed for conductor size four aught. It is UL and CSA listed for safety and reliability. The product supports aluminum and copper conductors, ensuring connectivity in electrical applications.

• UL and CSA approval
• Compatible with copper and aluminum conductors
• Includes insulating covers for enhanced safety

Product Highlights

The ACM-4/0 provides a solid connection for large conductors. It prevents oxides from forming, ensuring good conductivity. Quick installation is possible with easy conductor insertion.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: ACM-4/0
• Conductor Material: Copper/Aluminum
• Conductor Size: 4/0 AWG
• Pin Size: 27/64 Inch Diameter x 1-7/32 Inch Length
• Cover Size: 2 Inch Length
• Approval: UL 486A/B, CSA
• UPC: 783669009149
• Country of Origin: Mexico
