Ilsco 2IACL-500 Al Cmp 500 9/16-1-3/4 T Ul

Product Description

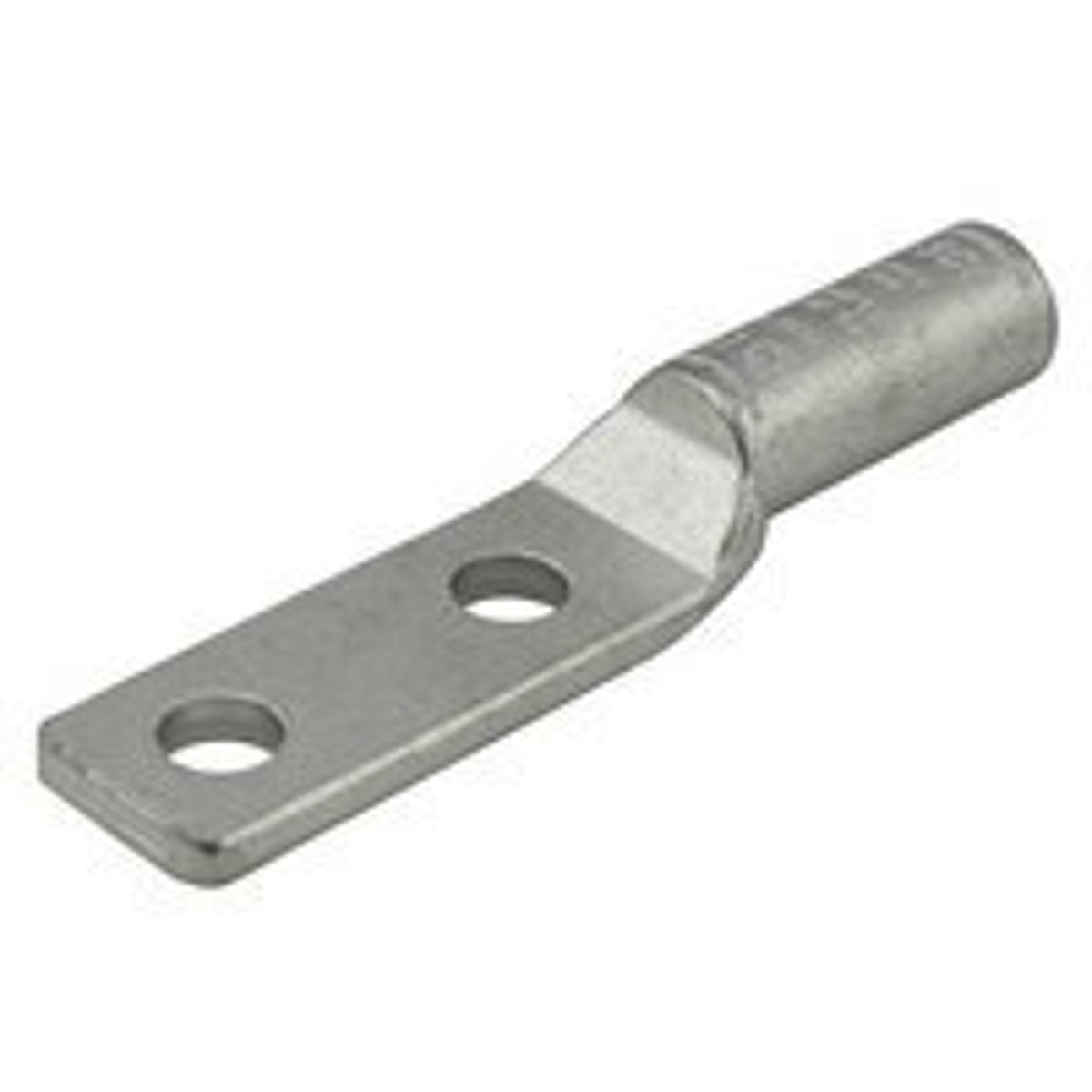

The ILSCO 2IACL-500 is an aluminum compression lug, dual rated for copper and aluminum conductors with a conductor size of 500 kcmil. It features 2 holes, a 1/2in bolt size, and 1-3/4in hole spacing. Constructed from high-strength aluminum alloy and electro-tin plated, it ensures reliable connectivity for various electrical applications.

• Dual Rated
• Tin Plated
• UL Listed
• CSA Certified

Product Highlights

The ILSCO 2IACL-500 compression lug is ideal for creating secure and long-lasting connections.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: 2IACL-500
• Country of Origin: US

Technical Specifications

• Catalog Number: 2IACL-500
• Manufacturer: ECM Industries
• Brand: ILSCO
• UPC: 783669929447
• GTIN: 00783669929447
• Conductor Type: Aluminum/Copper
• Additional Class Attributes: Barrel Marking
• Barrel Type: Long
• Connection: Compression
• Contains DE-OX: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-14
• ILSCOs Die Index Number: 14
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No
• Conductor Material: Copper
• Connector Finish: Tin
• Insulation: NA
• Material: Aluminum Alloy
• Mounting Bolt/Stud Size: 1/2
• Temperature Rating: 90 C
• Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil
• Conductor Range CU Solid (Primary, run, main, line): NA
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil
• Conductor Range AL Solid (Primary, run, main, line): NA
• Expanded Conductor Range: 500 kcmil - 4/0 Str
• Flex Conductor Range: NA
• Color: Silver
• Color Code: Blue
• Voltage Rating: 600 V AC
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: NA
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207
• Barrel Length (IN): 2.625
• Barrel Length (mm): 66.675
• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Height (IN): 1.214
• Height BX (IN): 2.75
• Height (mm): 30.8356
• Inside Diameter (IN): 0.844
• Inside Diameter (mm): 21.4376
• Length (IN): 6
• Length (mm): 152.4
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 1.152
• Outside Diameter (mm): 29.2608
• Tang Length (IN): 3.125
• Tang Length (mm): 79.375
• Tang Thickness (IN): 0.375
• Tang Thickness (mm): 9.525
• Tang Width (IN): 1.25
• Tang Width (mm): 31.75
• Width (IN): 1.25
• Width BX (IN): 5
• Width (mm): 31.75
• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• Applications: Aluminum Compression Lug
• Bolt Size: 1/2 IN
• Voltage: 35,000 Volt
• Sub Brand: ILSCO
• 12-Digit UPC: 783669929447
• MDM Pkg GTiN: 00783669929447
• Product UPC: 78366992944
• Die Code: 14
• Conductor Size: 500 kcmil
• Country of Origin: US
• Overall Length: 6 in
• Specifications: 1-3/4 in Mounting Hole Spacing
• Stud Size: 1/2 in
• Tongue Size: 3-1/4 in L x 1-1/4 in W
• Type: 2-Hole Type IACL
