Ilsco 2IACL-4/0 al cmp lug 4/0 AWG

Product Description

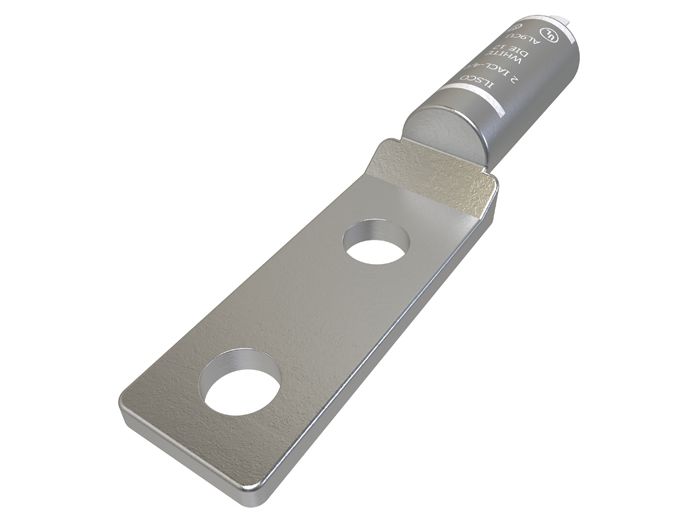

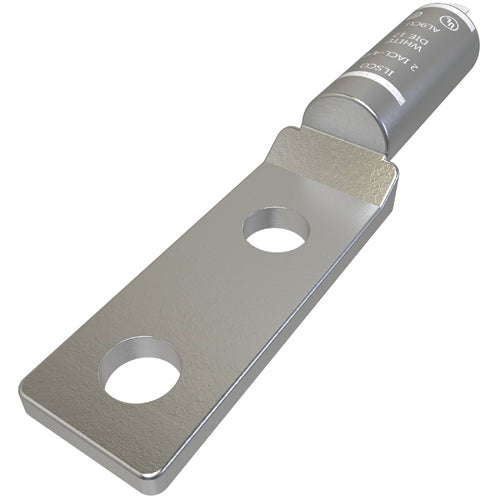

The ILSCO 2IACL-4/0 AL CMP Lug is designed for terminating connector with 1-3/4 in mounting hole spacing. Manufactured from high-strength aluminum alloy, it provides maximum conductivity and excellent crimping characteristics. It is suitable for use in circuits rated 35KV or less.

• Provides Maximum Conductivity and Excellent Crimping Characteristics
• Manufactured from High Strength Aluminum Alloy
• Suitable for Use in Circuit Rates 35KV or Less

Product Highlights

The ILSCO 2IACL-4/0 lug is electro-tin plated and color-coded, preventing oxides from forming. It is rated to 90 degree C.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: 2IACL-4/0
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 2IACL-4/0
• Manufacturer: Ilsco
• Product Series: 2IACL
• Family Series: Ilsco Terminals, 2IACL Series
• Description: AL CMP 4/0 9/16-1-3/4 T UL
• Wire Size Range: 1-4/0 AWG
• Stud Size: 1/2 in
• Number of Conductors: 1
• Material: Aluminum Alloy
• Conductor Size: 4/0 AWG
• Conductor Type: Aluminum/Copper
• Country of Origin: US
• Die Code: 12
• Manufacturer Name: ECM Industries
• Overall Length: 5-3/4 in
• Series: 2IACL
• Specifications: 1-3/4 in Mounting Hole Spacing
• Temperature Rating: 90 deg C
• Tongue Size: 3-1/4 in L x 1-1/4 in W
• Tongue Type: Narrow
• Type: 2-Hole Dual Rated
• Voltage Rating: 600 V AC
• Barrel Size: 1-7/8 in L
• Barrel Type: Chamfered
• Length: 5.75 in
• Width: 1.25 in
• Height: 0.97 in
• UNSPSC: 39121448
• Catalog Number: 2IACL-4/0
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 453GCSA LR-29601PROP65: it is not known to contain any chemicals associated with this regulation
