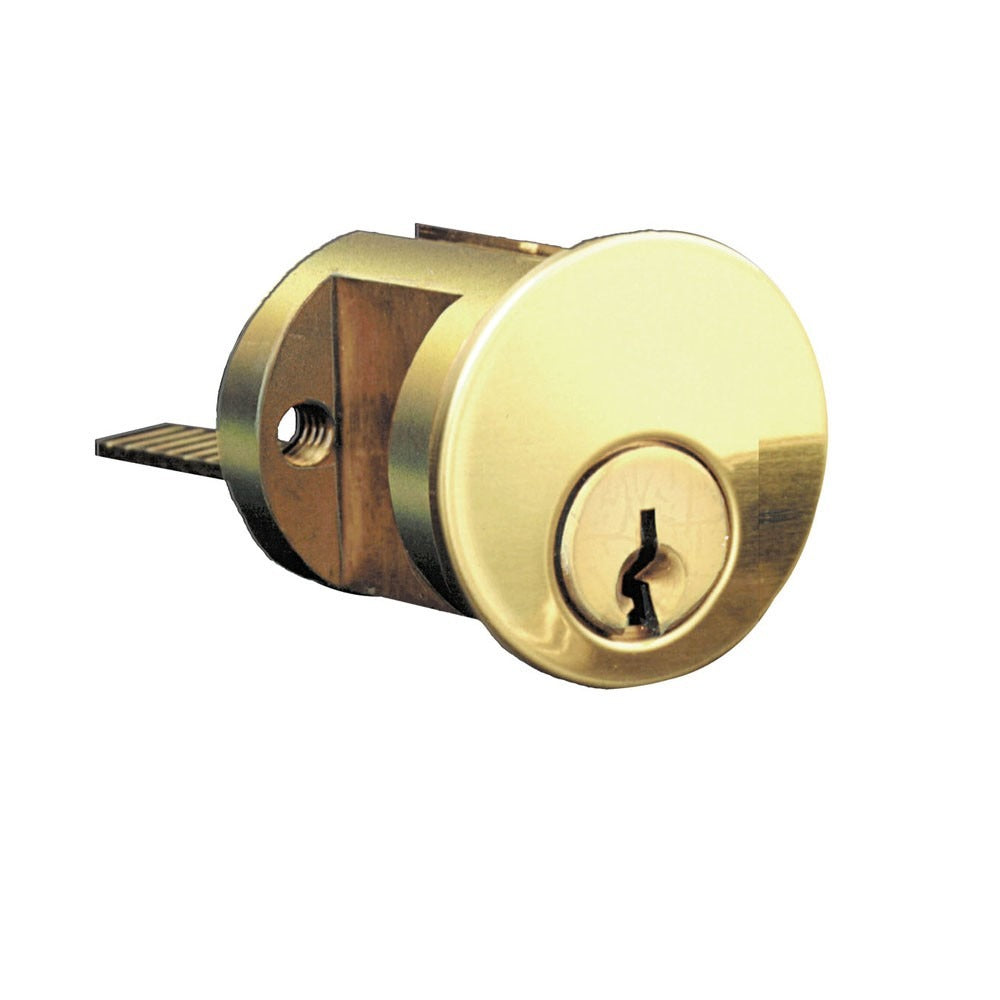

Ilco 7075KS1003 5 Pin Rim Cylinder Kwikset Keyway Bright Brass

Product Description

The ILCO 7075KS1003 is a keyed different 5-pin rim cylinder designed for rim lock applications in residential and light commercial entry doors. It features a screw cap design and is cut to the Kwikset keyway, making it a direct-fit option where Kwikset-profile keys are already in use. The bright brass finish provides a clean, traditional appearance suitable for standard door hardware installations. This cylinder ships as a single unit and is typically installed by locksmiths or experienced door hardware technicians. The keyed different configuration means each unit operates on its own unique key.

This rim cylinder is suited for use in rim lock applications on exterior and interior doors where a surface-mounted deadbolt or rim latch mechanism is installed. It fits installations requiring a Kwikset keyway profile and is appropriate for residential entry doors, apartment units, and light commercial settings. The screw cap allows for secure mounting to the rim lock case. Install scenarios typically include replacement of worn or rekeyed cylinders in existing rim lock hardware.

Key Features

• 5-pin tumbler configuration for standard residential security depth
• Keyed different — each cylinder ships with its own unique key cuts
• Kwikset keyway profile for compatibility with existing Kwikset-profile key systems
• Screw cap design for secure attachment to rim lock cases
• Bright brass finish for a traditional, polished appearance
• Compact form factor suitable for standard rim lock cylinder pockets

Compatibility

Designed as an OEM-style replacement rim cylinder for rim lock applications requiring a Kwikset keyway profile. Specific model compatibility should be verified against the existing rim lock hardware before installation.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified door hardware technician. Power is not required for this mechanical cylinder, but the door should be secured open and the lock case fully disengaged before cylinder removal or replacement. Use the screw cap to fasten the cylinder firmly to the rim lock case and verify smooth key operation and full cam engagement before returning the door to service. Do not force the cylinder into the lock case if resistance is felt, as misalignment can damage the cam or tailpiece.
