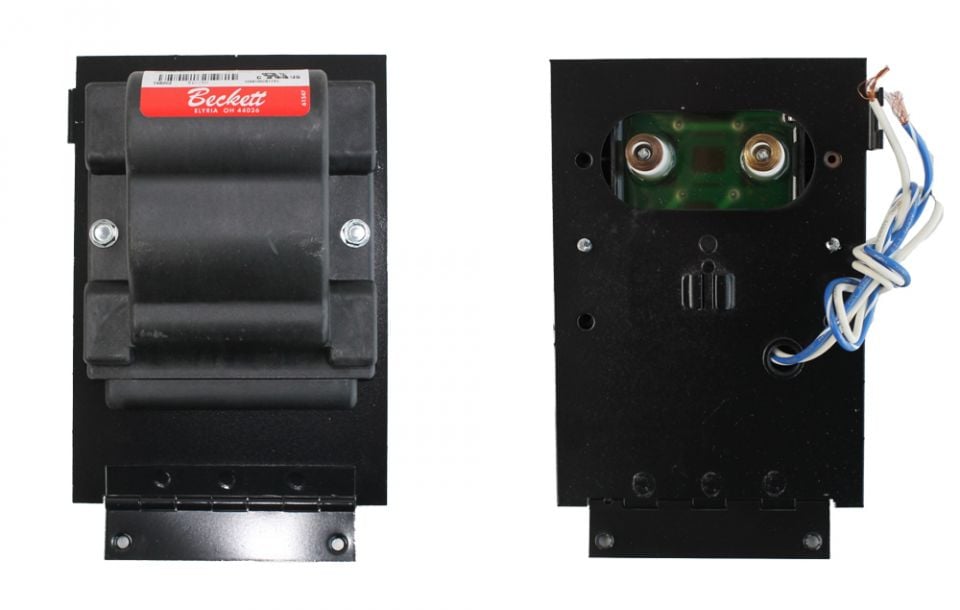

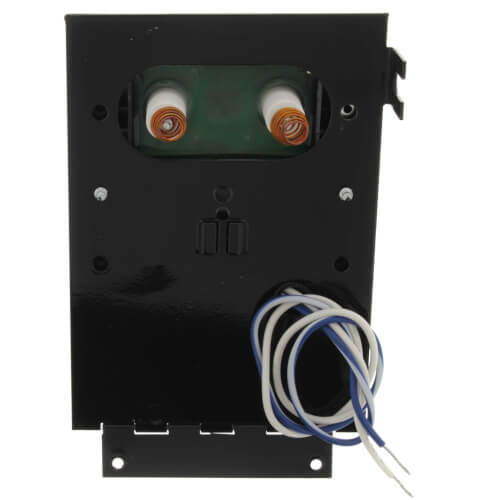

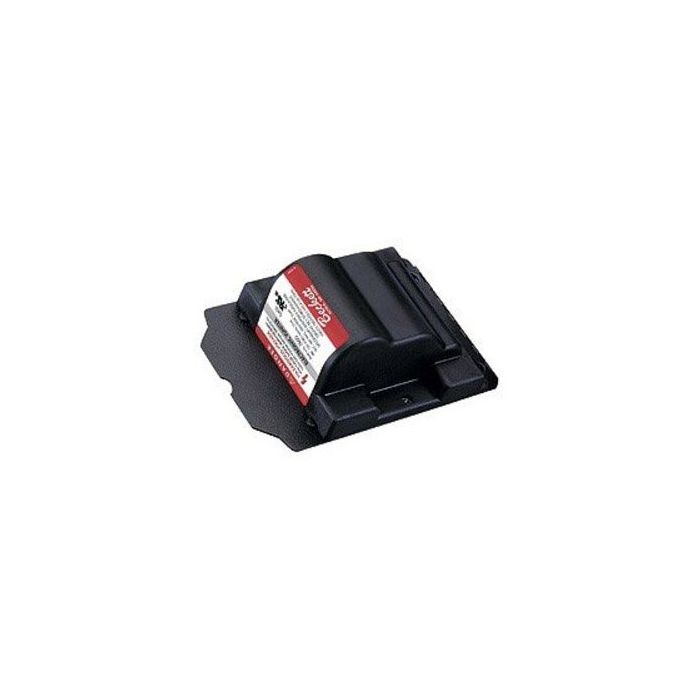

IGNITERS 51825U Electronic Oil Igniter with Wayne M Base

Product Description

The IGNITERS 51825U is an electronic oil igniter tailored for Wayne M burners. It operates at one hundred twenty VAC and sixty Hz. This igniter includes vacuum encapsulation that ensures moisture resistance, effective heat dissipation, and electrical insulation. The thermoplastic casing delivers impact resistance and safeguards against chemicals.

• Input: 120 VAC, 60 Hz, 35 VA
• Output Voltage: 6 kV RMS, 20 kV Peak
• Secondary Mid-point Ground: True

Product Highlights

This model is UL recognized in both the US and Canada.

Product Information

Standard Information

• Manufacturer Part Number: 51825U
• UPC / GTIN: 045558060281

Technical Specifications

• Input Voltage: 120 VAC
• Input Frequency: 60 Hz
• Input Power: 35 VA
• Output Voltage: 6 kV RMS, 20 kV Peak
• Output Current: 35 mA RMS
• Operating Temperature: -20 to 150 F
• Storage Temperature: -40 to 150 F
• Used With: Wayne M
