IEI 212ILM-AL Linear 212iLM-AL Indoor/Outdoor Mullion Mount Keypad

Product Description

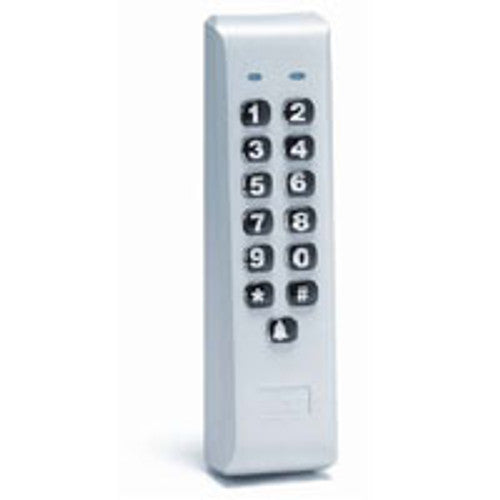

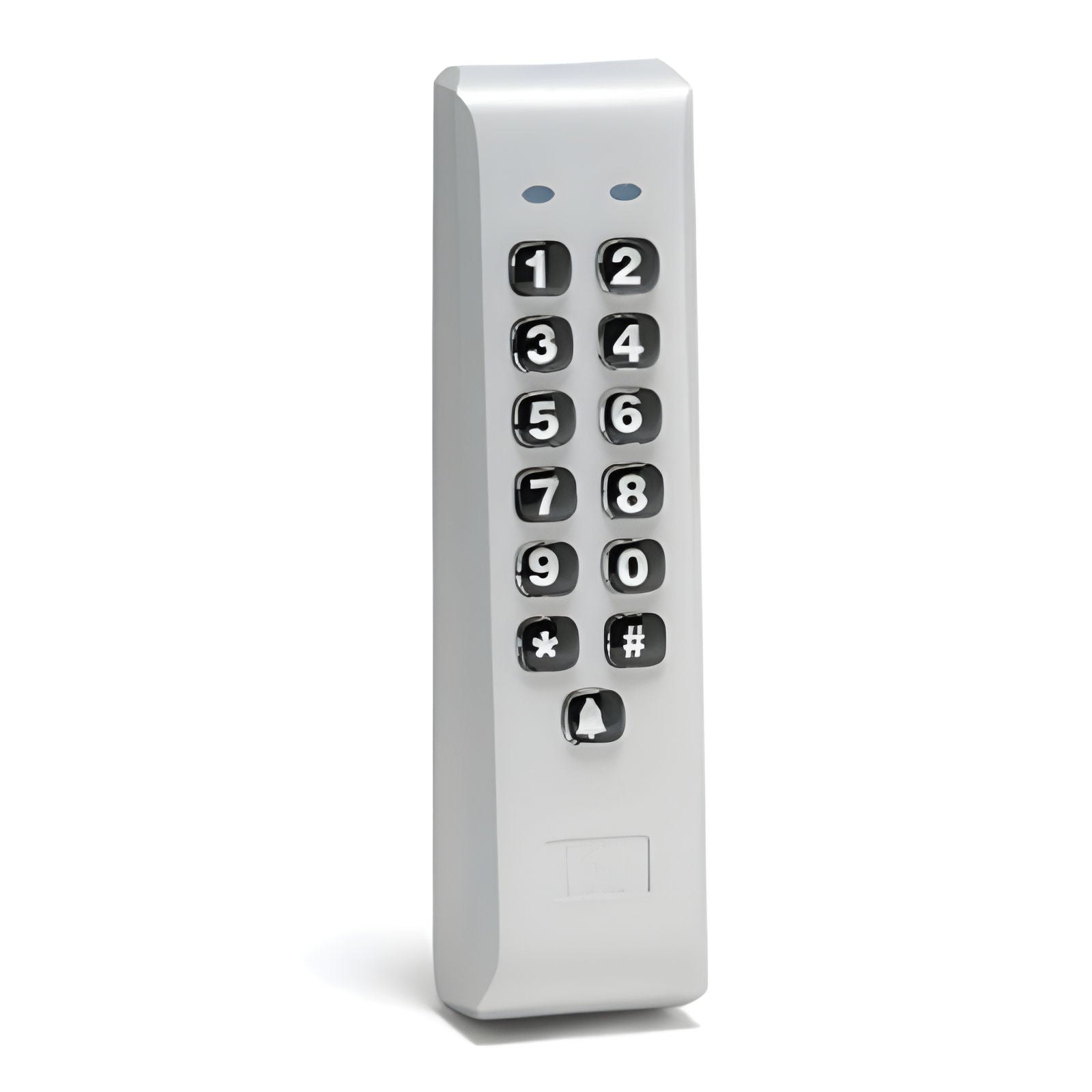

The Linear 212iLM-AL from IEI is a mullion mount keypad designed for both indoor and outdoor use. This device features a weather-resistant aluminum enclosure and is compact for easy installation. With backlit keys and a user capacity of up to 120 PINs, this keypad is suited for various access control needs.

• Durable aluminum finish;
• Supports up to 120 programmable PINs;
• Surface mount installation; no backbox required.

Product Highlights

The Linear 212iLM-AL offers reliable performance and modern design, ensuring effective access control.

Product Information

Standard Information

• Model: 212iLM-AL
• Type: Keypad

Technical Specifications

• Operating Voltage: 12-24V AC/DC (auto-adjusting)
• Current Draw: 53 mA @ 12VDC, 108 mA @ 24VAC
• Relay Outputs: Main relay: 2A @ 30V; Doorbell relay: 1A @ 30V
• Operating Temperature: -20°F to 130°F
• Dimensions: 6.48 inches H x 1.71 inches W x 1.13 inches D
• Installation: Surface mount (no backbox required)
• Application Type: Perimeter | Gate | Door | Vehicle | Pedestrian | Traffic Control
• Installation Type: Residential | Commercial
• Weatherproof Rating: Rated for indoor/outdoor usage
• Users: 120
