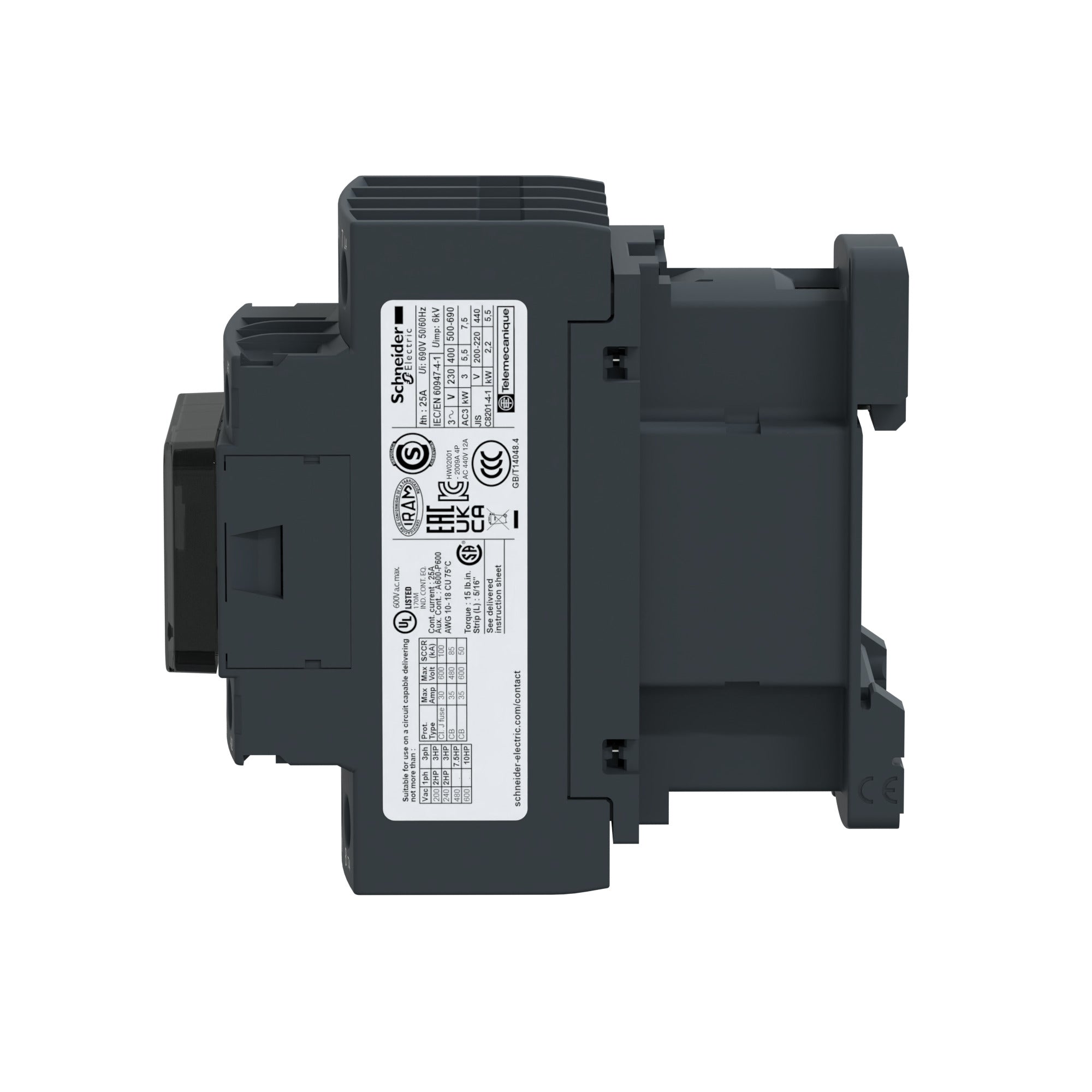

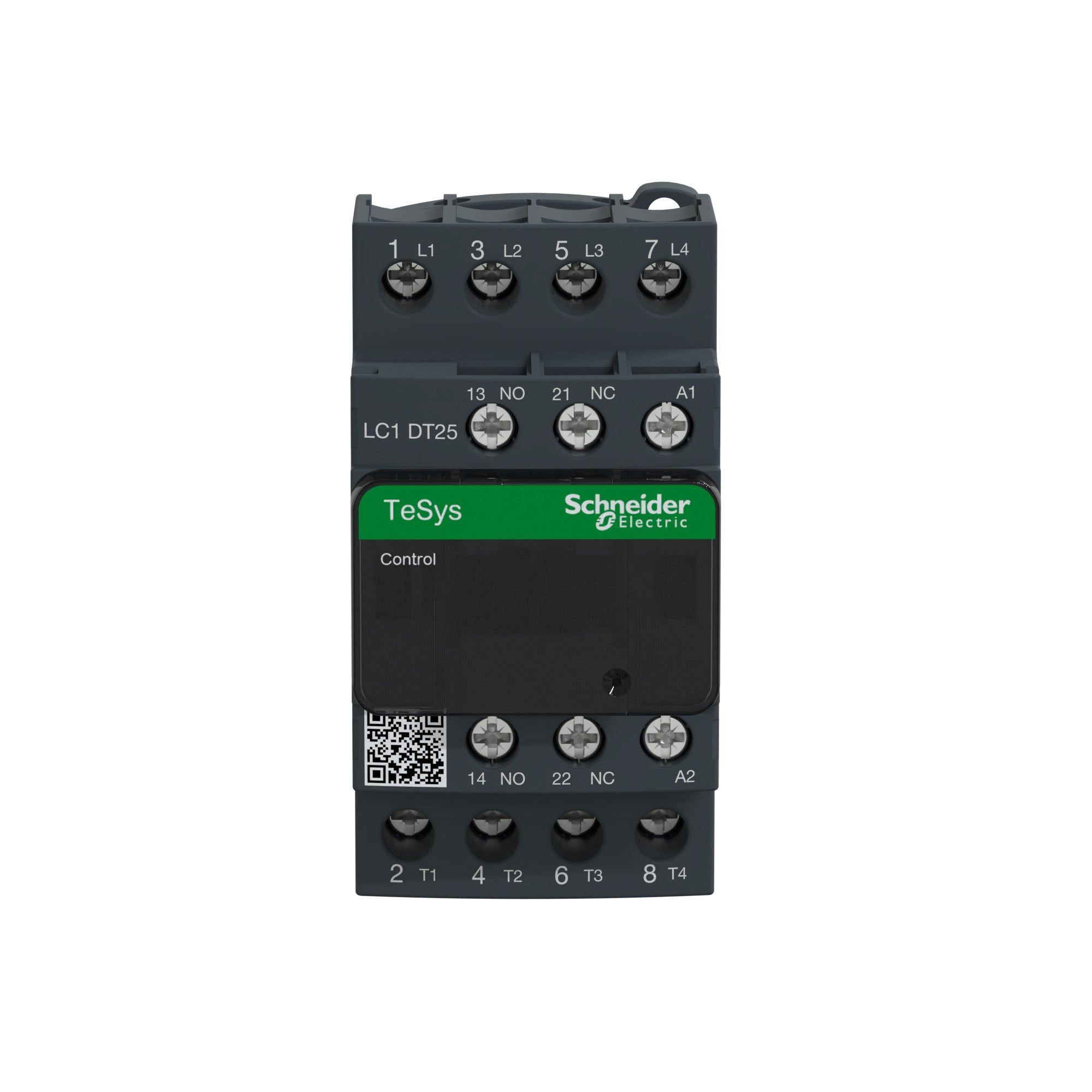

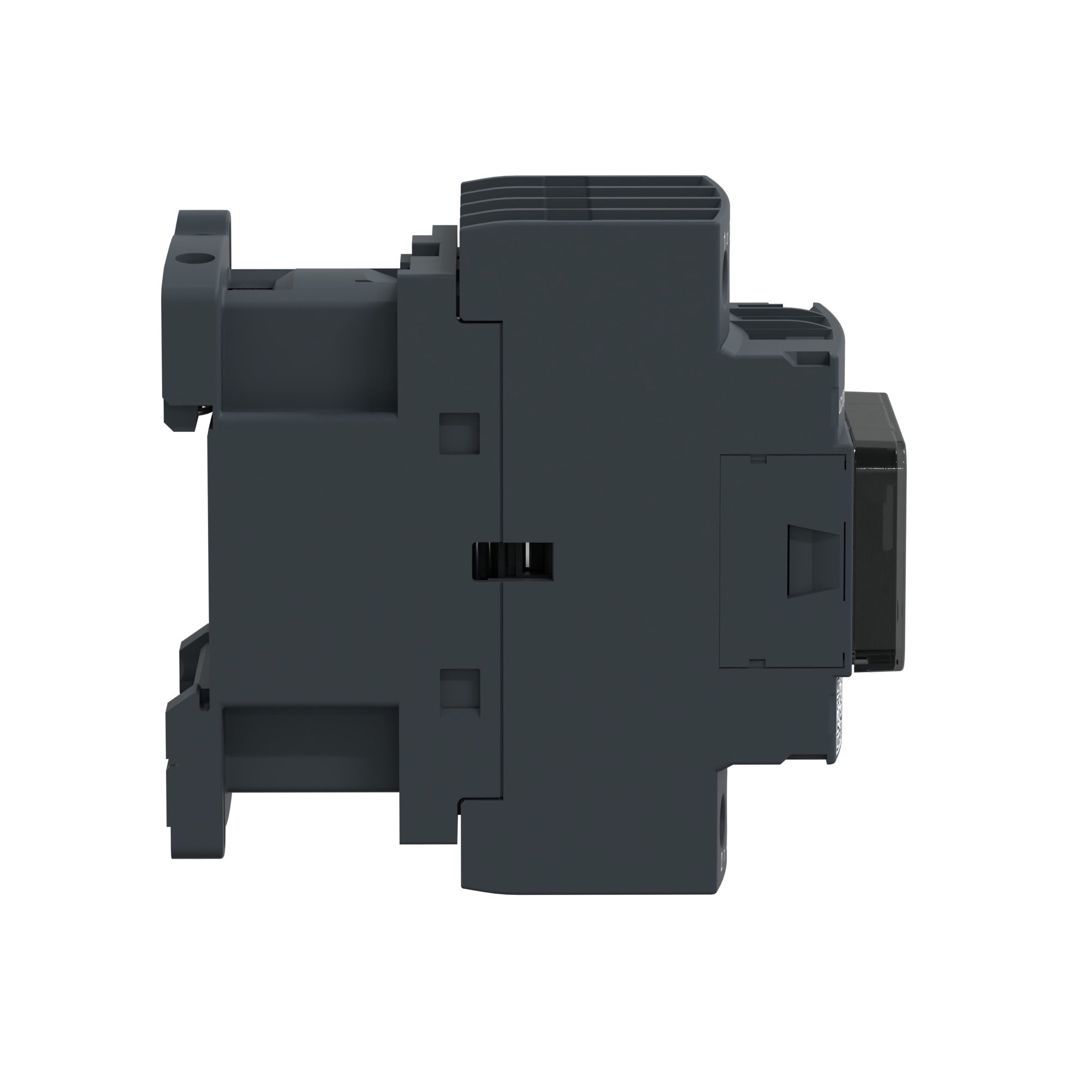

Schneider Electric LC1DT25F7 600 VAC 25 Amp 4-Pole Contactor

Product Description

The Schneider Electric LC1DT25F7 is a 4-pole IEC contactor designed for industrial motor control and automation systems. It operates at 600 VAC and supports up to 25 amps. This contactor is suitable for a wide range of applications, including resistive loads and inductive motor applications.

• 25 amp resistive load rating
• 110 VAC 50/60 Hz coil
• 1 normally open, 1 normally closed auxiliary contact

Product Highlights

This 4-pole contactor can be mounted on a DIN rail or directly to a panel. It features screw clamp terminals for secure connections and is certified to multiple international standards. The compact design is ideal for space-constrained installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: LC1DT25F7
• Country of Origin: Indonesia
• Warranty: 18 months

Technical Specifications

• Full Load Current: 25 amps
• Voltage: 600 VAC, 110 VAC coil
• Poles: 4
• Mounting: DIN rail or panel
• Dimensions: 3.35 inches height, 1.77 inches width, 3.62 inches depth
• Weight: 0.80 lbs
• Certifications: UL, CSA, IEC, CCC, EAC, Marine
• Compliance: RoHS, REACh
