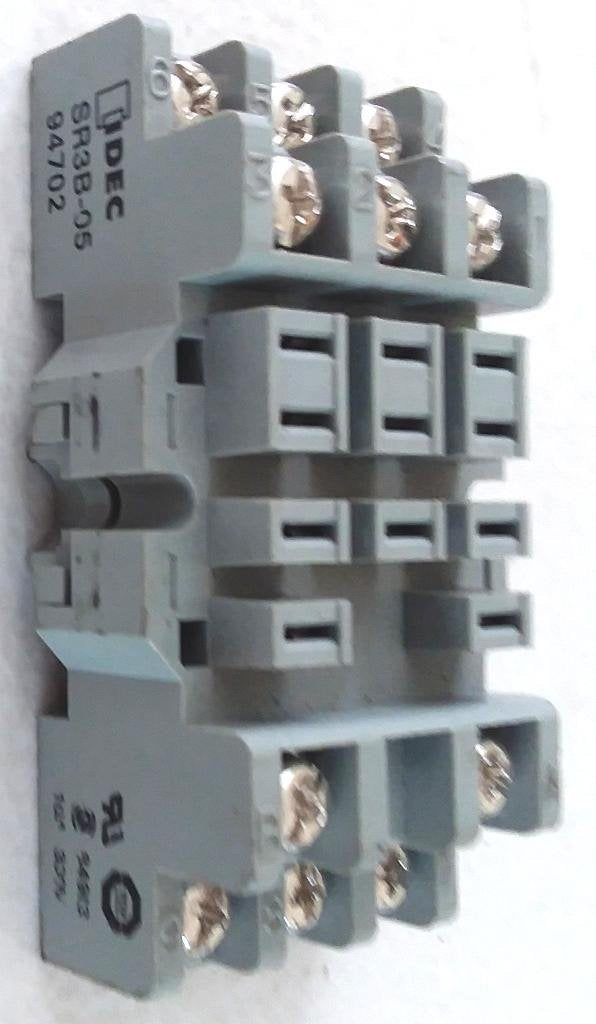

IDEC SR3B-05 Relay Socket 250V 11 Pin Screw Terminal DIN Rail Standard

Product Description

The IDEC SR3B-05 is a high-quality relay socket designed for industrial applications. It offers a robust solution for mounting and connecting relay components securely on DIN rails or panels. This socket is compatible with the RR3B relay and utilizes a screw terminal for reliable wire connections.

• Supports 3PDT configuration with 11-pin blade connections.
• Capable of handling up to 300 VAC and 15 amps.
• Operates effectively within temperature ranges of -25 to 40 degrees Celsius.

Product Highlights

Known for its reliable performance, the IDEC SR3B-05 ensures long service life and stability in demanding environments, thanks to its durable build and high-quality materials.

Product Information

Standard Information

• Brand: IDEC
• MPN: SR3B-05
• Rated Voltage: 300 VAC

Technical Specifications

• Amperage Rating: 15 A
• Configuration: 3PDT, 11 Pins
• Mounting Type: DIN Rail or Panel Mount
• Terminal Type: Screw
• Operating Temperature Range: -25 to 40 degrees Celsius
• Standards/Approvals: UL Listed, cULus Listed, CSA Certified, CE Certified
• Use Case: Compatible with RR3B Relay
