Idec RV8S-L-D24-D24 solid state relay SPST-NO 3.5 A 24 VDC 6mm

Product Description

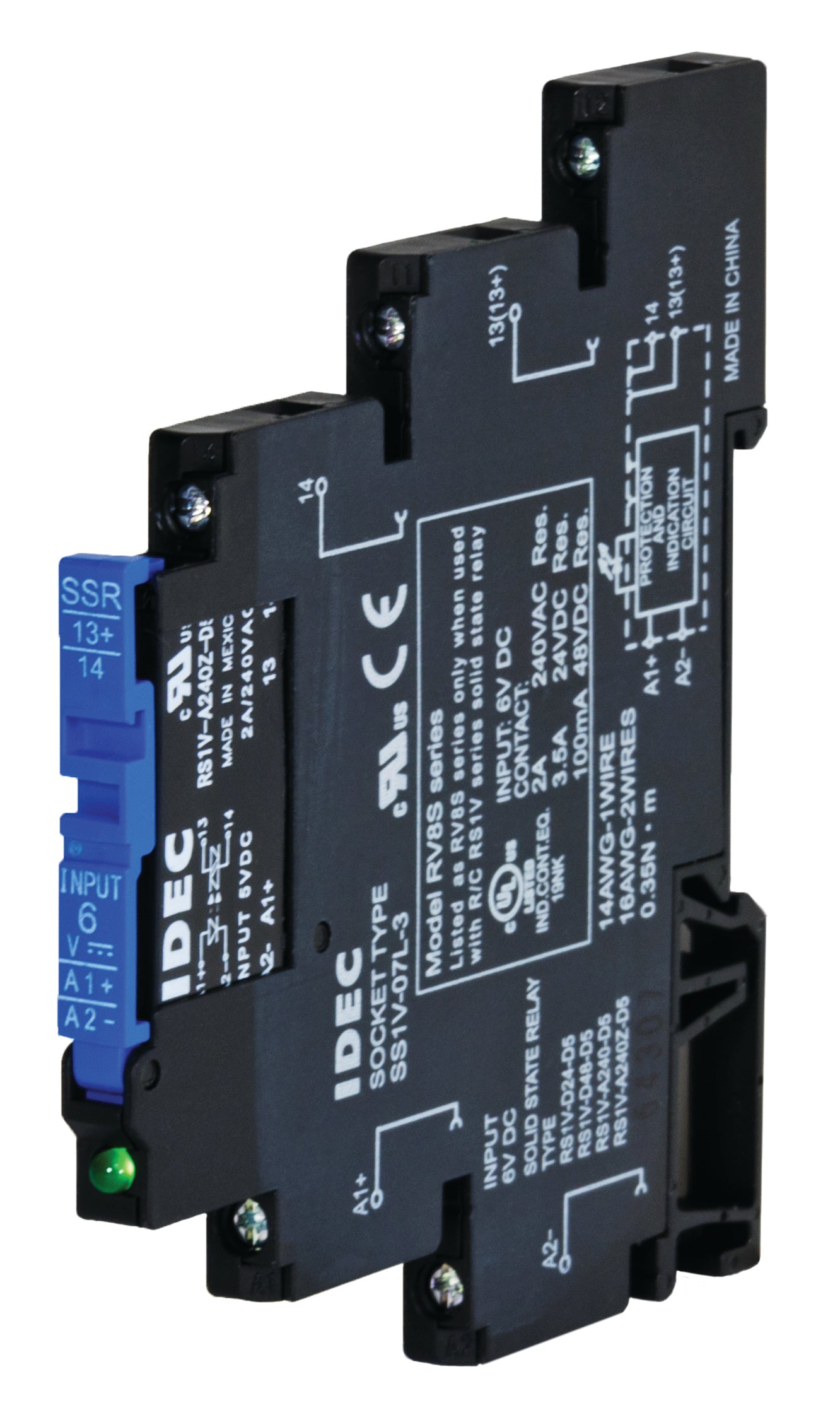

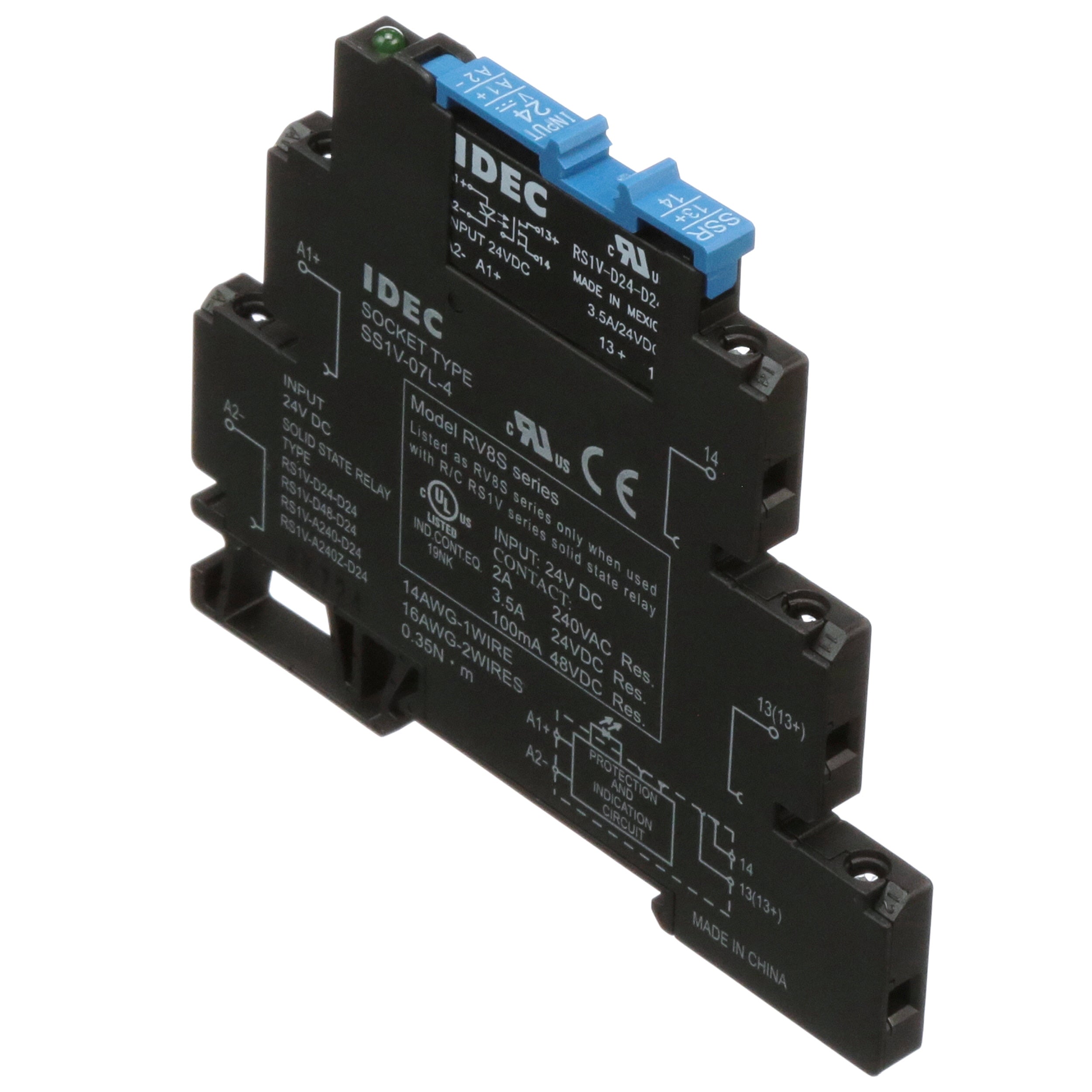

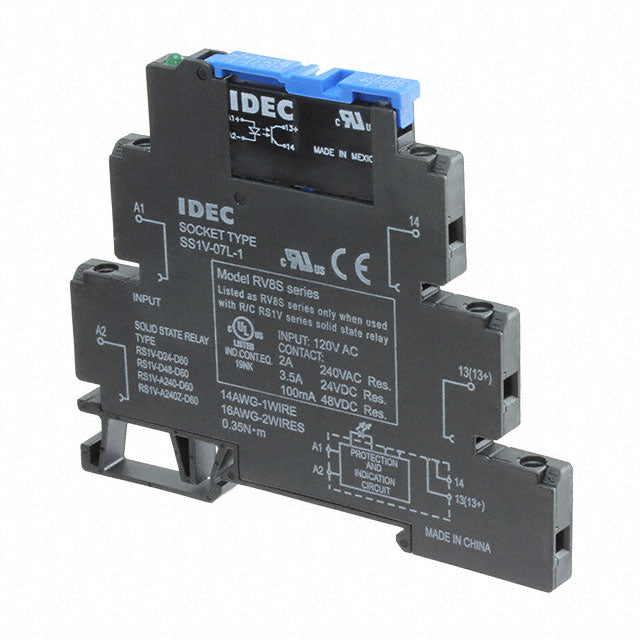

The IDEC RV8S-L-D24-D24 is a 6mm solid state relay, SPST-NO, designed for efficient switching in various electrical systems. It features a 24 VDC input and output, handling a rated current of 3.5 A. This compact relay is suitable for panel or DIN rail mounting, making it ideal for PLC and electronic systems, industrial automation, and assembly machine applications requiring high switching capability.

• SPST-NO contact form with 3.5 A load current and 0V to 24VDC output.
• Compact 6mm width with universal screw terminals for flexible installation.
• Operates within a temperature range of -20�C to +60�C and is RoHS compliant.

Product Highlights

Compact 6mm solid state relay with SPST-NO contacts, 24VDC input/output, and 3.5A current rating, suitable for industrial automation.

Product Information

Standard Information

• Brand: IDEC
• Manufacturer Part Number: RV8S-L-D24-D24

Technical Specifications

• Type: Photo-Coupled Relay (Photorelay)
• Width: 6mm
• Contact Form: SPST-NO (1 Form A)
• Application: General Purpose, PLC Interface
• Termination Style: Screw Terminal
• Input Voltage: 19.6 ~ 30VDC
• Current Rating: 3.5A
• Output Voltage: 0V ~ 24V
• Mounting Type: DIN Rail
• Number of Pins: 4
• Series: RV8
• Category: Relays
• Subcategory: Solid State Relays
• Operating Temperature: -20�C to 60�C
• Package Type: Module
• Certifications: CE, cULus
• Output Type: DC
• RoHS Status: RoHS3 Compliant
