Idec RV8H-S-AD24 relay spdt 250vac 125vdc 6a 6mm RV8HSAD24

Product Description

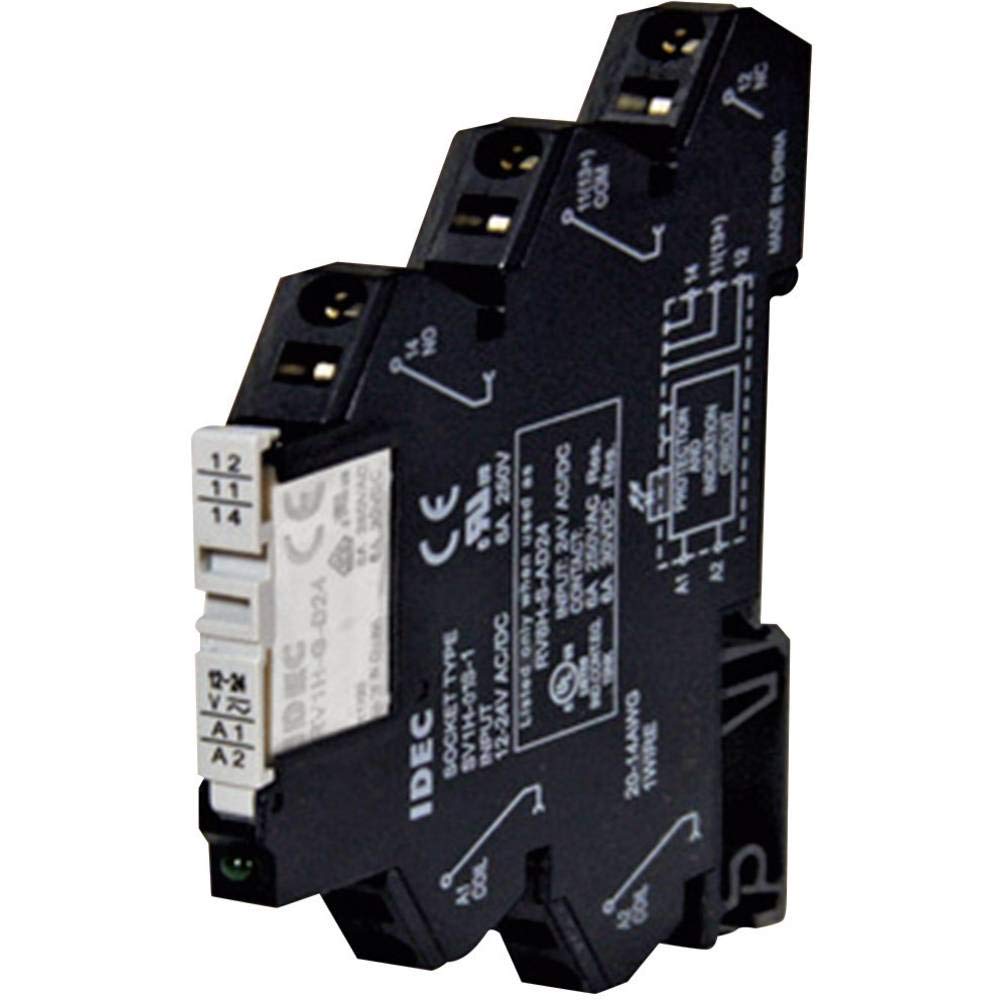

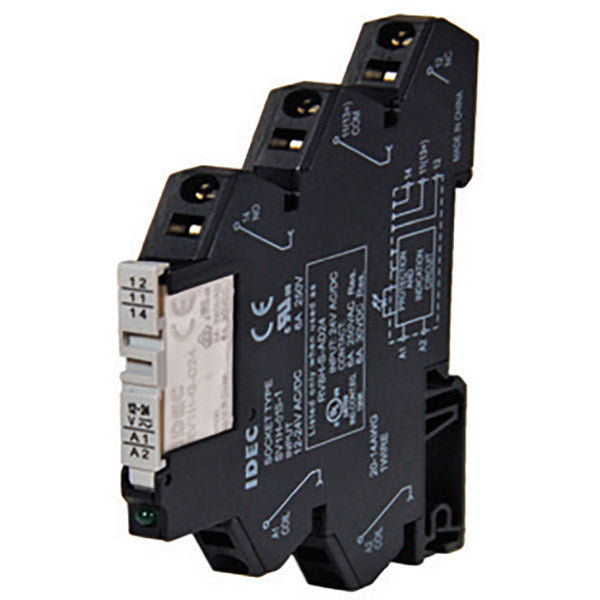

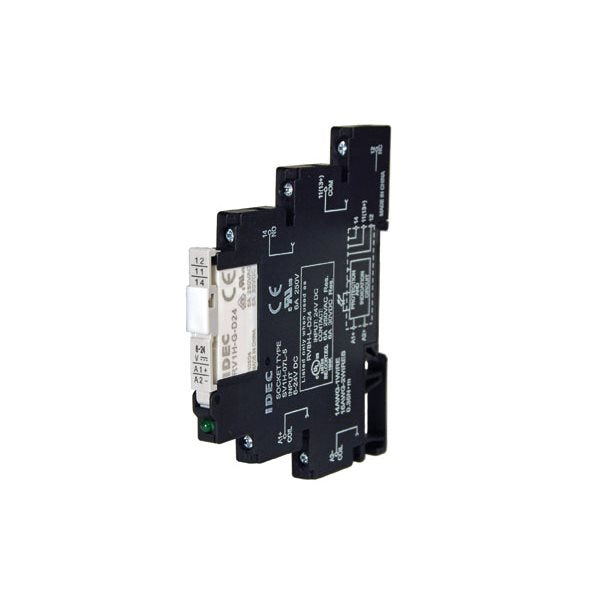

The IDEC RV8H-S-AD24 is a SPDT relay designed for DIN-35 rail mounting. It features a 24V AC/DC nominal coil voltage and a 6A contact current, suitable for various control applications. This non-latching relay operates with 250VAC and 125VDC maximum contact voltage, utilizing spring clamp terminals. Part of the RV8H Series, its compact 6mm width makes it ideal for industrial automation, HVAC, and energy management systems requiring high switching capability.

• SPDT Contact Configuration
• 24V AC/DC Nominal Coil Voltage
• 6A Maximum Contact Current

Product Highlights

Compact 6mm DIN-35 rail mountable relay with SPDT contacts, 24V AC/DC coil, and 6A current rating for industrial control.

Product Information

Standard Information

• Brand: IDEC
• Manufacturer Part Number: RV8H-S-AD24

Technical Specifications

• Contact Configuration: SPDT (Single Pole Double Throw), 1C/O, Form C
• Coil Voltage AC Range: 21.6-26.4Vac (24Vac nom.)
• Coil Voltage DC Range: 21.6-26.4Vdc (24Vdc nom.)
• Contact Current: 6A
• Series: RV8H Series
• Mounting Type: DIN-35 rail mounting
• Coil Type: Non Latching
• Max Contact Voltage AC: 250VAC
• Max Contact Voltage DC: 125V
• Terminals: Spring Clamp
• Approvals: UL File #E55996, RoHS, CE, cUL us
• Coil Resistance: 1.79kohm
• Type: Slim interface electromechanical relay
• Poles: 1-pole (1P)
• Max Allowable Contact Power: 1500 VAC, 180W DC Resistive
• Rated Load: 250 VAC 6A, 30 VDC 6A Resistive
• Contact Material: Gold-plated Silver-Nickel (AgNi/Au)
• Minimum Applicable Load: 6 VDC / 10mA
• Mechanical Durability (at no load): min. 10,000,000 operations (18,000 cycles/hour)
• Operating Temperature: -40 to 70 °C
• Operating Humidity: 5 to 85% non-condensing
• Contact Resistance: 50mΩ max
• Insulation Resistance: 1000MΩ min. (at 500Vdc)
• Dielectric Strength (Contacts to Coil): 4000Vac (1min)
• Dielectric Strength (Between Contacts): 1000Vac (1min)
• Response Time (OFF to ON): 15ms
• Response Time (ON to OFF): 20ms
• IP Rating: IP20
• Power Consumption: 0.33 W
• Electrical Life (NO Contact): min. 30,000 operations (rated load; 1800 cycles/hour)
• Electrical Life (NC Contact): min. 10,000 operations (rated load; 1800 cycles/hour)
