Idec RV2H-2G-D110 Relay Power DPDT 110VDC RV2H2GD110

Brand: IDEC
SKU: RV2H-2G-D110
Availability: Out Of Stock
$22.02
$22.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

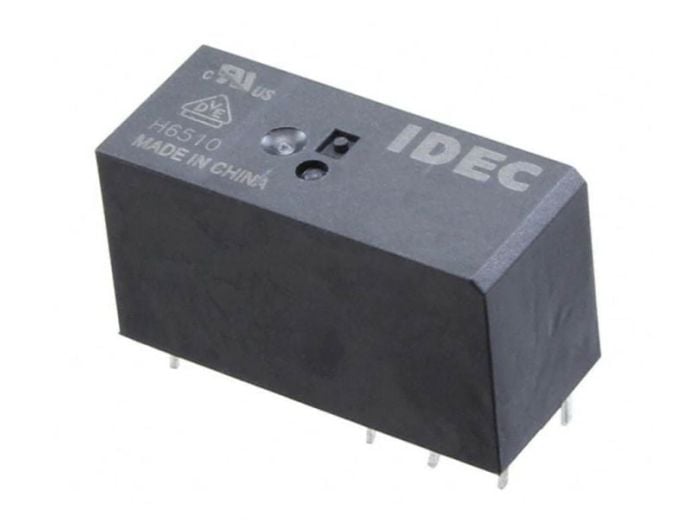

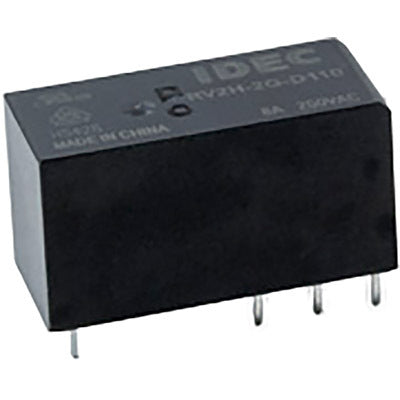

The IDEC RV2H-2G-D110 is a power relay with a DPDT contact form. This general purpose relay features a coil voltage of 110 VDC and a contact current rating of 8 A at 250VAC. Designed for PCB mounting, it is part of the RV2H Series. It is suitable for higher load switching applications and panels with high I/O content.

  • Lever for easy locking and removal of relay
  • Universal AC/DC socket with built-in surge suppression and green LED
  • 6A-16A contact rating

Product Highlights

The IDEC RV2H-2G-D110 power relay is ideal for applications requiring a compact and reliable switching solution.

Product Information

Standard Information

  • Brand: IDEC
  • Manufacturer Part Number: RV2H-2G-D110
Technical Specifications
Manufacturer
IDEC
Brand
Idec
Model / MPN
RV2H-2G-D110
MPN
RV2H-2G-D110
Product Type
ELECTRONIC_COMPONENT
Coil Voltage
110 VDC
Contact Current Rating
8 A
Contact Form
DPDT
Contact Voltage Rating
300 V
Control Voltage
110 V
Current Rating
8 A
Mounting Type
PCB
Primary Type
Power Relays
Relay Type
General Purpose
Series
RV2H Series
Product Series
RV
Family Series
IDEC Relays, RV Series
Description
Low Profile 14mm 2C relay 110V
Contacts
DPDT
Termination
PCB Pin
Nominal Coil Voltage
125 VDC
Main function
Relay
Product series / family name
RV8 (14mm) Series
Functions
Slim interface electromechanical relay
Poles
2-poles (2P)
Rated current
8A (resistive load; 250Vac)
Rated voltage (AC)
5000Vac (1min) dielectric strength between contacts and coil 2500Vac (for 1 min.; dielectric strength; between contacts of different poles) 1000Vac (1min) dielectric strength between contacts of the same pole
Control Voltage (DC)
88-121Vdc (110Vdc nom.)
Mounting mode
Plug-in mounting on DIN-35 rail sckt.
Response time
(OFF=>ON switching; max.) 15ms / 0.015 s (ON=>OFF switching; max.) 15ms / 0.015 s
Contacts type
2C/O / DPDT (Double Pole Double Throw) contact
Degree of protection
IP20
Ambient air temperature for operation
-40...+70 °C
Electrical durability (with load)
(AC load; frequency 360 cycles/hour) min. 100 000 operations
Mechanical durability (at no load)
(18 000 cycles/hour) min. 10 000 000 operations
Manufacturer product status
Commercialized
Equivalent to
RV2H2GD110
Compliant with standard(s)
cUL us CE
Contacts coating
Gold-plated Silver-Nickel (AgNi/Au)
