Idec RJ2S-C-D24 slim power relay 24VDC (10 pack) RJ2S-C-D24

Product Description

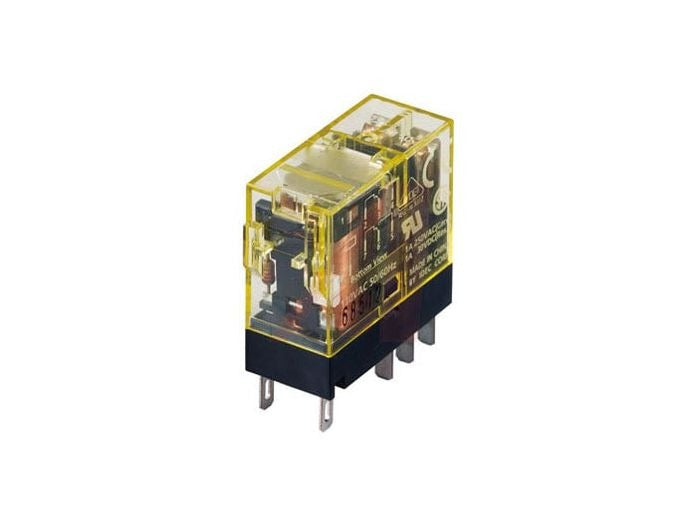

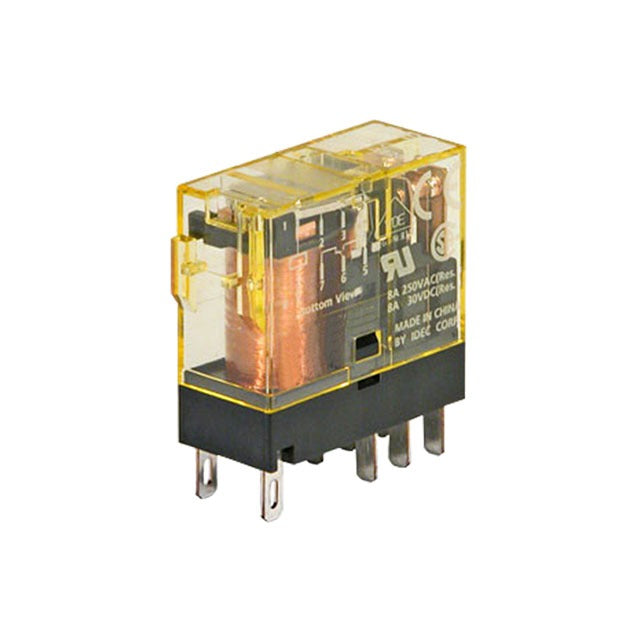

IDEC RJ2S-C-D24 is a DPDT electromechanical power relay with a 24 VDC non-latching coil. It provides two Form C contacts rated 8 A and contact voltage ratings of 250 VAC and 30 VDC, with silver-nickel contact material. The relay is socket/plug-in mountable with quick-connect blade terminals, measures about 28.8 x 12.7 x 33 mm and weighs approximately 18 g, suitable for industrial control and switching applications.

• DPDT (2 Form C) contact configuration; contact rating 8 A; contact voltages 250 VAC / 30 VDC
• 24 VDC non-latching coil; coil resistance ~1.08 kOhm; coil current ~22.1 mA
• Socket/plug-in mounting with quick-connect (0.187 inch flat blade) terminals; silver-nickel contacts; RoHS compliant

Product Highlights

Compact socketable DPDT relay, 24 VDC coil, 8 A contacts, RoHS compliant

Product Information

Standard Information

• Brand: IDEC
• Manufacturer Part Number: RJ2S-C-D24
• Country of Origin: China
