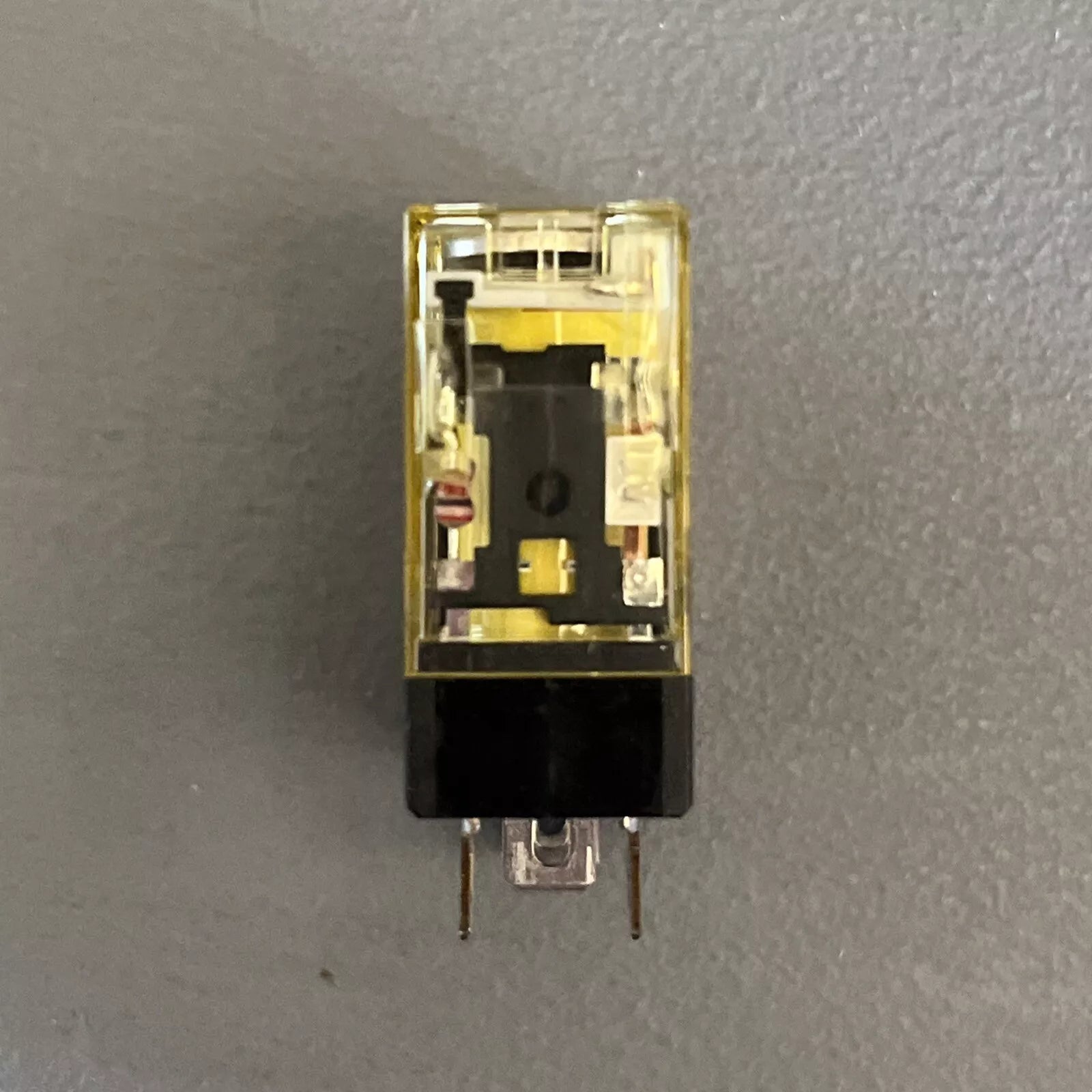

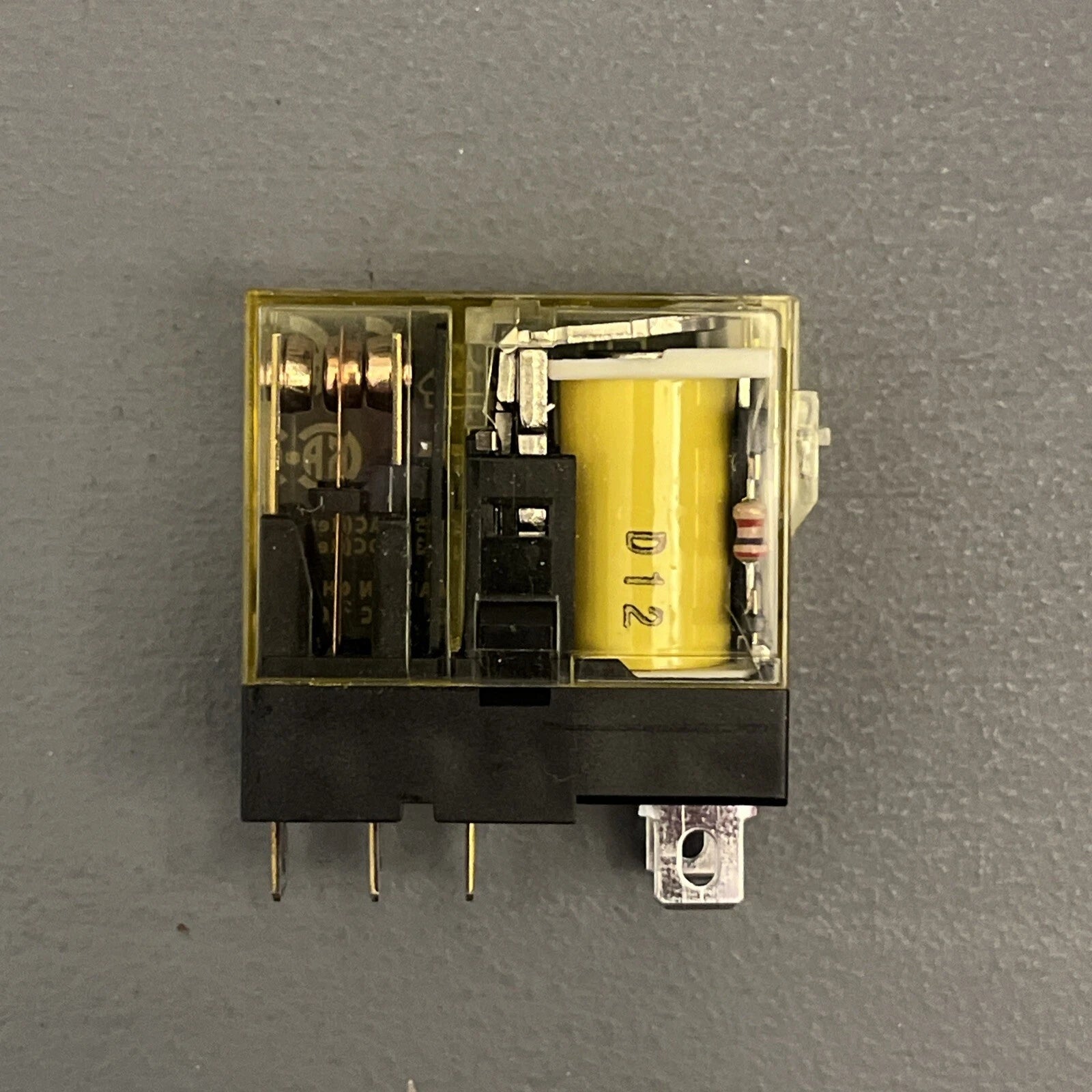

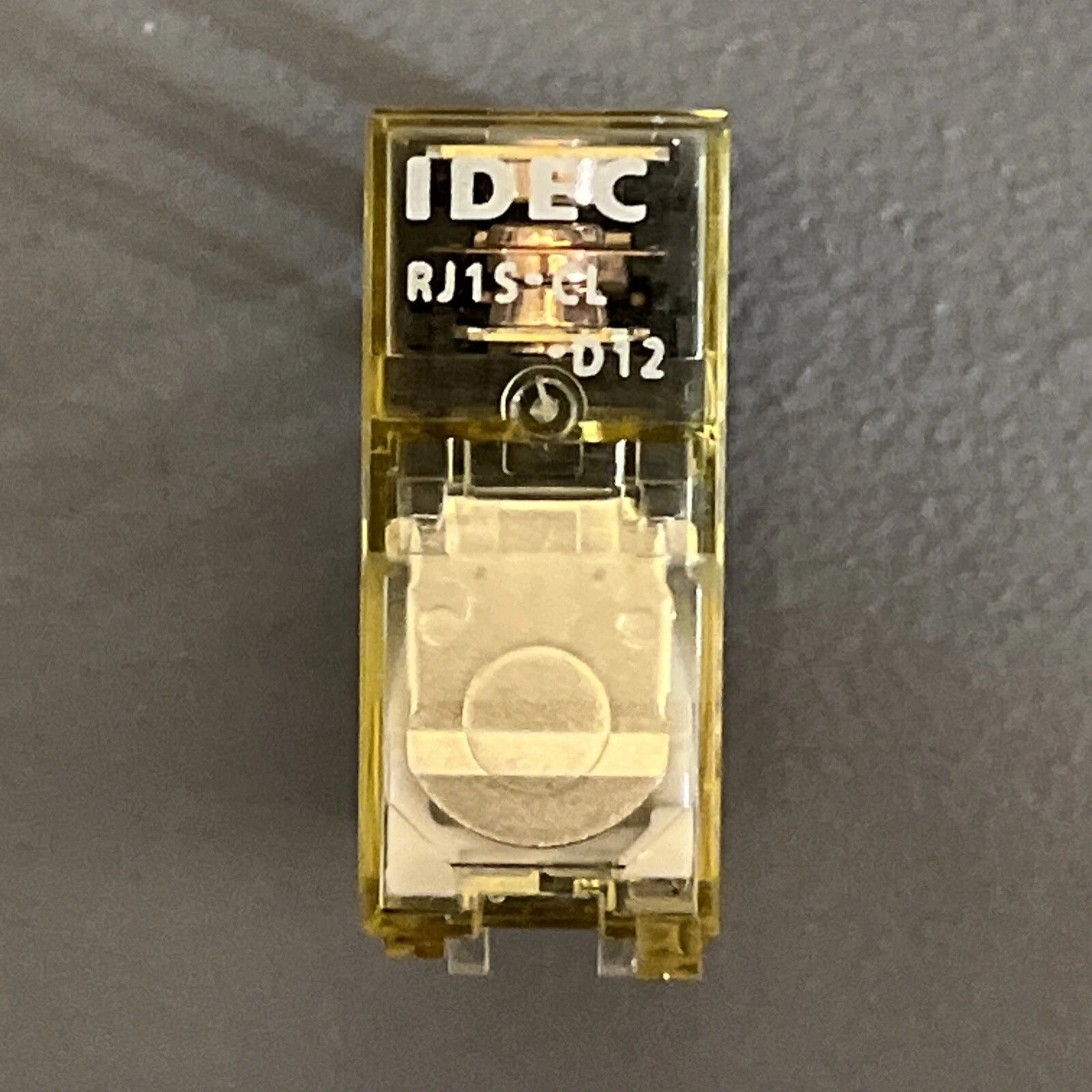

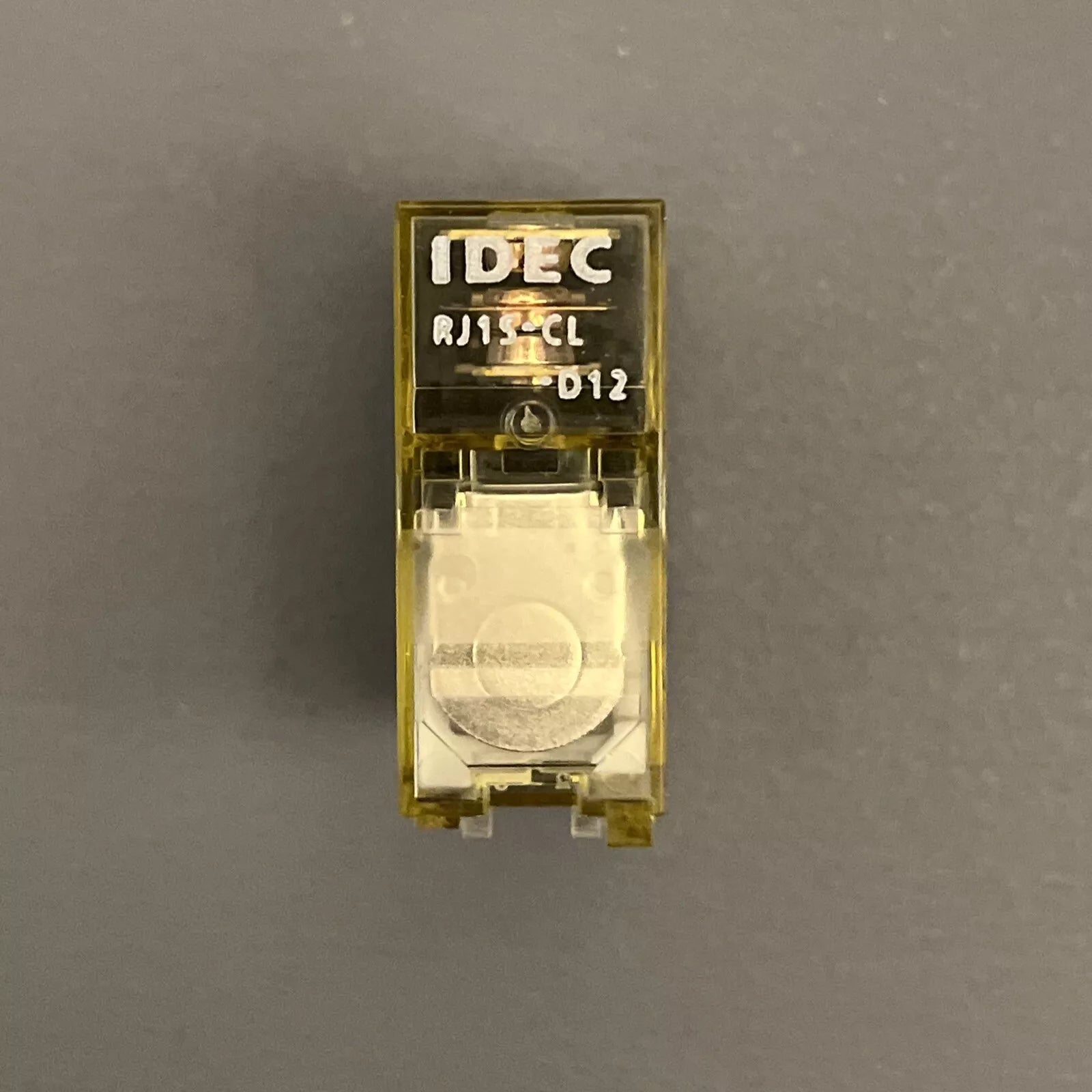

IDEC RJ1S-CL-D12 SPDT Slim Power Relay

Product Description

The IDEC RJ1S-CL-D12 is a slim power relay designed for general-purpose applications.

• SPDT contact configuration
• 12VDC coil voltage
• 12A switching current

Product Highlights

This relay features a single pole, double throw contact configuration for versatile control. With a coil voltage of twelve volts DC, it manages switching currents up to twelve amps, making it suitable for various electrical systems. Ideal for blade mounting, it allows easy installation in compact spaces.

Product Information

Standard Information

• Brand: IDEC
• MPN: RJ1S-CL-D12

Technical Specifications

• Product Type: Slim Power Relay
• Number of Poles: 1
• Contact Configuration: 1c
• Terminal Shape: Plug in Terminal
• Contact Structure: Single Contact
• Switching Current Range: 12A
• Input Voltage: 12VDC
• Current Type: DC
• Contact Material: Brass, Bronze
• Finish: Bronze
• Mounting Style: Screw
• Amp Rating: 12 Amp
• Mounting: Blade
• Poles: 1 Pole
• Series: RJ Series
• Weight: 0.1
