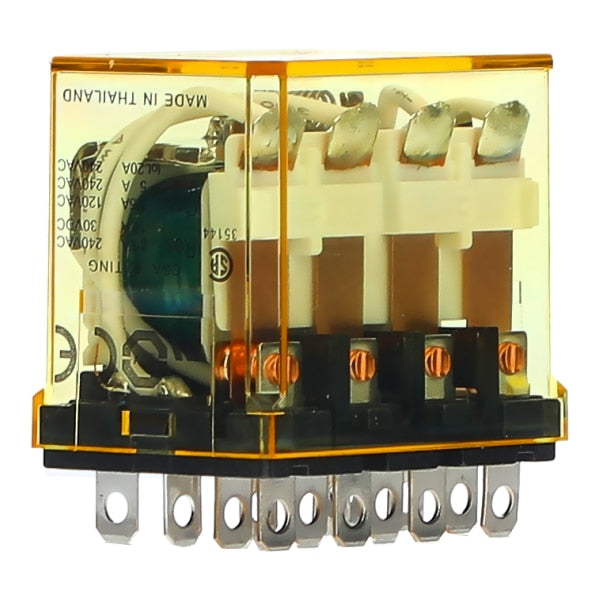

IDEC RH4B-ULAC120V RH Power Relay, 10 Amps

Product Description

The IDEC RH4B-ULAC120V is a power relay designed for compact electromechanical applications. This relay features a contact capacity of ten amps, making it suitable for a variety of electrical control tasks. The device operates on a coil voltage of one hundred twenty volts alternating current and utilizes a four-pole double-throw configuration.

• Compact electromechanical design for space-saving installations.
• Ten amp contact capacity with a four-pole double-throw contact form.
• Operating temperature range of minus twenty-five to seventy degrees Celsius.

Product Highlights

This relay is ideal for industrial control applications where reliability and compactness are key. It is suitable for both heavy-duty switching operations and general-purpose use.

Product Information

Standard Information

• Brand: IDEC
• MPN: RH4B-ULAC120V

Technical Specifications

• Amperage Rating: 10 A
• Coil Voltage: 120 VAC
• Contact Form: 4PDT
• Dimensions: 35.6 mm H x 27.5 mm W x 41 mm D
• Frequency Rating: 50/60 Hz
• Power Rating: 2.5/2 VA
• Temperature Rating: -25 to 70 deg C
• Type: Compact Electromechanical
• Standards/Approvals: cURus Listed, CSA Certified, CE Marked, TUV Certified
• Terminal Type: Plug-In/Blade
